Control Module

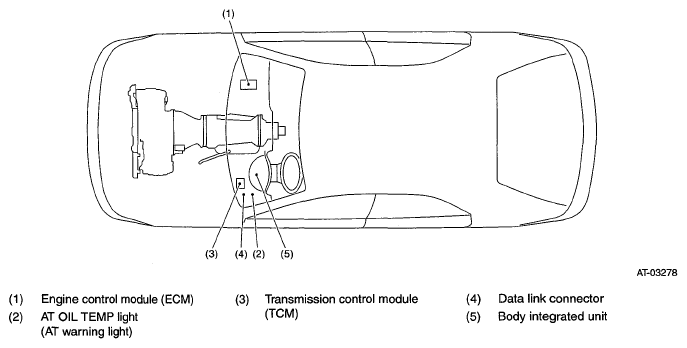

Fig 1: Identifying Control Modules Location (1 Of 2)
G05671194Courtesy of SUBARU OF AMERICA, INC.

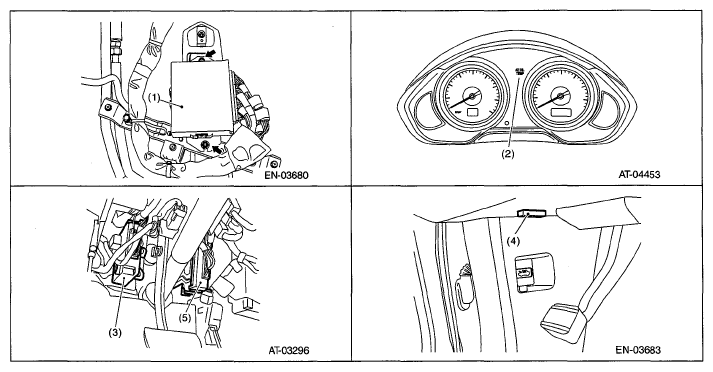

Fig 2: Identifying Control Modules Location (2 Of 2)
G05671195Courtesy of SUBARU OF AMERICA, INC.
