Propeller Shaft

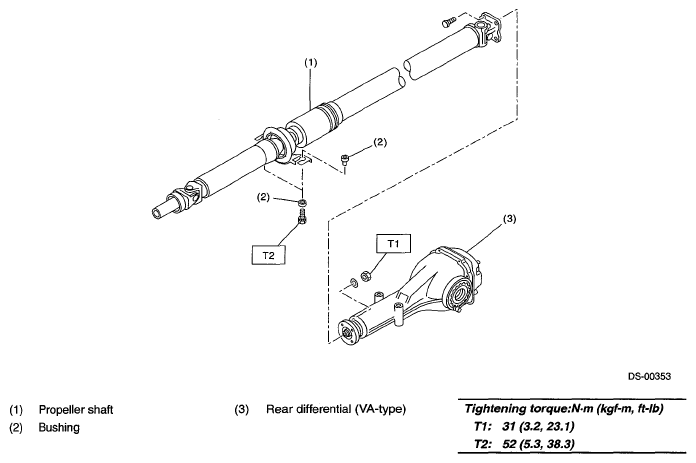

Fig 1: Propeller Shaft Component With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
