Malfunction Indicator Light Does Not Go Off: Wiring Diagram

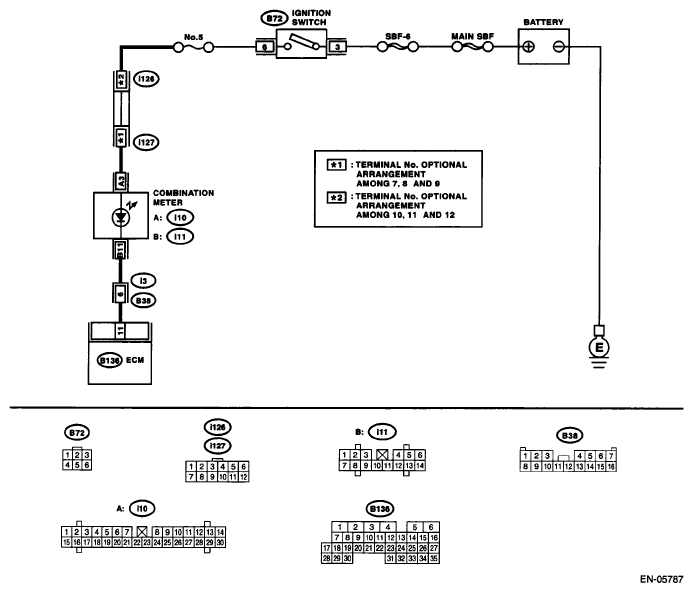

Fig 1: Identifying Malfunction Indicator Light Does Not Go Off Wiring Diagram
G05664049Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSIS PROCEDURE

Step Check Yes No
1 CHECK HARNESS BETWEEN ECM AND COMBINATION METER CONNECTOR.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connectors from the ECM.
  3. Turn the ignition switch to ON.
 Does the malfunction indicator light illuminate? Repair the short circuit of harness between combination meter and ECM connector. Replace the ECM. <Ref. to ENGINE CONTROL MODULE (ECM) .>
