Control Valve & Transmission Harness

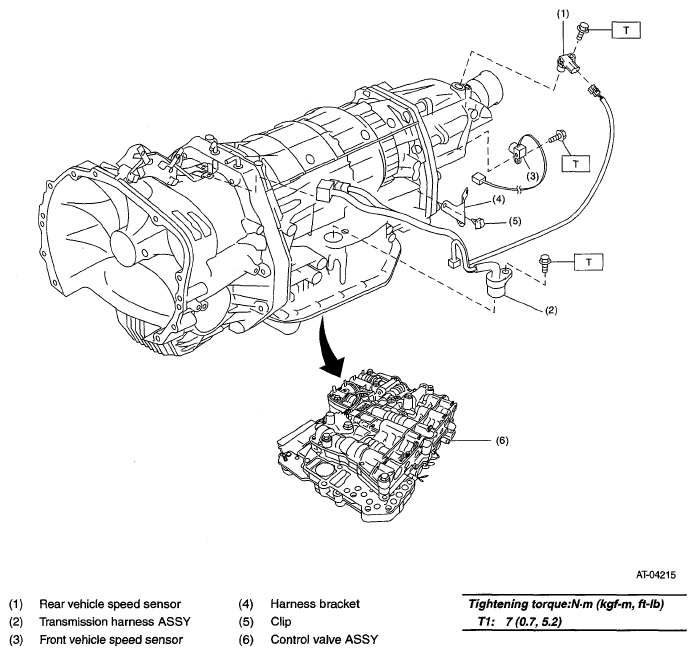

Fig 1: Control Valve And Transmission Harness Component With Torque Specification
G05670887Courtesy of SUBARU OF AMERICA, INC.
