Differential Gear

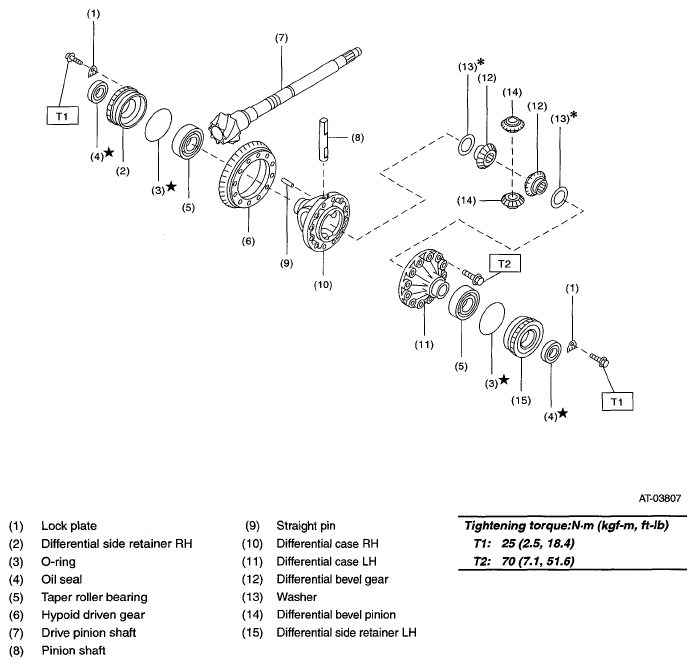

Fig 1: Exploded View Of Differential Gear With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
