Transmission Control Device & Parking Support

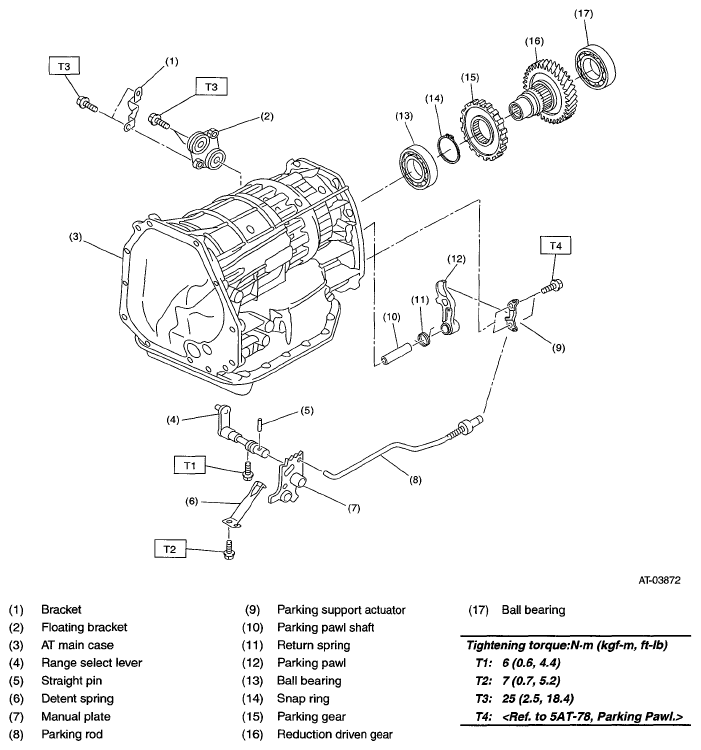

Fig 1: Transmission Control Device And Parking Support Component With Torque Specification
G05670891Courtesy of SUBARU OF AMERICA, INC.
