Communication for Initializing Impossible

Diagnostic Procedure for Subaru Select Monitor Communication

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DIAGNOSIS:

Defective harness connector

TROUBLE SYMPTOM:

Subaru Select Monitor communication failure

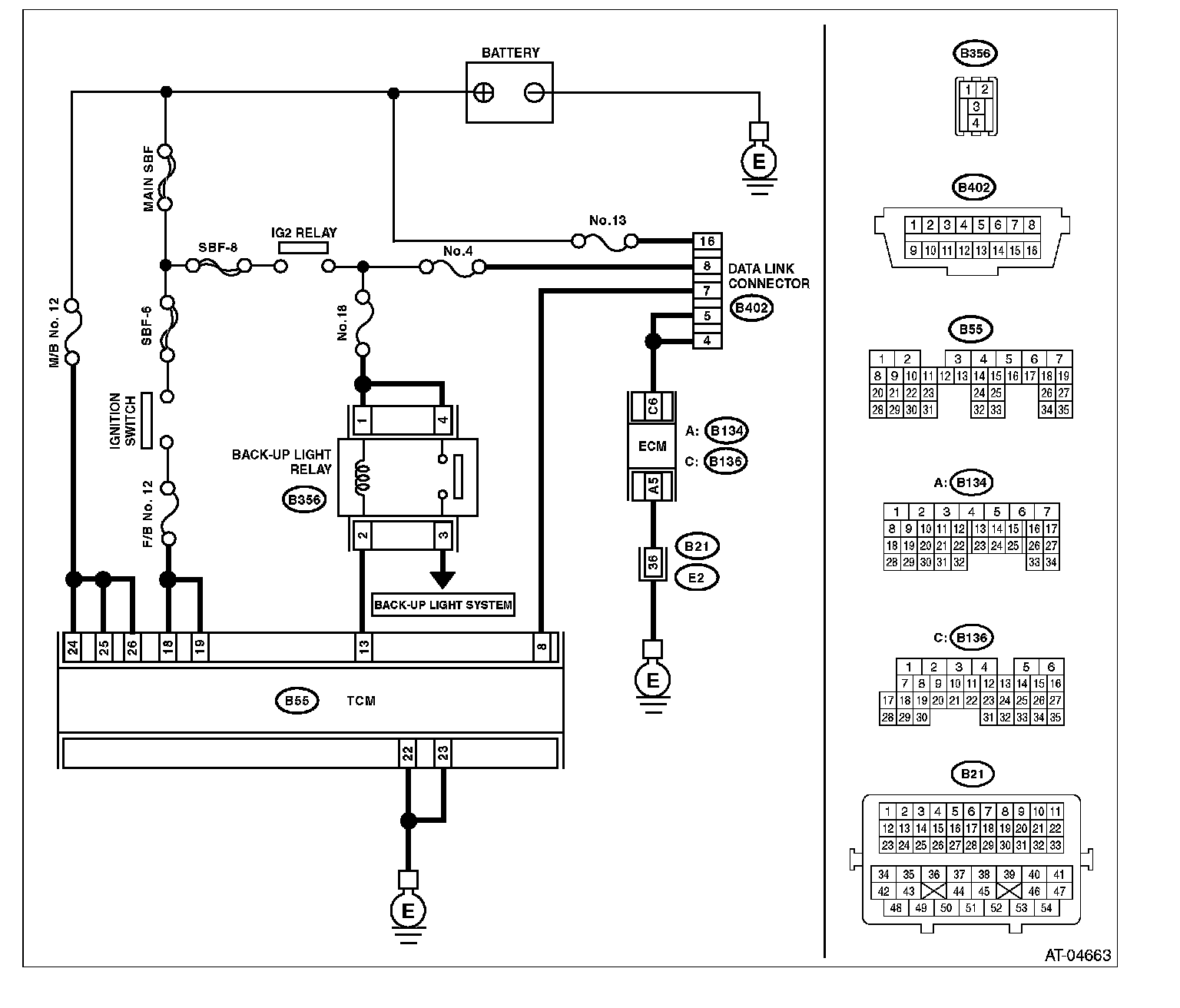

WIRING DIAGRAM:

WIRING DIAGRAM:

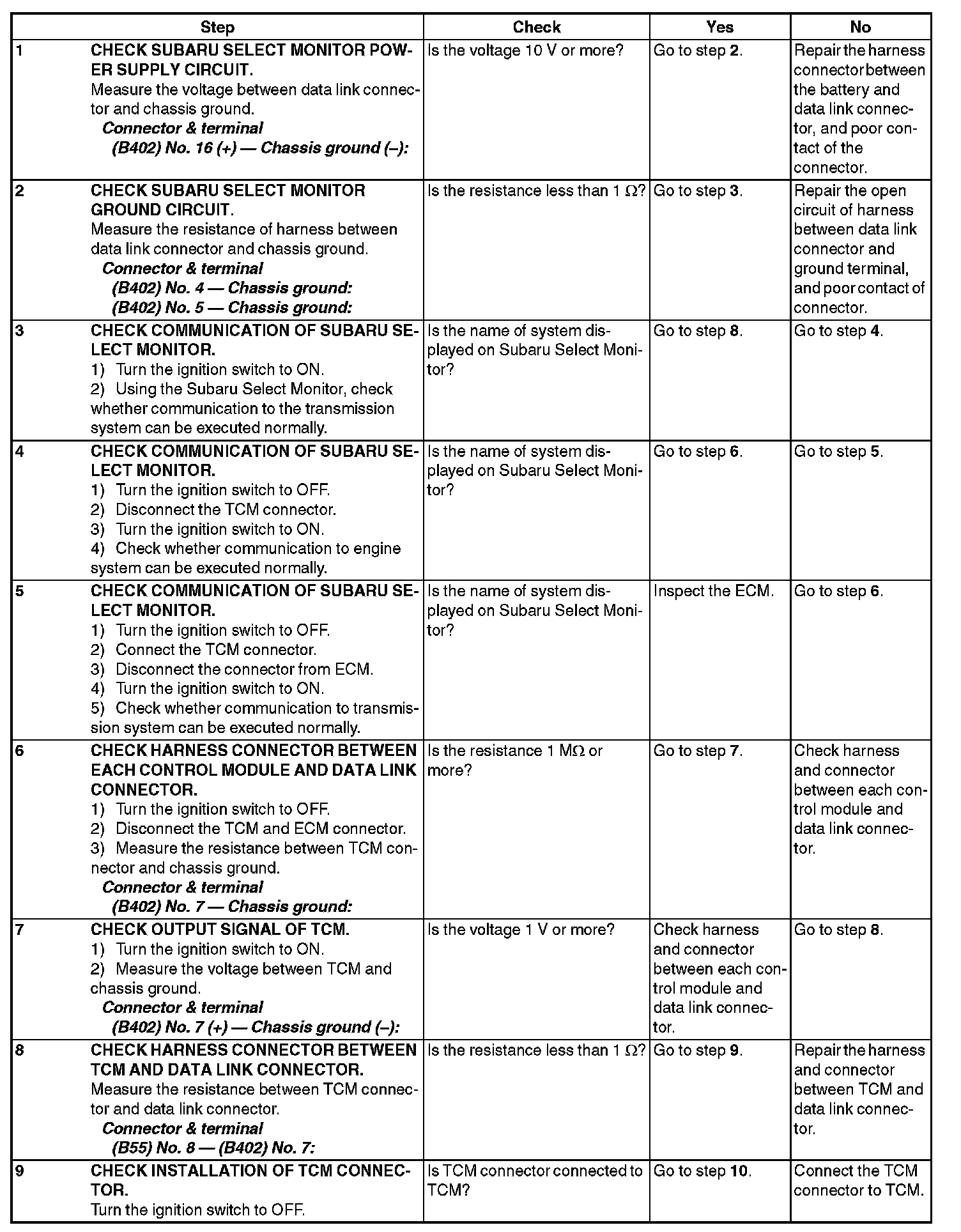

Step 1-Step 9:

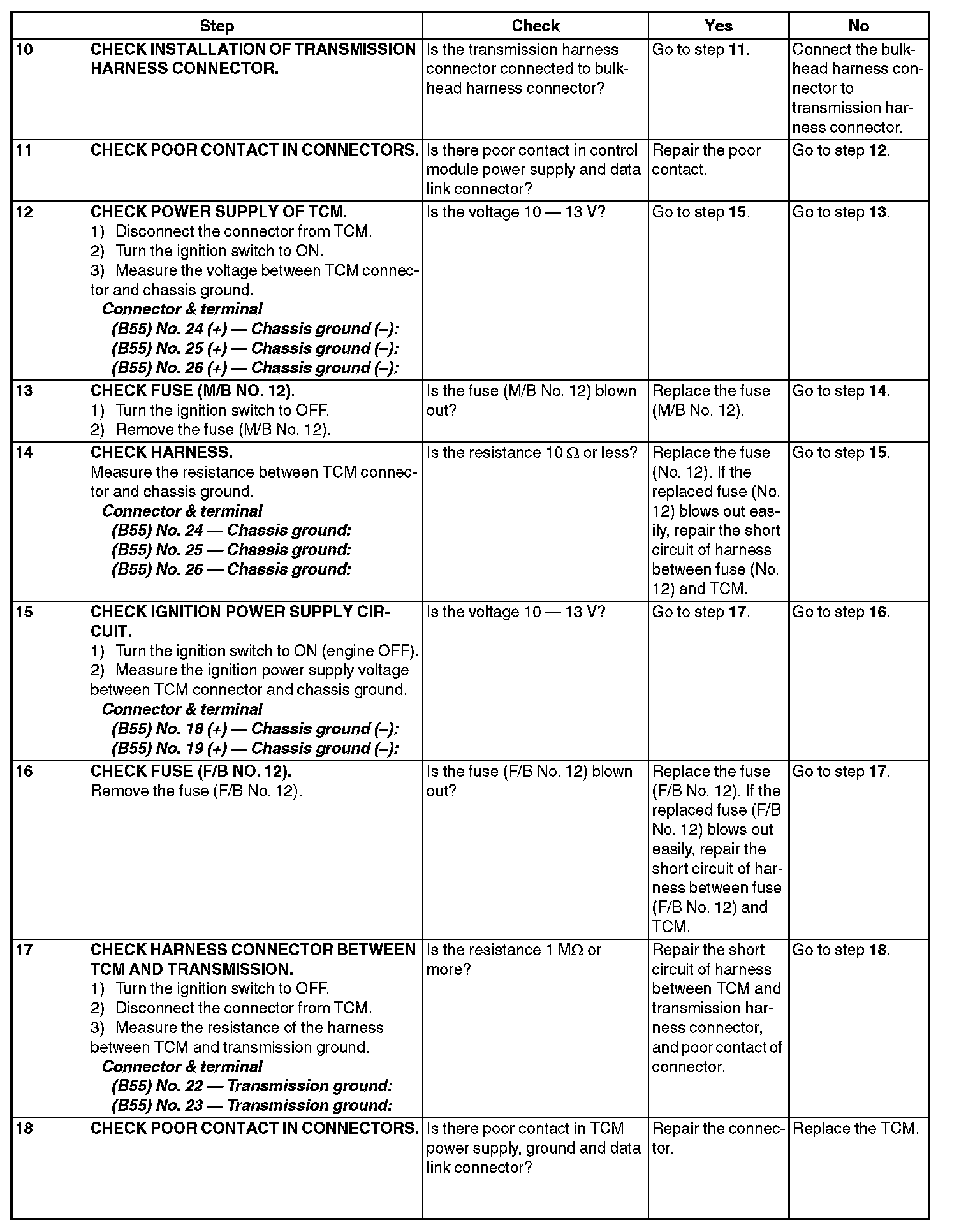

Step 10-Step 18:
