Power Window Switch: Testing and Inspection

POWER WINDOW CONTROL SWITCH

INSPECTION

1. MAIN SWITCH
1. Remove the main switch.

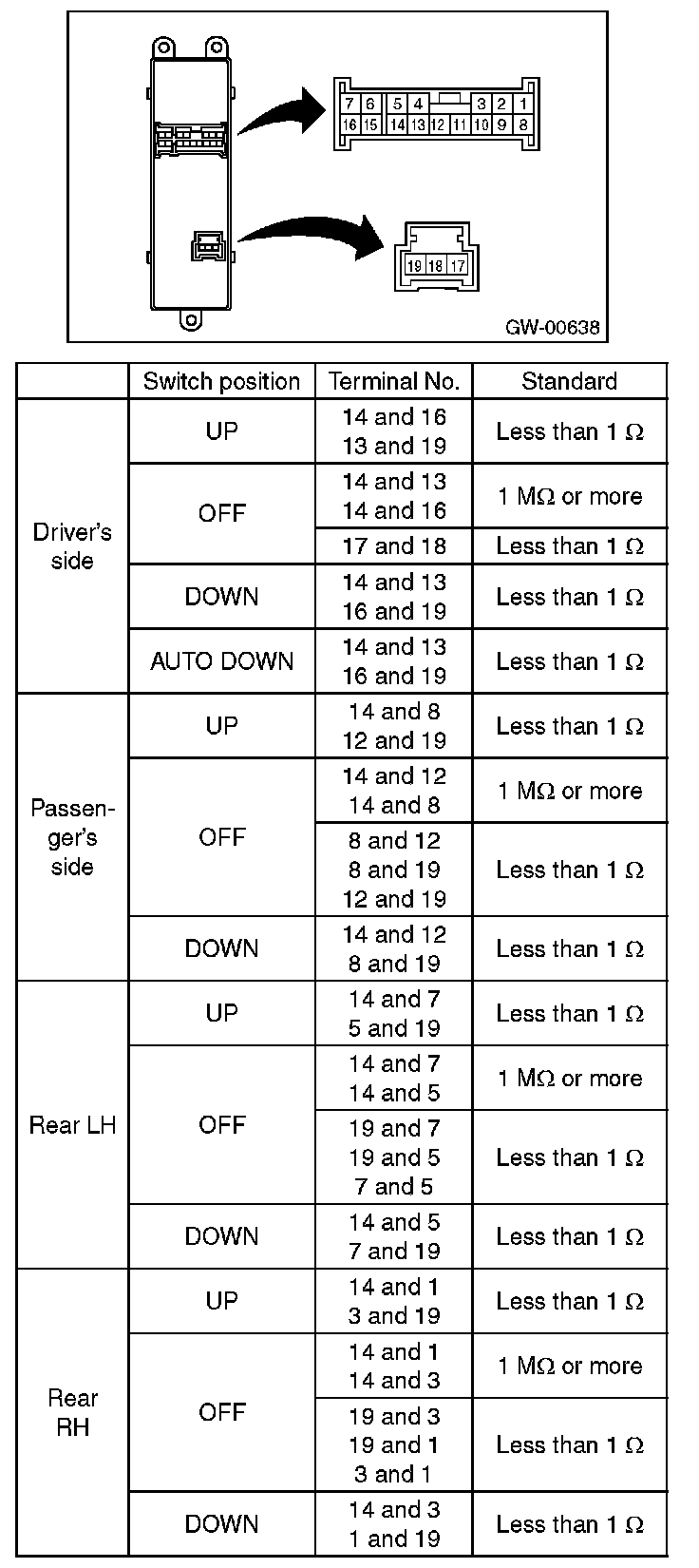

2. Measure the resistance between main switch terminals.







Replace the main switch if faulty.

2. SUB-SWITCH
1. Remove the sub-switch.
2. Measure the resistance between sub switch terminals.







Replace the sub-switch if faulty.
