Fuel Tank: Installation

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

Fig 1: Locating Fuel Tank Bolts
Courtesy of SUBARU OF AMERICA, INC.
Securely insert the fuel filler hose (A) and evaporation hose (B) into the specified position, then attach the clamp and clip as shown in the figure.

Fig 2: Identifying Fuel Filler Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Hose, Clip And Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the quick connector of the evaporation hose to the evaporation pipe.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean seal surface of pipe.
- When connecting the quick connector, insert the pipe all the way in securely, then operate the push lock.
- If it is not possible to perform the push lock operation of the retainer, recheck whether the pipe is securely inserted.
- Confirm that the quick connector is securely connected.
Fig 4: Connecting Quick Connector Of Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect evaporation hose (B) to connector (A).

Fig 6: Identifying Evaporation Hose And Connector
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel tank band bolts in the order shown in the figure.

Fig 7: Locating Fuel Tank Band Bolts
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)
Install the rear suspension assembly.
WARNING: A helper is required to perform this work.
1. Support the rear differential with the transmission jack.
2. Support the rear suspension assembly, and tighten the bolts which secure the rear suspension assembly to the body.
  Tightening torque:

  T1: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

  T2: 145 N.m (14.8 kgf-m, 106.9 ft-lb)

  Fig 8: Identifying Rear Suspension Assembly With Tightening Torque
  Courtesy of SUBARU OF AMERICA, INC.
3. Tighten the bolts which hold the rear shock absorber to the rear suspension arm.
  Tightening torque:

  120 N.m (12.2 kgf-m, 88.5 ft-lb)

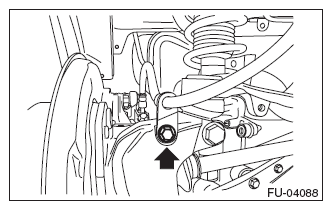

  Fig 9: Locating Rear Shock Absorber Bolt
  Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle height sensor and connect the connector to rear vehicle height sensor. (models with auto headlight beam leveler, left side only)

Fig 10: Locating Rear Vehicle Height Sensor Bolt
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
Install the rear vehicle height sensor connector. (Left side only)
Connect canister drain hose (B) to canister drain connector (A).

Fig 11: Identifying Drain Hose From Canister Drain Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the parking brake cable clamp to the body.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 12: Locating Parking Brake Cable Clamp
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the rear ABS wheel speed sensor.

Fig 13: Locating Rear ABS Wheel Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the fuel tank protector.
Tightening torque:

Nut: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

Bolt: 18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the propeller shaft. Refer to INSTALLATION
Install the rear exhaust pipe and muffler
Refer to INSTALLATION
Lower the vehicle.
Connect the parking brake cable to the parking brake assembly. Refer to INSTALLATION
Install the rear disc brake assembly.
Tightening torque:

66 N.m (6.7 kgf-m, 48.7 ft-lb)

Fig 14: Locating Rear Disc Brake Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear brake hose bracket to the rear housing.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 15: Locating Rear Brake Hose Bracket And Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the rear ABS wheel speed sensor to the rear housing
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 16: Locating Rear ABS Wheel Speed Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the rear wheels.
Tightening torque:

100 N.m (10.2 kgf-m, 73.8 ft-lb)
Connect quick connector of the fuel delivery tube (A). Refer to INSTALLATION

Fig 17: Identifying Quick Connector On Fuel Delivery Tube
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

Fig 18: Identifying Service Hole Cover Of Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of the fuel pump, and install the connector and clip.

Fig 19: Identifying Connector, Clip Bolt And Grommet
Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. Refer to INSTALLATION
Connect the ground cable to the battery.

Fig 20: Disconnecting Ground Cable Of Battery
Courtesy of SUBARU OF AMERICA, INC.
Inspect the wheel alignment and adjust if necessary.
Perform reinitialization of the auto headlight beam leveler system. (model with auto headlight beam leveler) Refer to PROCEDURE
