Transfer And Extension Case

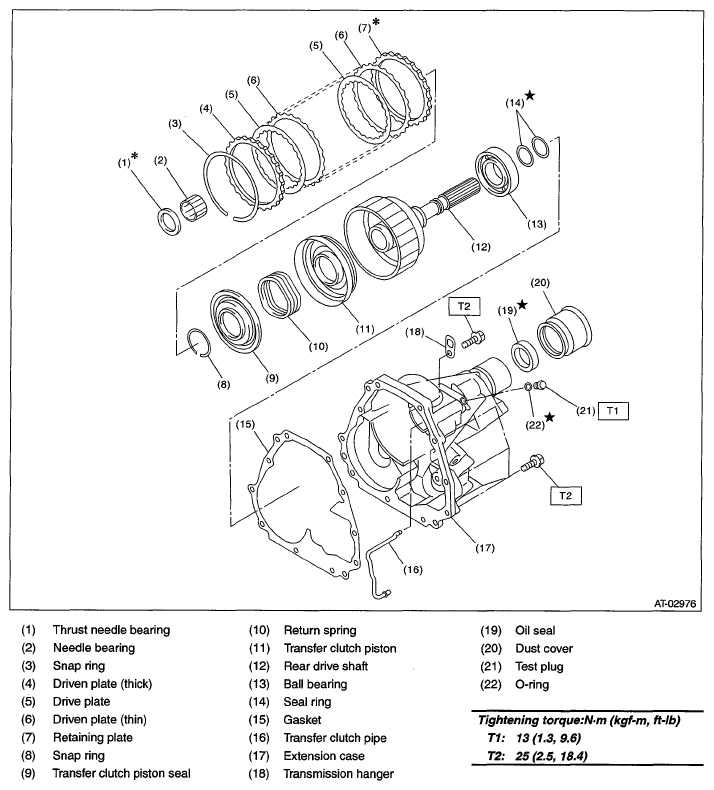

Fig 1: Exploded View Of Transfer And Extension Case With Torque Specifications
G05955882Courtesy of SUBARU OF AMERICA, INC.
