Skid Plate: Service and Repair

FLOOR UNDER PROTECTOR

Floor Under Protector:

REMOVAL

1. Lift up the vehicle.

NOTE: A plate type lift cannot be used.

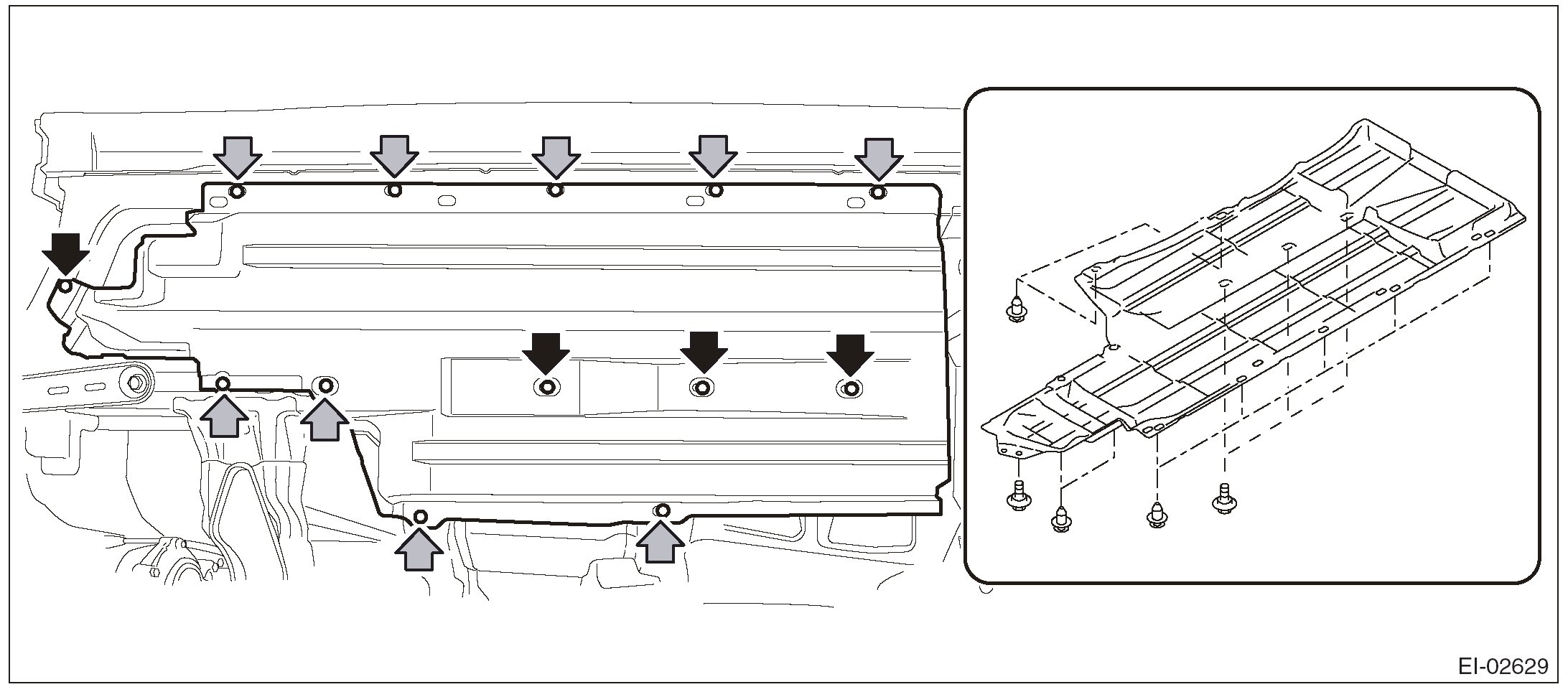

2. Remove the bolts and clips, and remove the front under protector.







INSTALLATION

Install each part in the reverse order of removal.

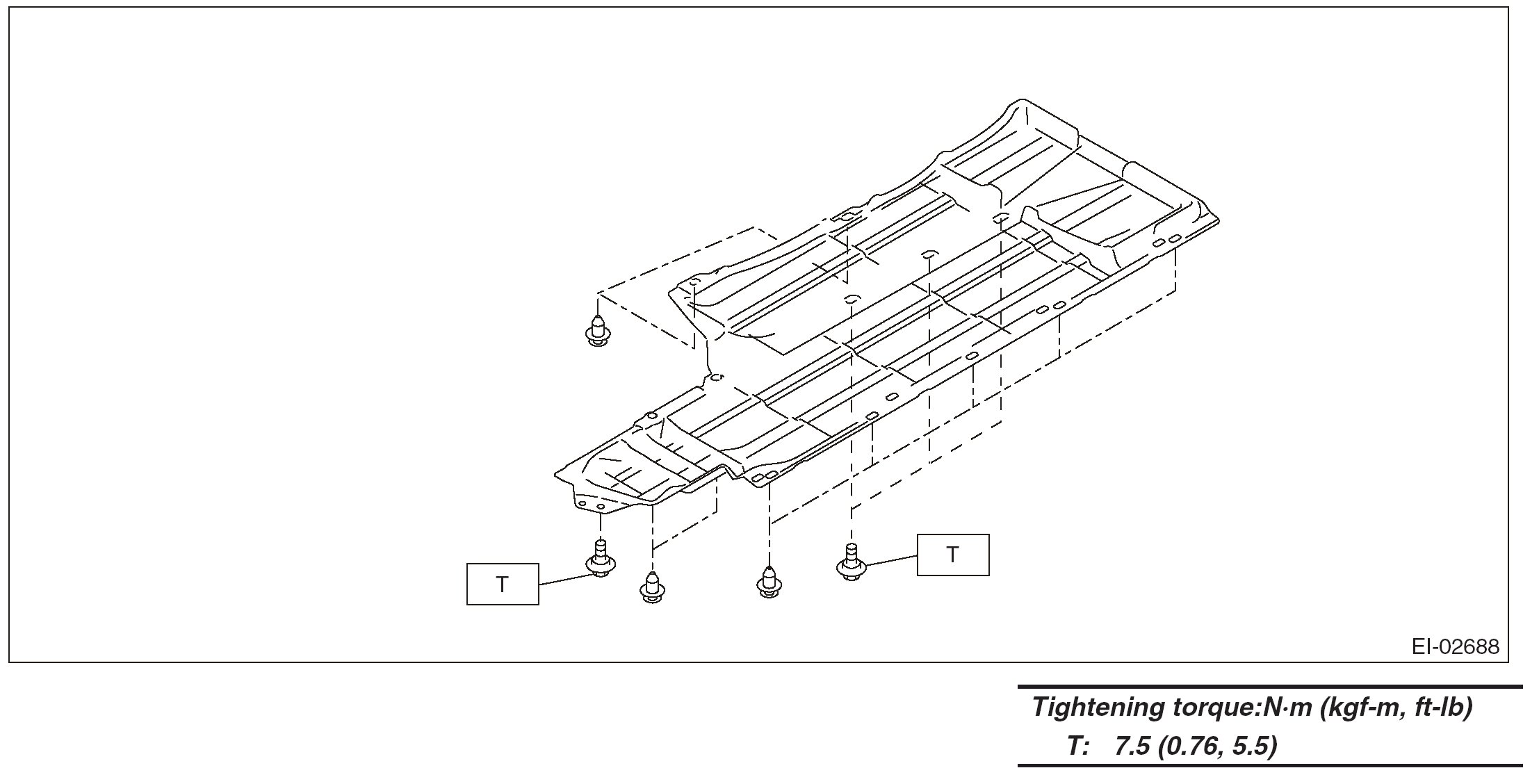

Tightening torque: Refer to "COMPONENT" of "General Description". [Ref. to FLOOR UNDER PROTECTOR, COMPONENT, General Description.]
