Connector Locations
>>
R16-R351 & AB31-AB34
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
R16-R351 & AB31-AB34
Rear Wiring Harness and Trunk Lid Cord

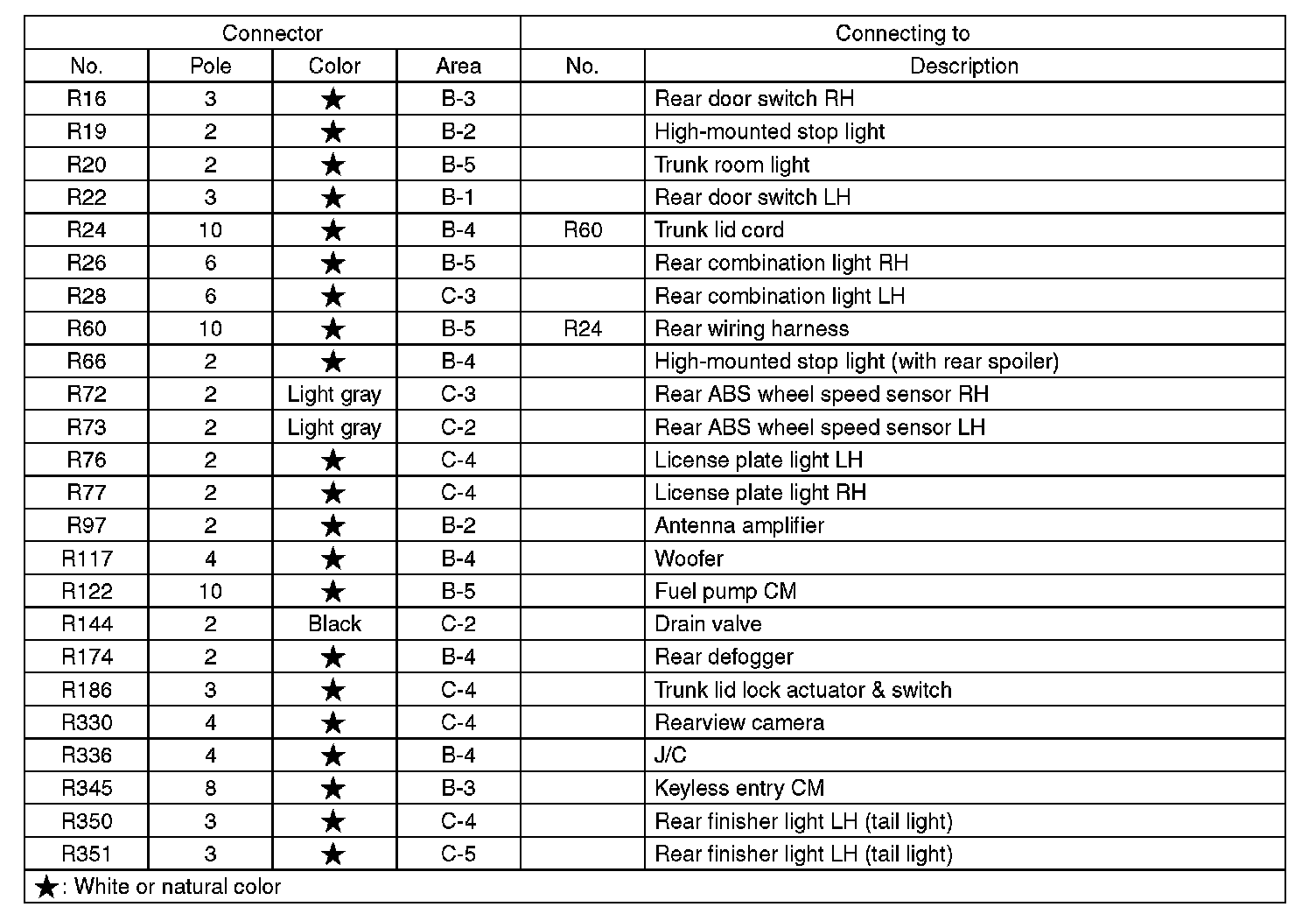

R16-R351:
AB31-AB34:

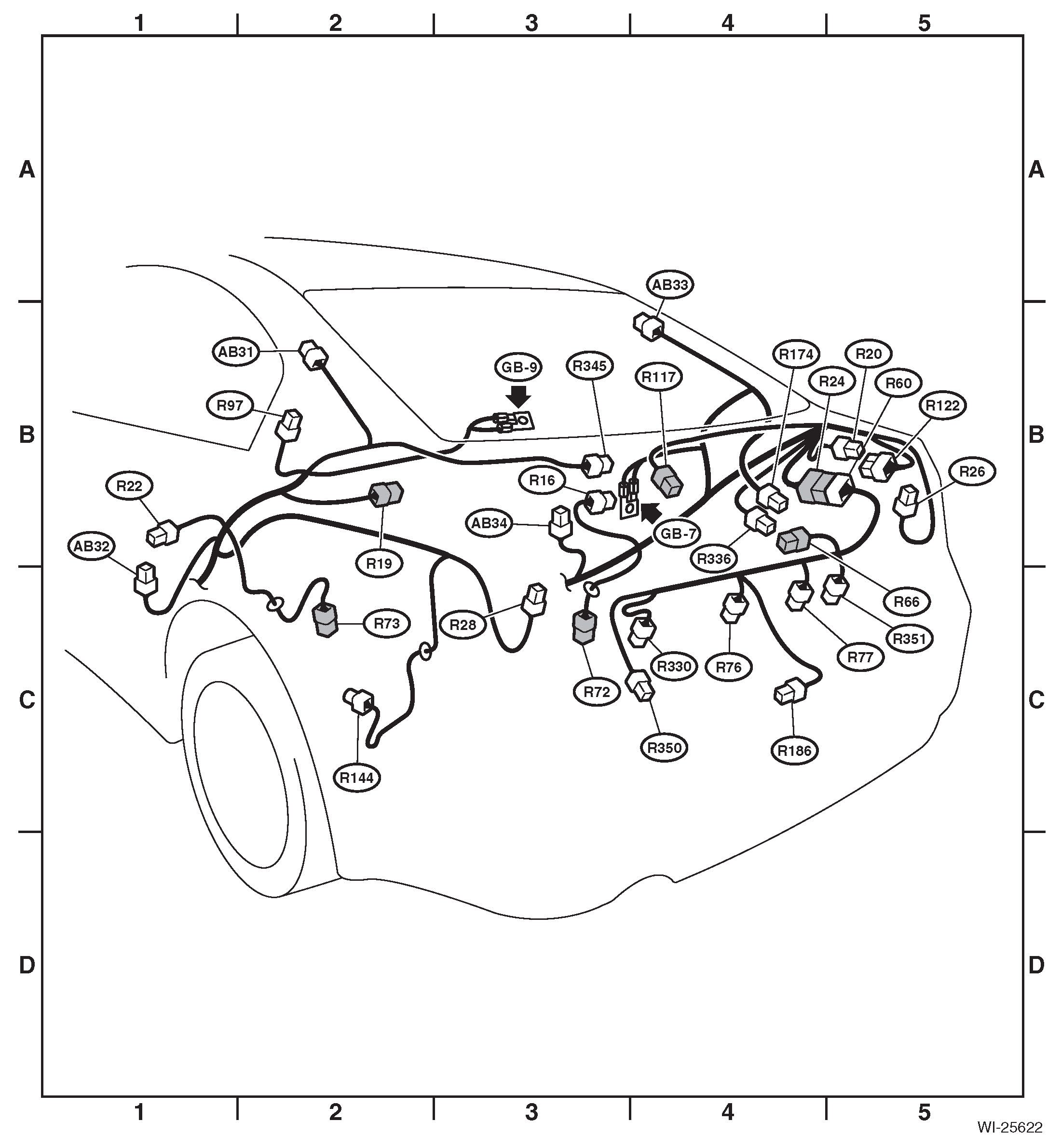

Area View:
