R9-R387 & AB17-AB61

Rear Wiring Harness

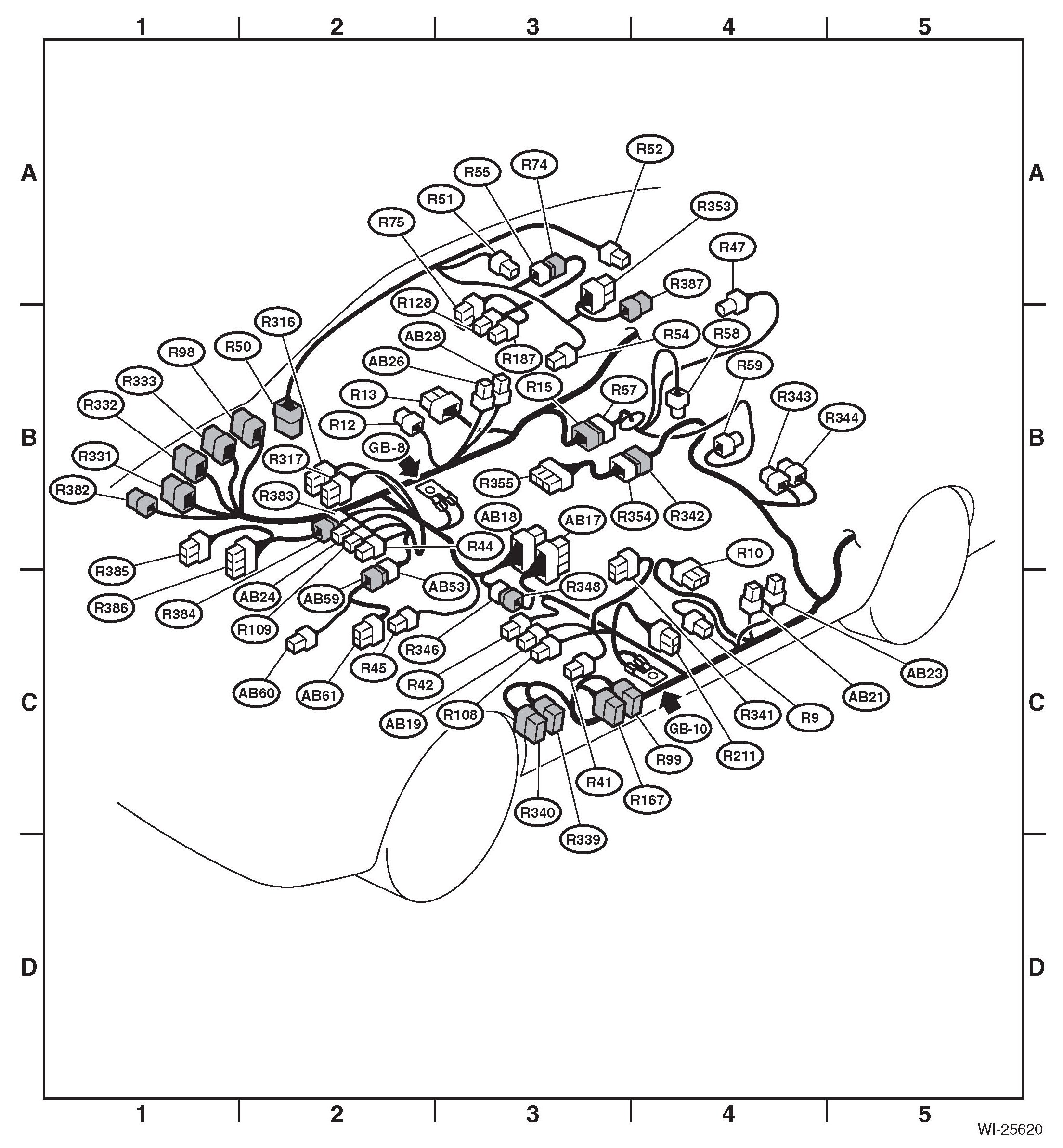

SEDAN MODEL

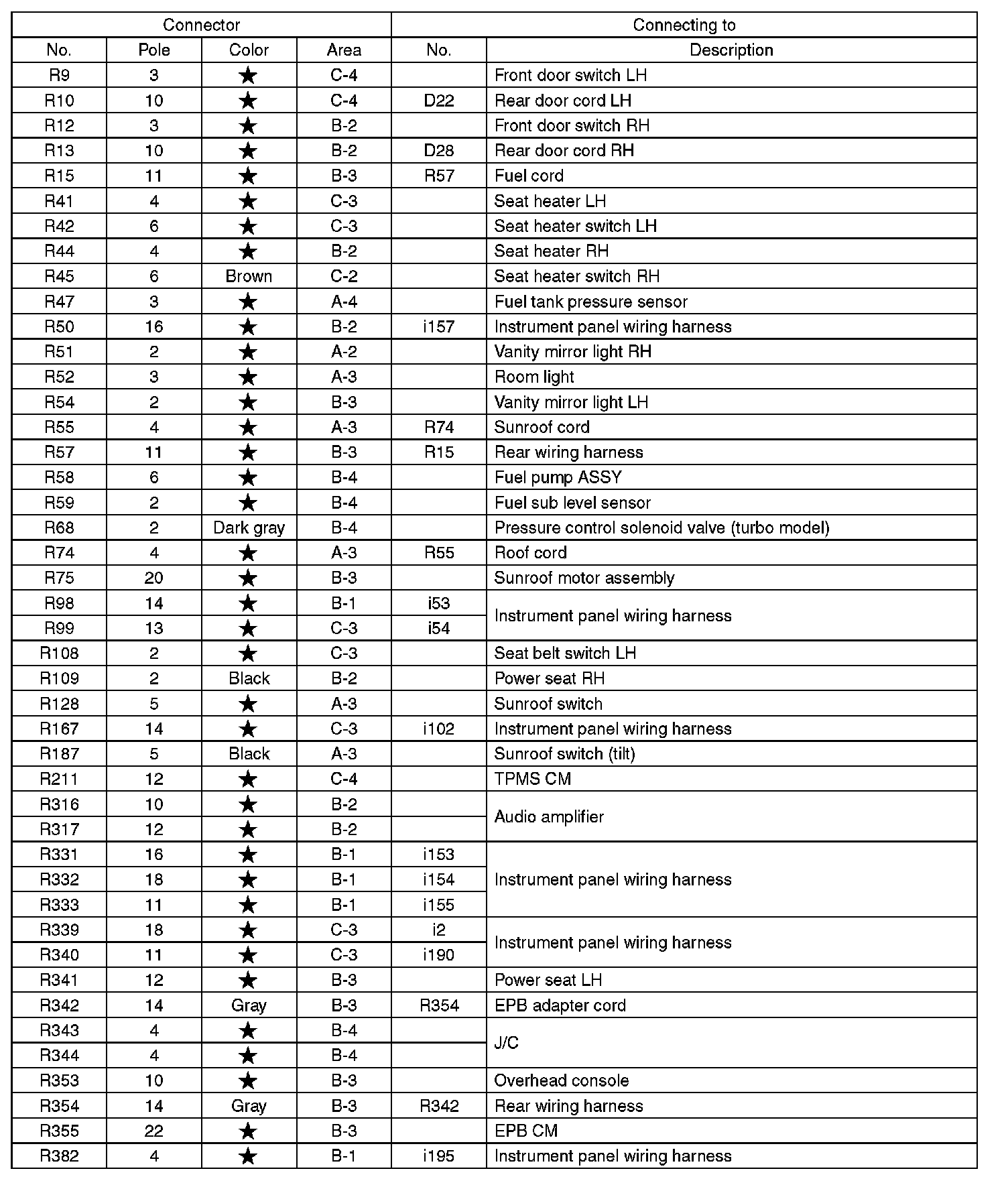

R9-R382:

R383-R387:

AB17-AB61:

Area View:

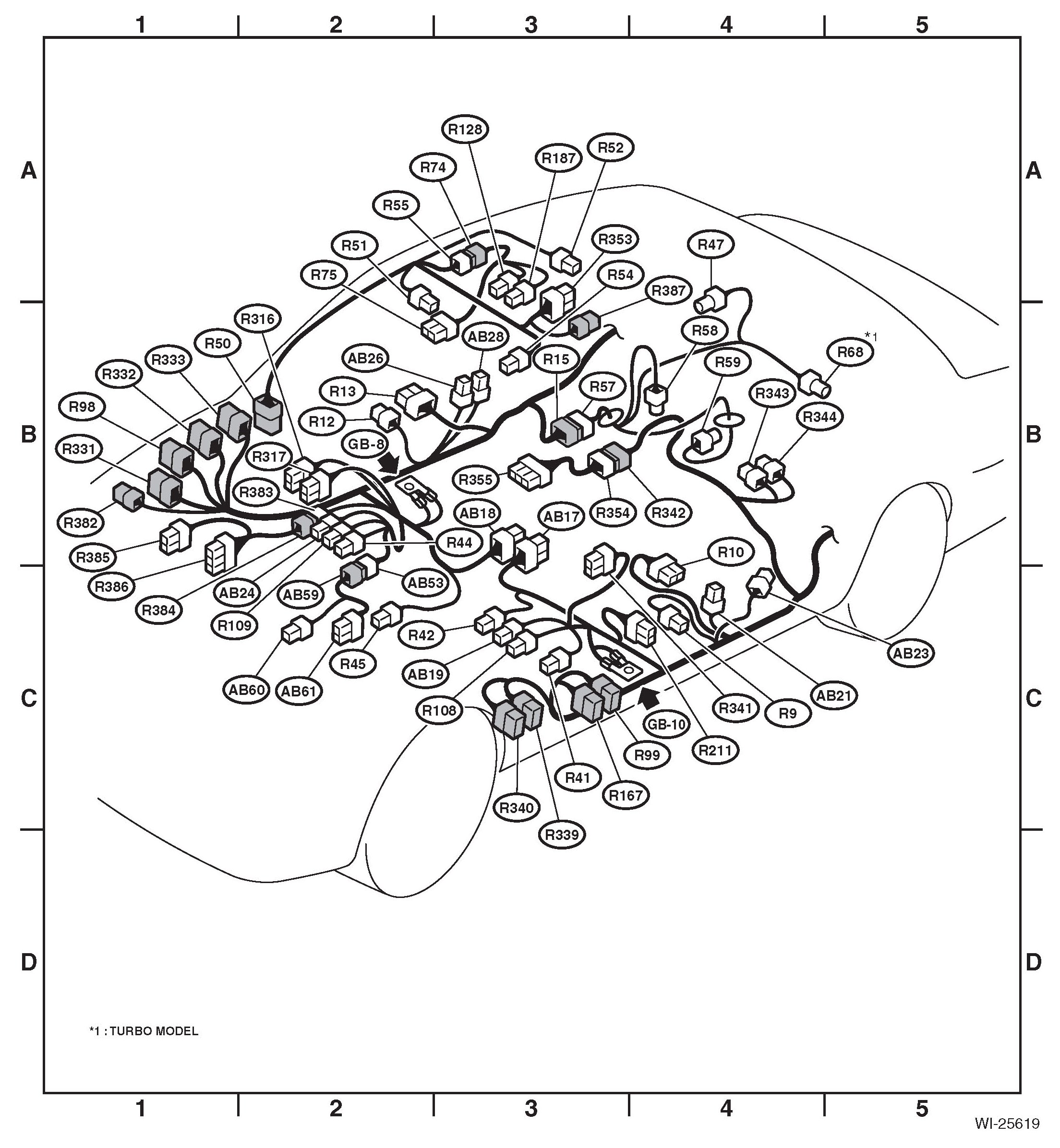

OUTBACK MODEL

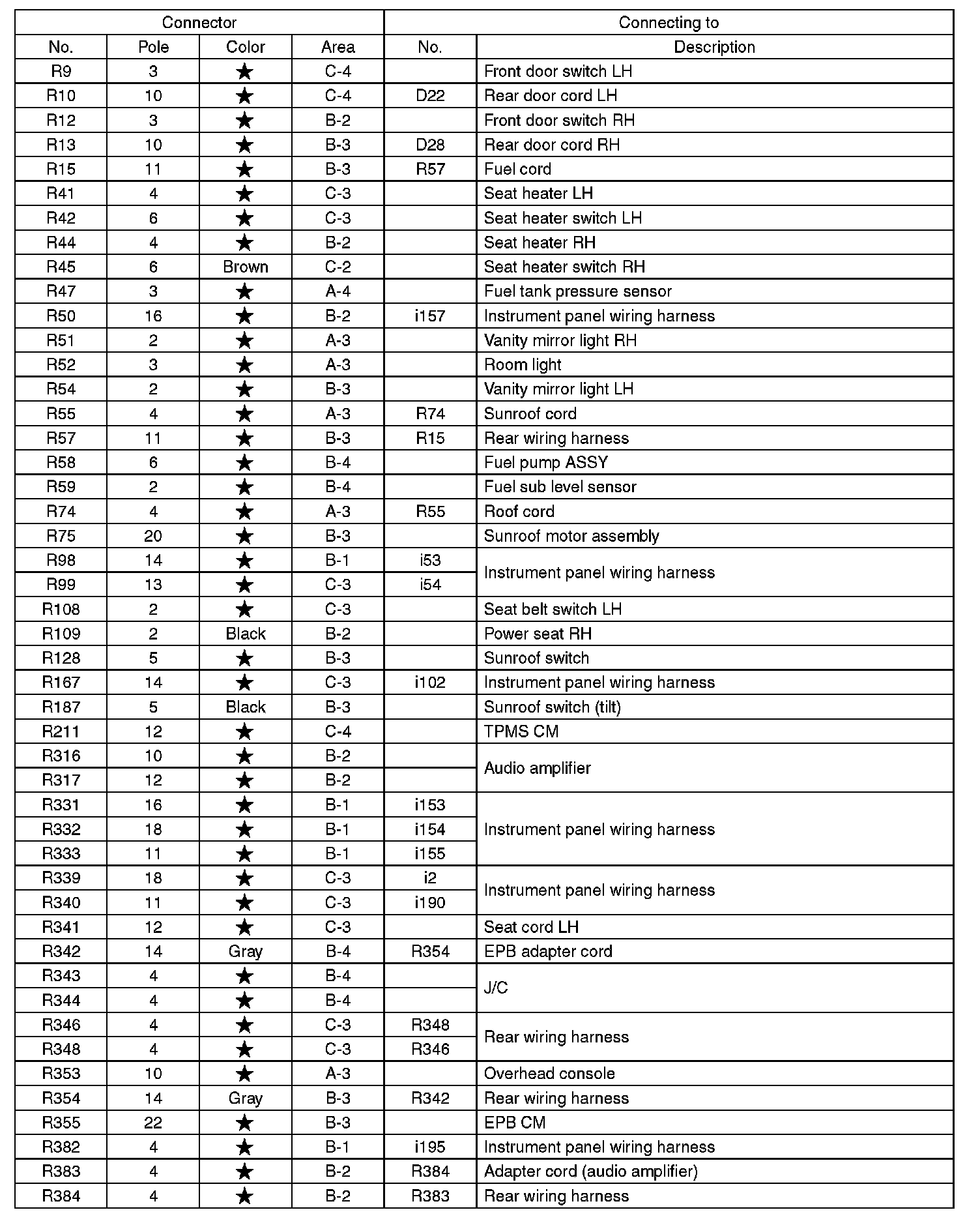

R9-R384:

R385-R387:

AB17-AB61:

Area View:
