Air Bag Systems

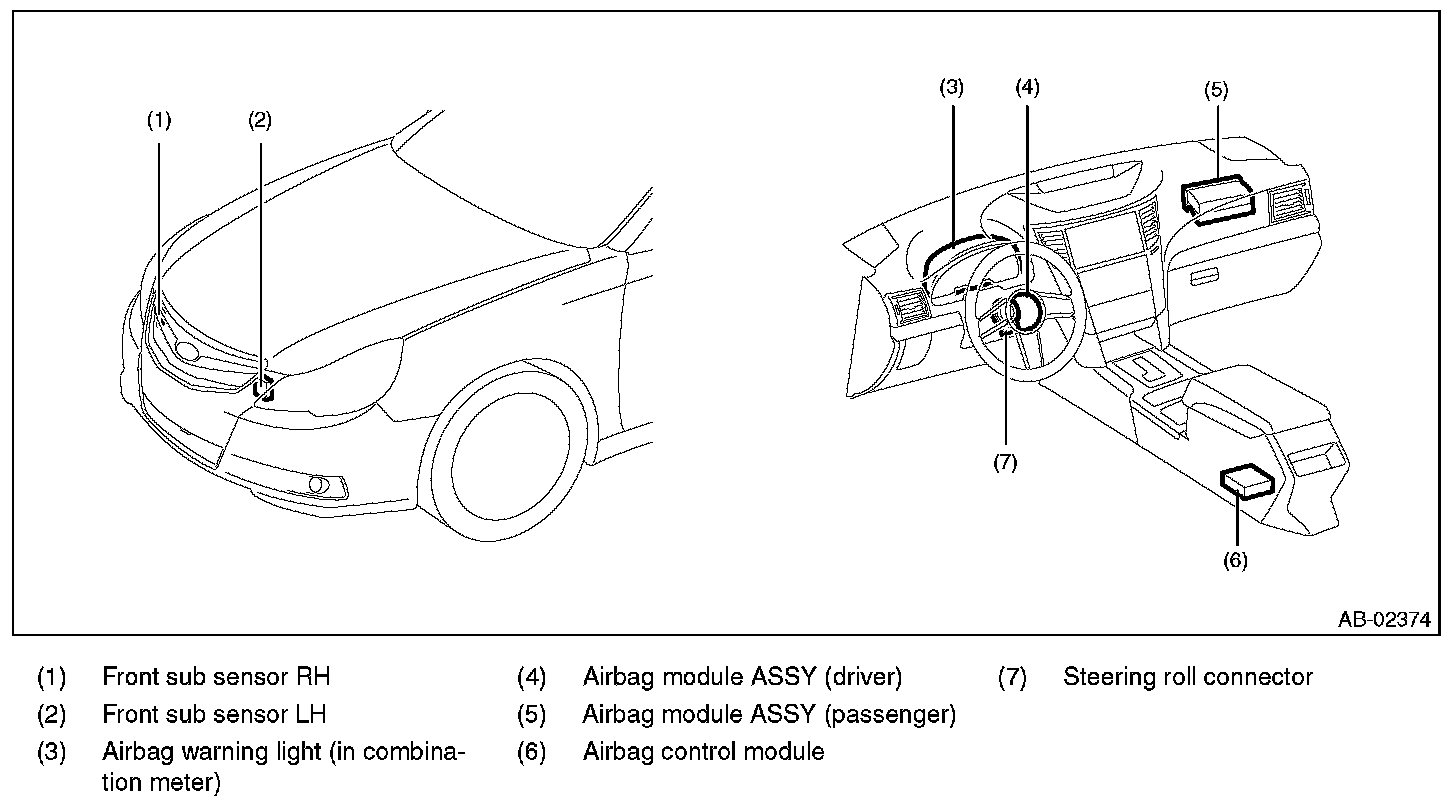

General DescriptionCOMPONENT

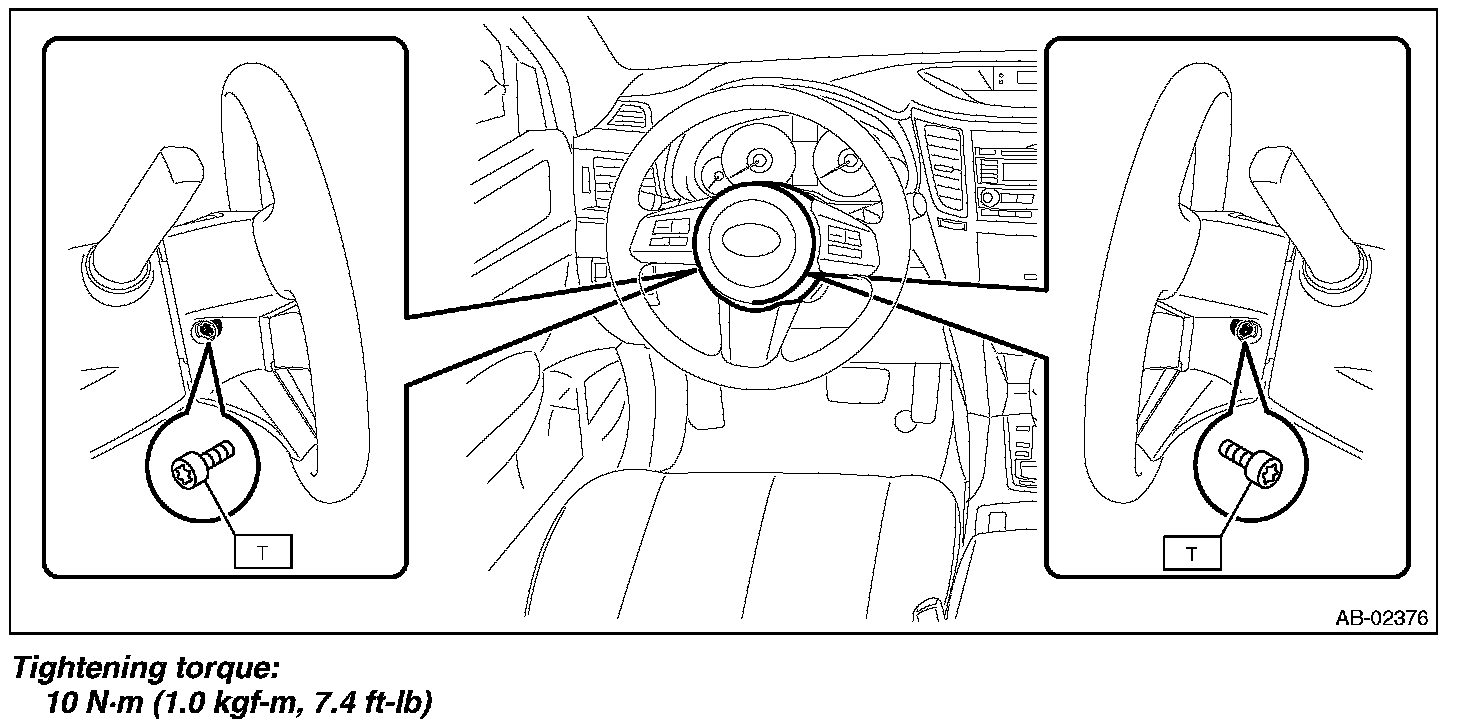

1. DRIVER'S AIRBAG MODULE

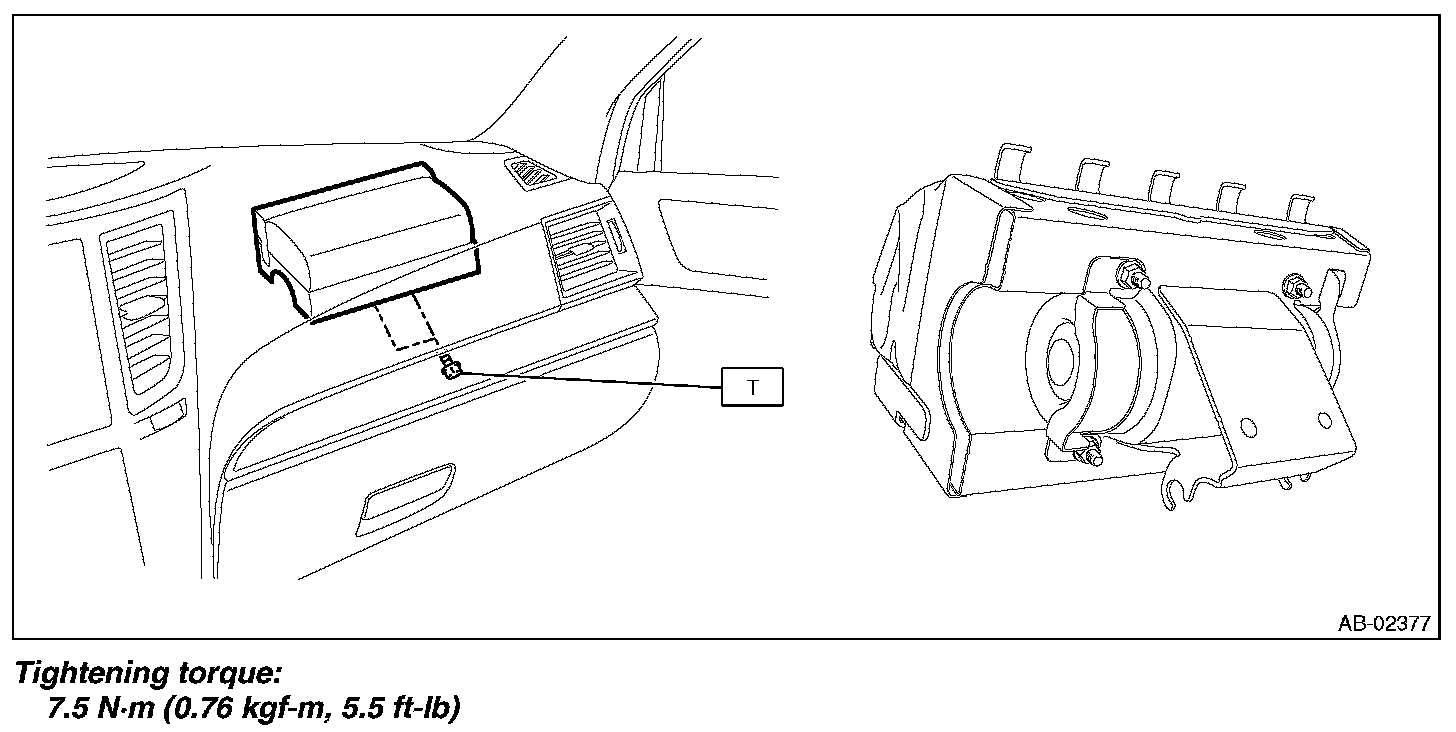

2. PASSENGER'S AIRBAG MODULE

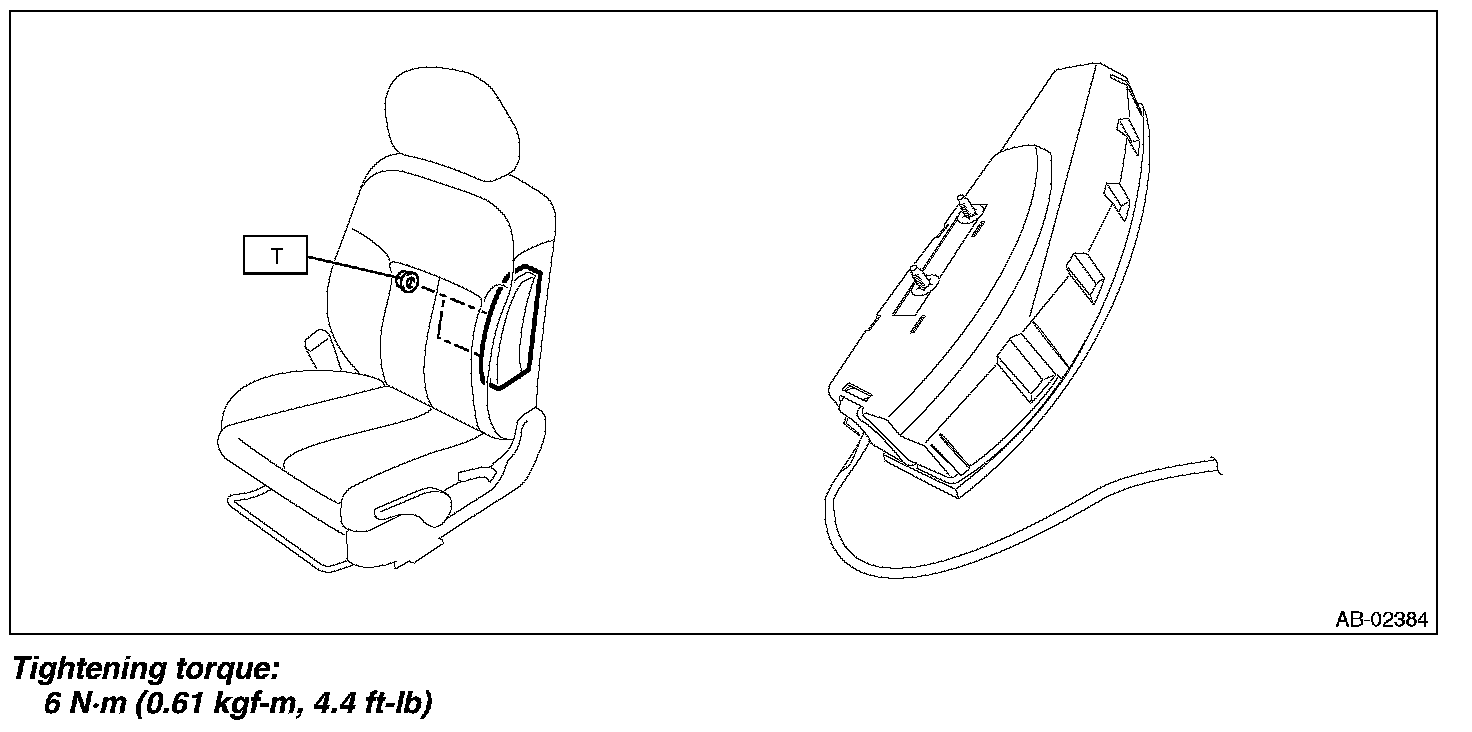

3. SIDE AIRBAG MODULE

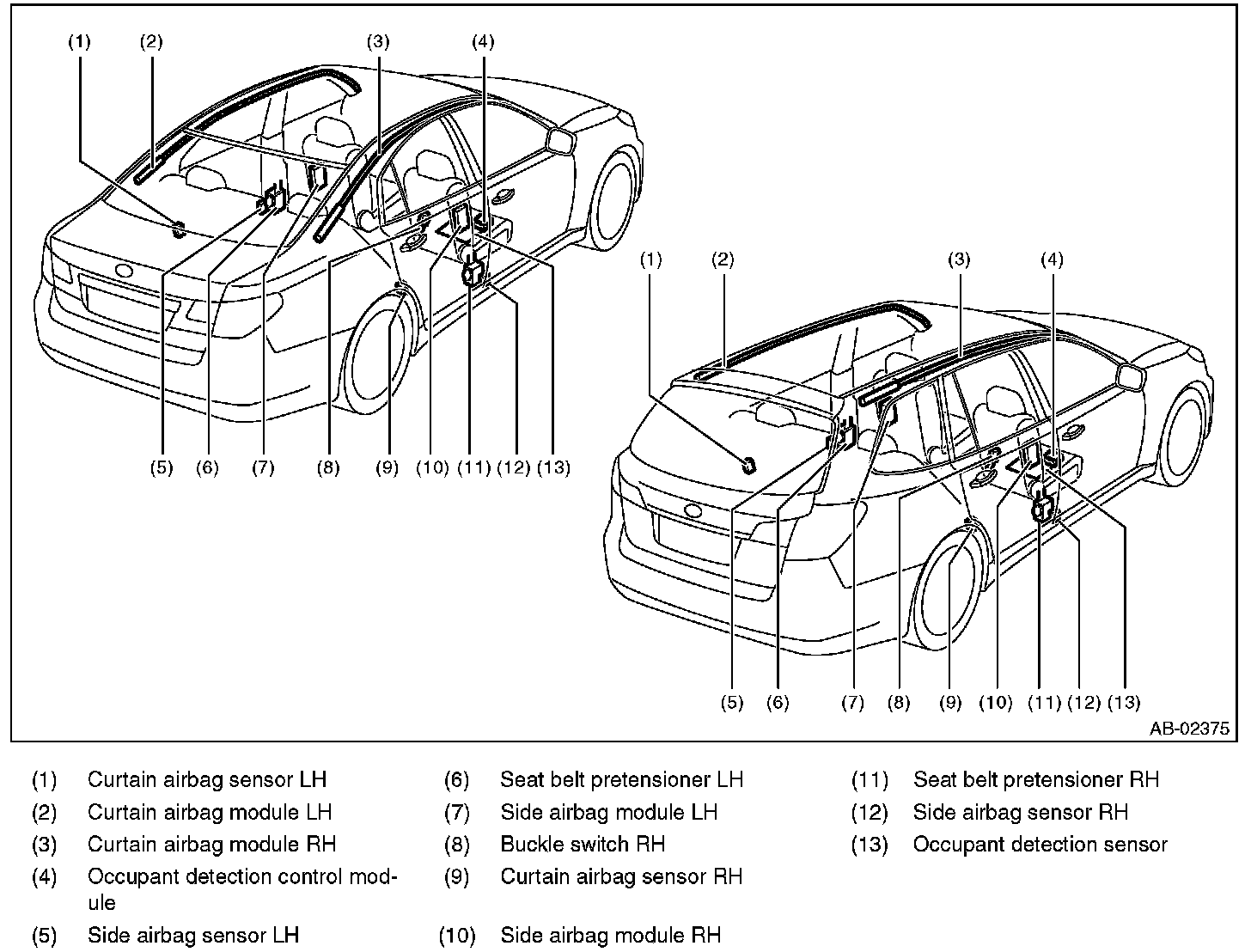

4. CURTAIN AIRBAG MODULE
- Sedan model
- OUTBACK model

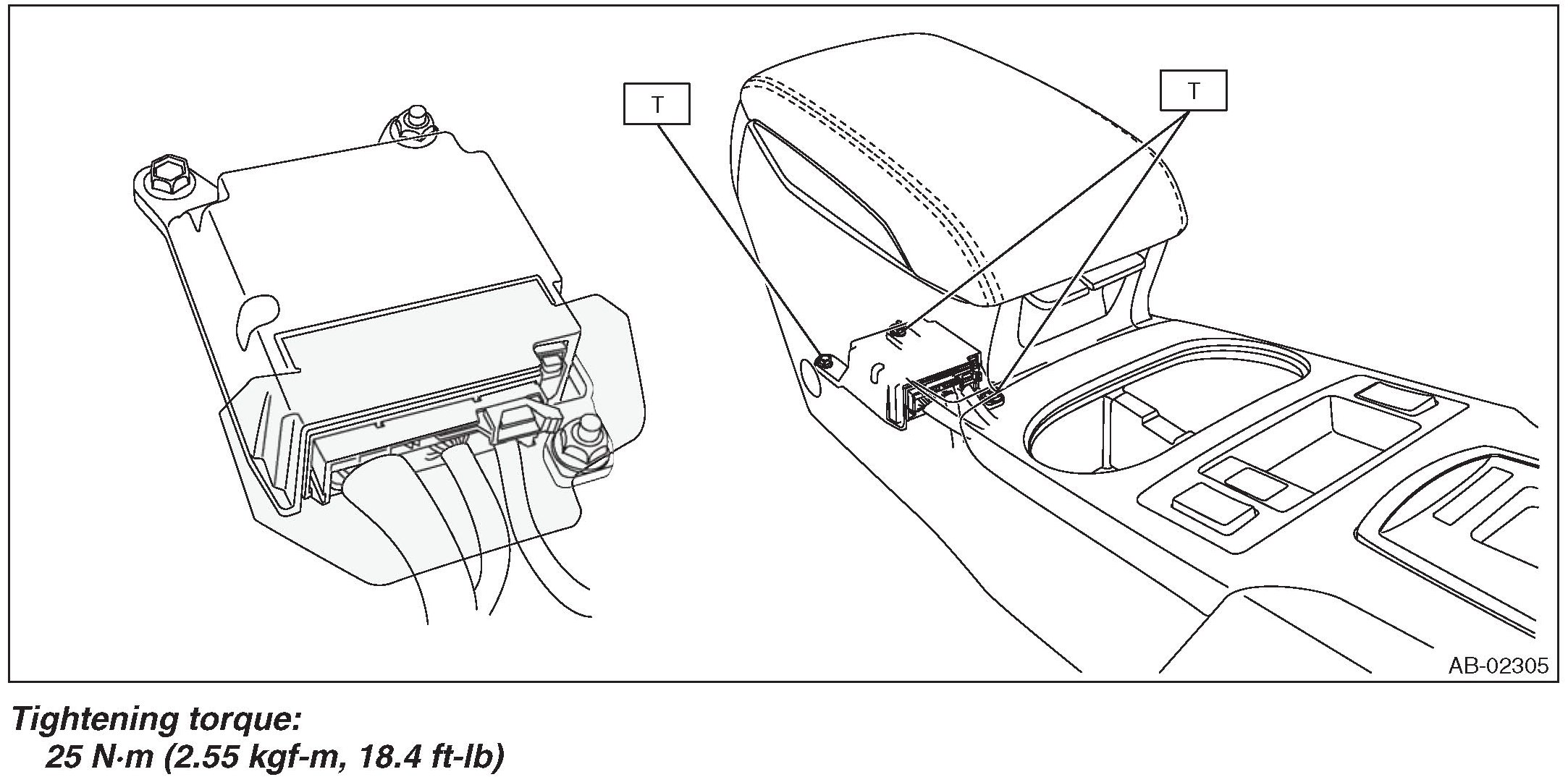

5. AIRBAG CONTROL MODULE
CAUTION: Do not reuse mounting bolts and nuts.

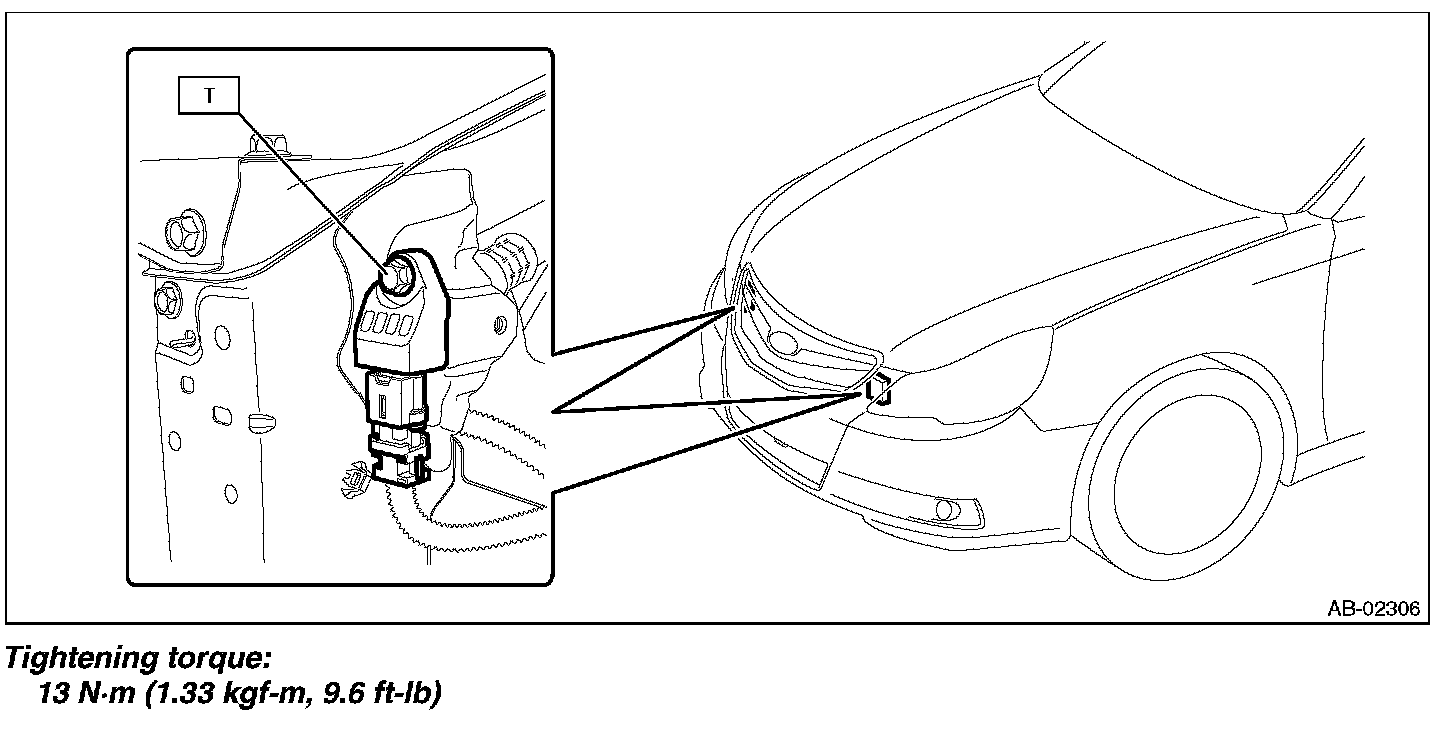

6. FRONT SUB SENSOR
CAUTION: Do not reuse mounting bolts and nuts.
7. SIDE AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.

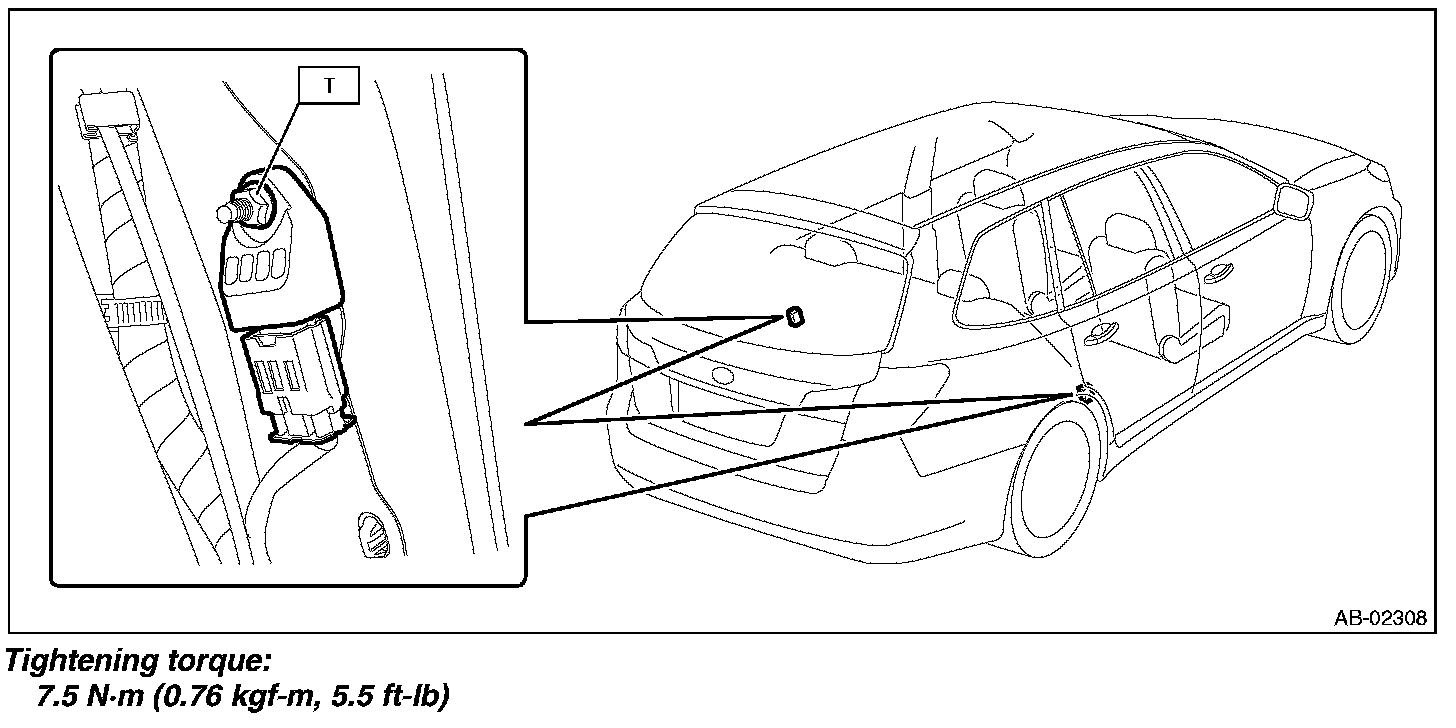

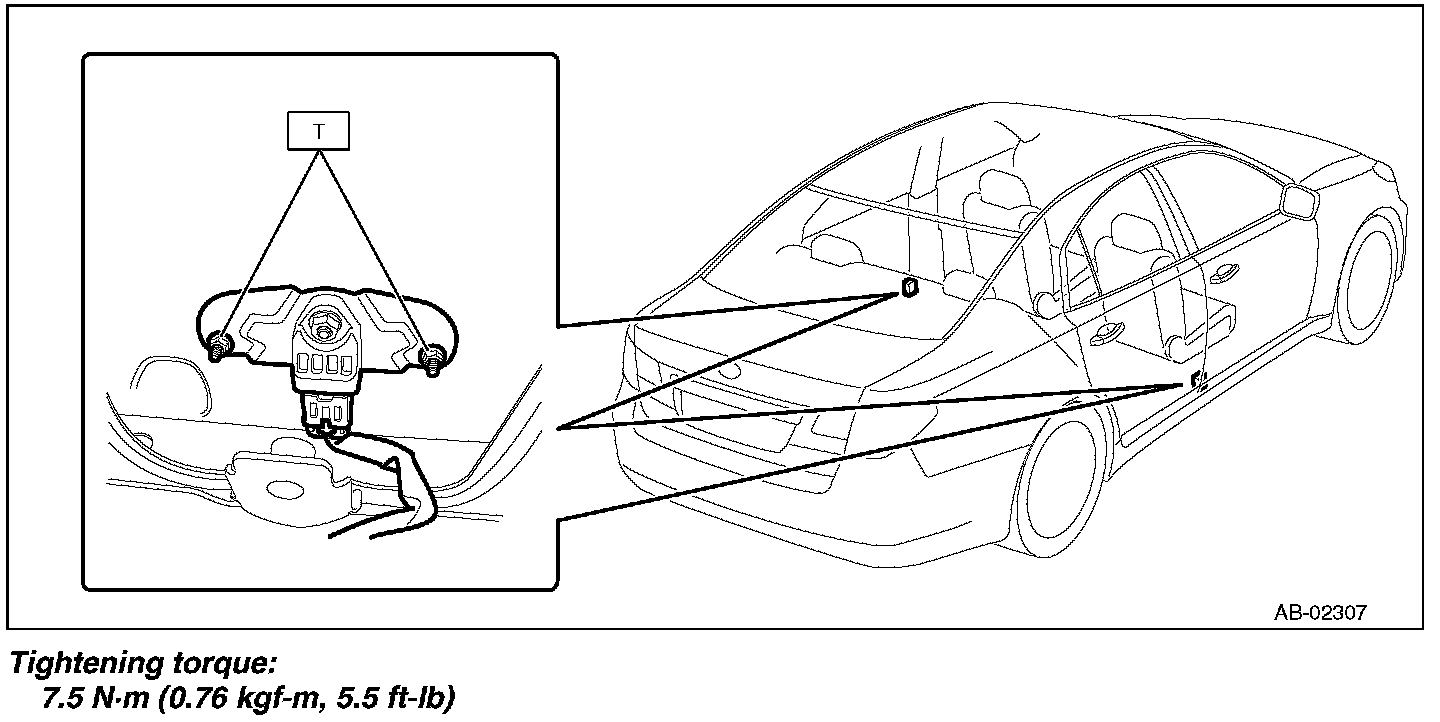

8. CURTAIN AIRBAG SENSOR
CAUTION: Do not reuse mounting bolts and nuts.

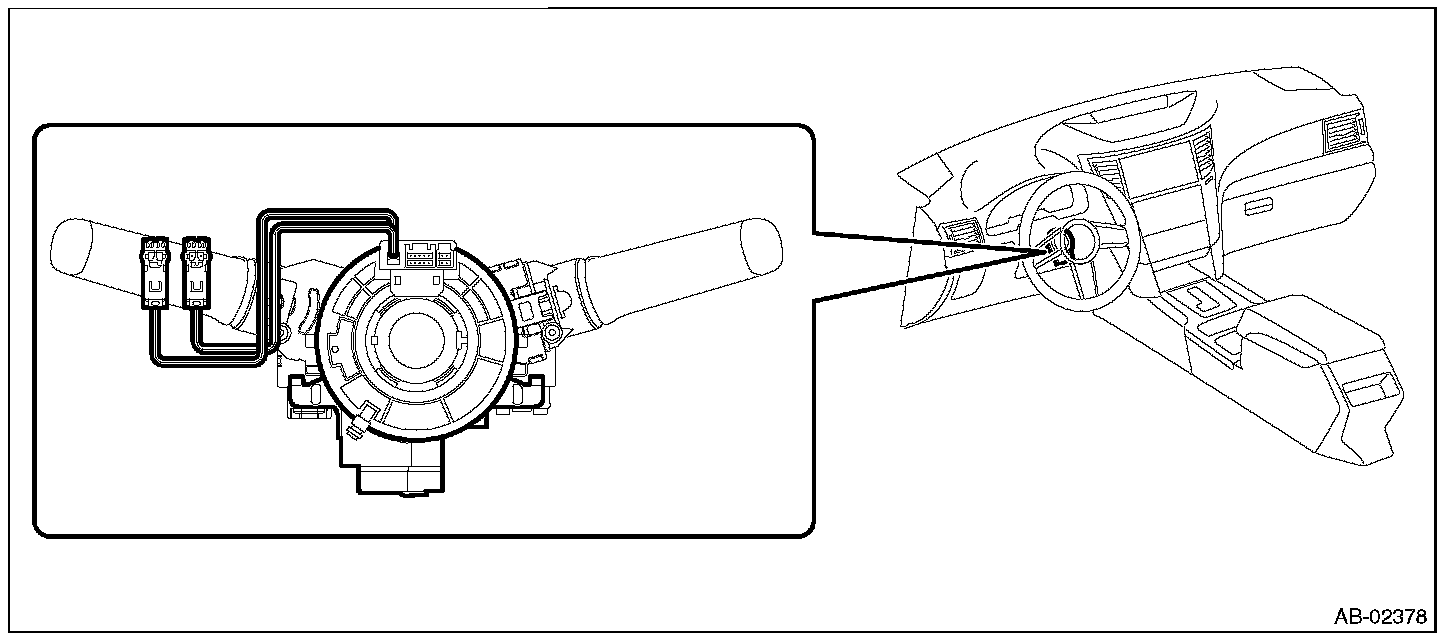

9. STEERING ROLL CONNECTOR
