Engine Harness

ENGINE HARNESS

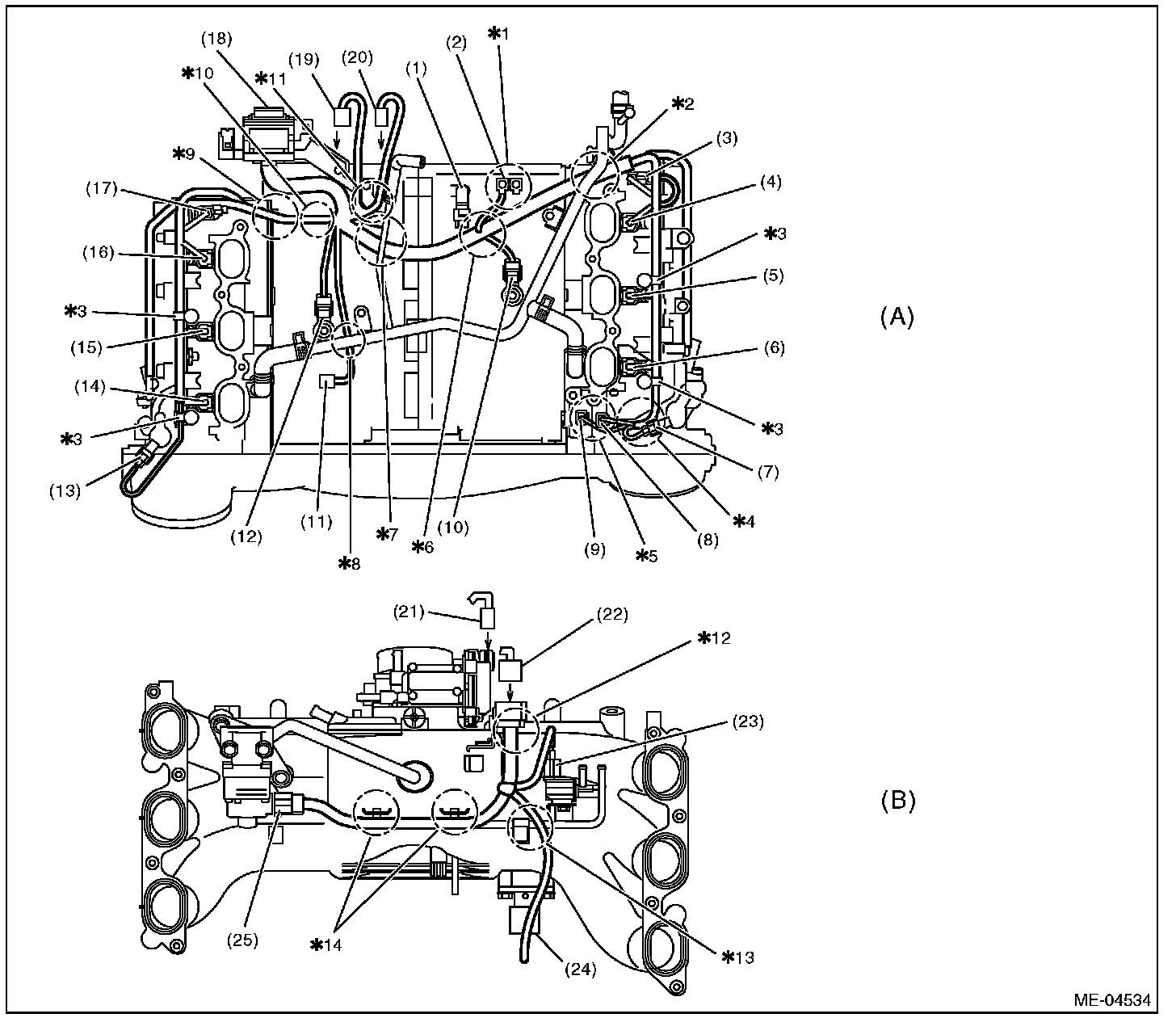

Engine harness assembly diagram 1

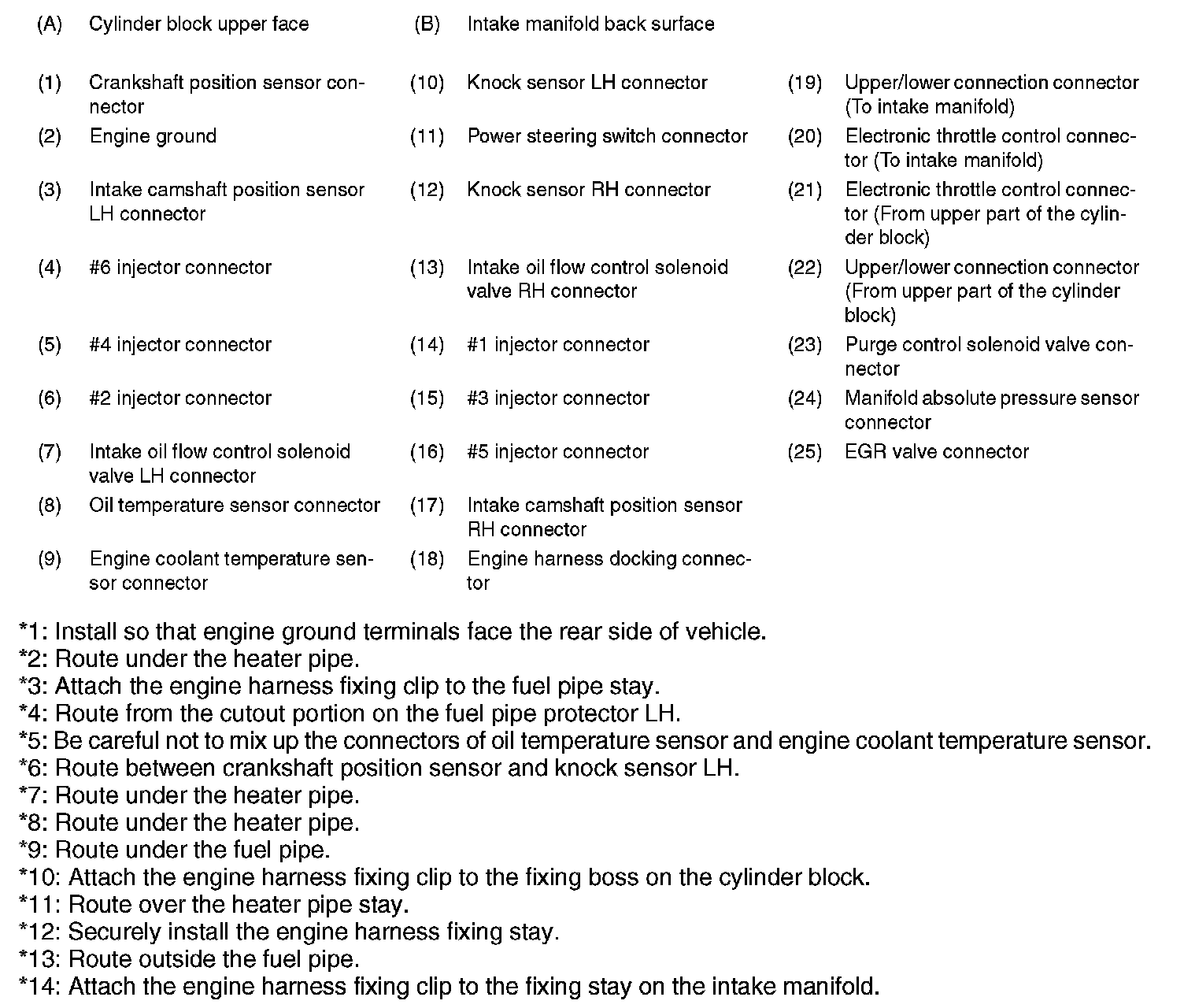

Engine harness assembly diagram 1 (Part 1):




Engine harness assembly diagram 1 (Part 2):

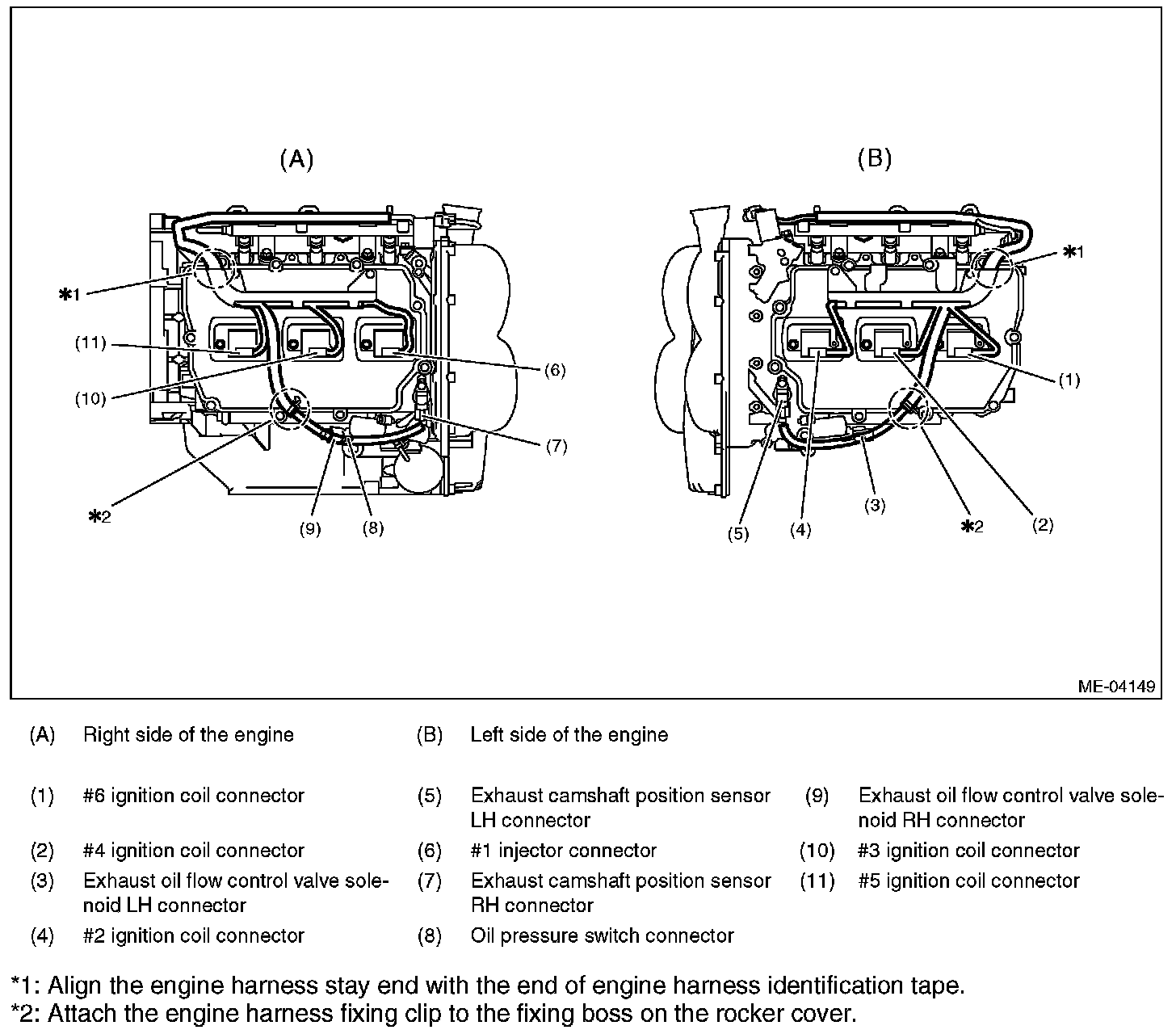

Engine harness assembly diagram 2

Engine harness assembly diagram 2:
