Fuel Tank: Installation

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

Fig 1: Locating Fuel Tank Band Bolts
Courtesy of SUBARU OF AMERICA, INC.
Securely insert the fuel filler hose (A) and circulate hose (B) to the spool, then attach the clamp or clip as shown in the figure.
Tightening torque: 2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 2: Identifying Fuel Filler Hose And Circulate Hose
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Inserting Fuel Filler Hose And Circulate Hose To Spool
Courtesy of SUBARU OF AMERICA, INC.
Connect the quick connector of the circulate tube to the evaporation pipe as shown in the figure.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.

  Fig 4: Connecting Quick Connector Of Circulate Tube To Evaporation Pipe
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 5: Locating Quick Connector
  Courtesy of SUBARU OF AMERICA, INC.
Connect the air vent hose to fuel tank.

Fig 6: Locating Air Vent Hose
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts of the fuel tank band in the order shown in the figure.
Tightening torque: 33 N.m (3.4 kgf-m, 24.3 ft-lb)

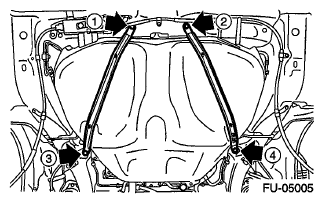

Fig 7: Identifying Fuel Tank Band Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the rear suspension assembly.
WARNING: A helper is required to perform this work.
1. Support the rear differential with the transmission jack.
2. While supporting the rear suspension assembly, install the rear suspension assembly to the body.
  Tightening torque:

  T1: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

  T2: 200 N.m (20.4 kgf-m, 147.5 ft-lb)

  Fig 8: Supporting Rear Differential With Transmission Jack
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the rear shock absorber to the rear suspension arm.
  NOTE: Use a new self-locking nut.

  Tightening torque: 120 N.m (12.2 kgf-m, 88.5 ft-lb)

  Fig 9: Locating Rear Shock Absorber Self-Locking Nut
  Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.
Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 10: Locating Heat Shield Cover Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the bolts (B) and nuts (C) securing the fuel tank protector and install the clip (A) securing the fuel tank protector and heat shield cover.
Tightening torque:

Nut (C): 9 N.m (0.9 kgf-m, 6.6 ft-lb)

Bolt (B): 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 11: Identifying Fuel Tank Protector Clip And Fuel Tank Protector Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the propeller shaft. Ref. to INSTALLATION , Propeller Shaft.
Install the rear exhaust pipe and muffler. Ref. to INSTALLATION , Rear Exhaust Pipe. Ref. to INSTALLATION , Muffler.
Lower the vehicle.
Connect the parking brake cable to the parking brake assembly. Ref. to INSTALLATION , Parking Brake Assembly (Rear Disc Brake).
Install the rear disc brake assembly.
Tightening torque: 66 N.m (6.7 kgf-m, 48.7 ft-lb)

Fig 12: Locating Rear Disc Brake Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear brake hose bracket to the rear housing.
Tightening torque: 33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 13: Locating Rear Brake Hose Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the rear ABS wheel speed sensor harness bracket to the upper arm.
Tightening torque: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 14: Locating Rear ABS Wheel Speed Sensor Harness Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear ABS wheel speed sensor to the rear housing.
Tightening torque: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 15: Locating Rear ABS Wheel Speed Sensor Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install the rear wheels.
Tightening torque: 120 N.m (12.2 kgf-m, 88.5 ft-lb)
Connect the quick connector of the fuel delivery tube (A). Ref. to INSTALLATION , Fuel Delivery and Evaporation Lines.

Fig 16: Identifying Fuel Delivery Tube
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

Fig 17: Locating Service Hole Cover Of Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of the fuel pump, and install the connector and clip.

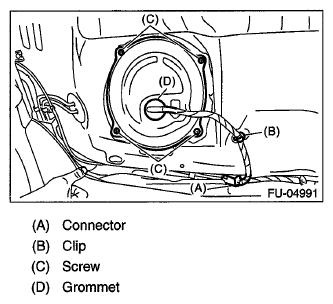

Fig 18: Identifying Connector, Clip, Screw And Grommet
Courtesy of SUBARU OF AMERICA, INC.
Set the floor mat (C), and install clips (A) and seat cushion hooks (B).

Fig 19: Identifying Clips, Seat Cushion Hooks, And Floor Mat
Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. Ref. to INSTALLATION , Rear Seat.
Connect the ground cable to battery.

Fig 20: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Inspect the wheel alignment and adjust if necessary.
