Components With Torque Specifications

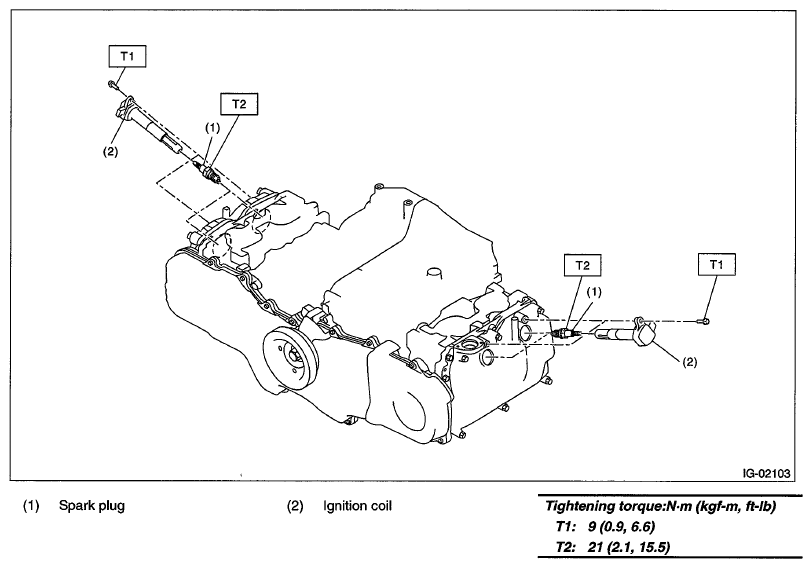

Fig 1: Spark Plug And Ignition Coil With Torque Specifications
G06648608Courtesy of SUBARU OF AMERICA, INC.
