Reverse Brake

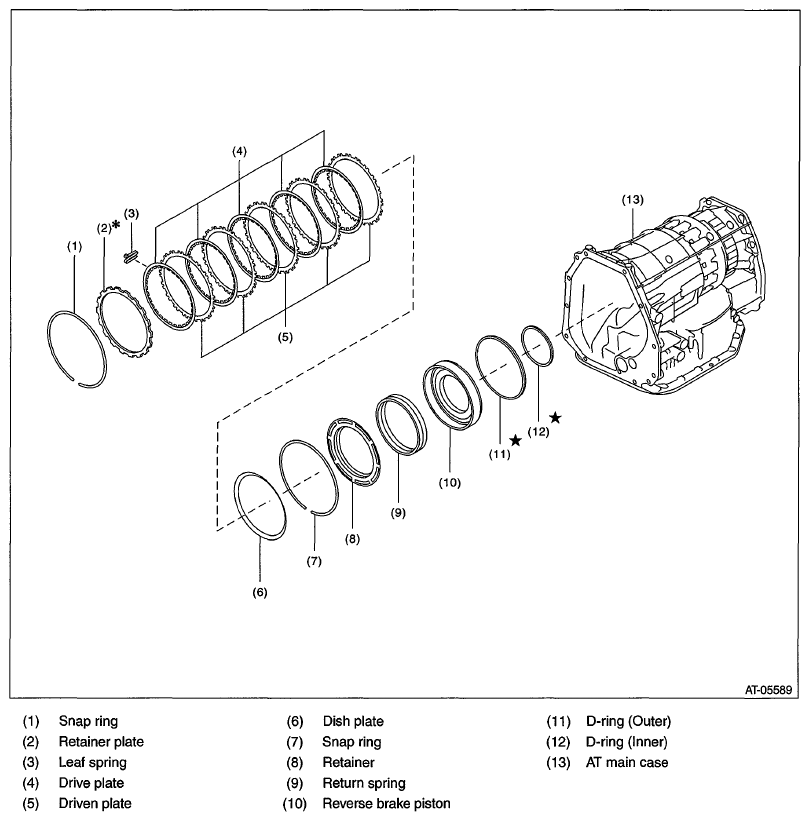

Fig 1: Identifying Reverse Brake Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
