Locks

General Description

COMPONENT

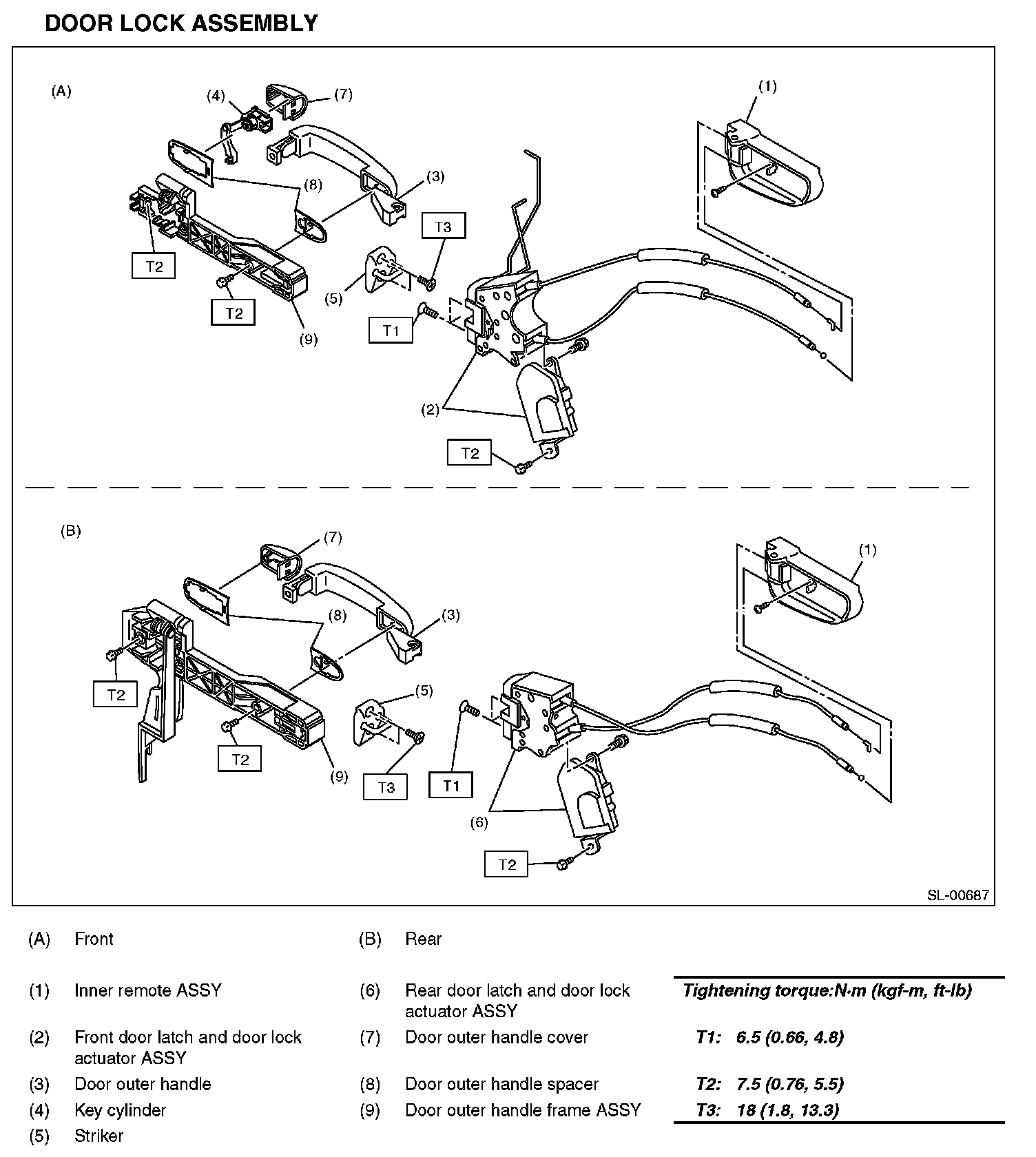

1. DOOR LOCK ASSEMBLY

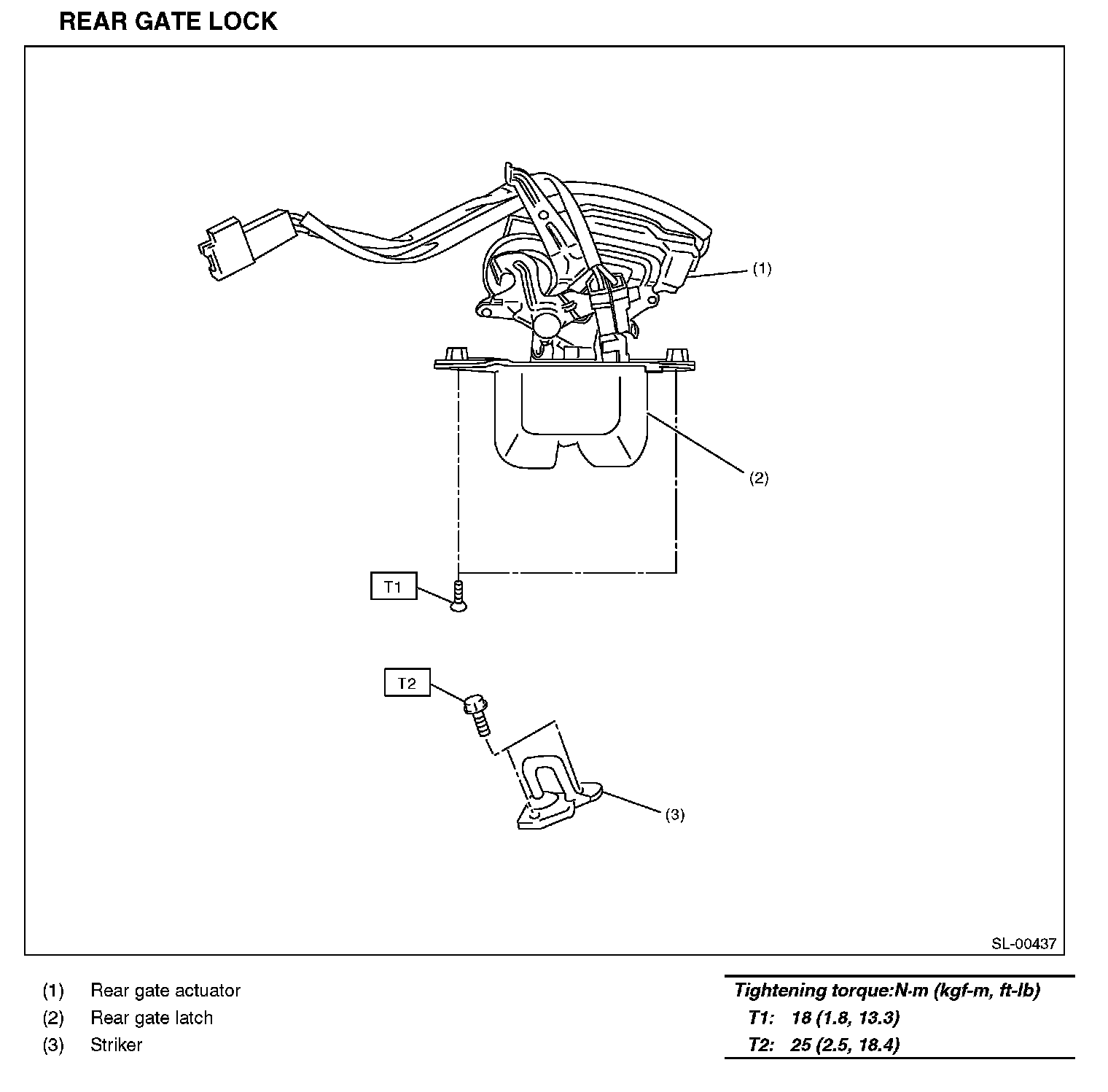

2. REAR GATE LOCK

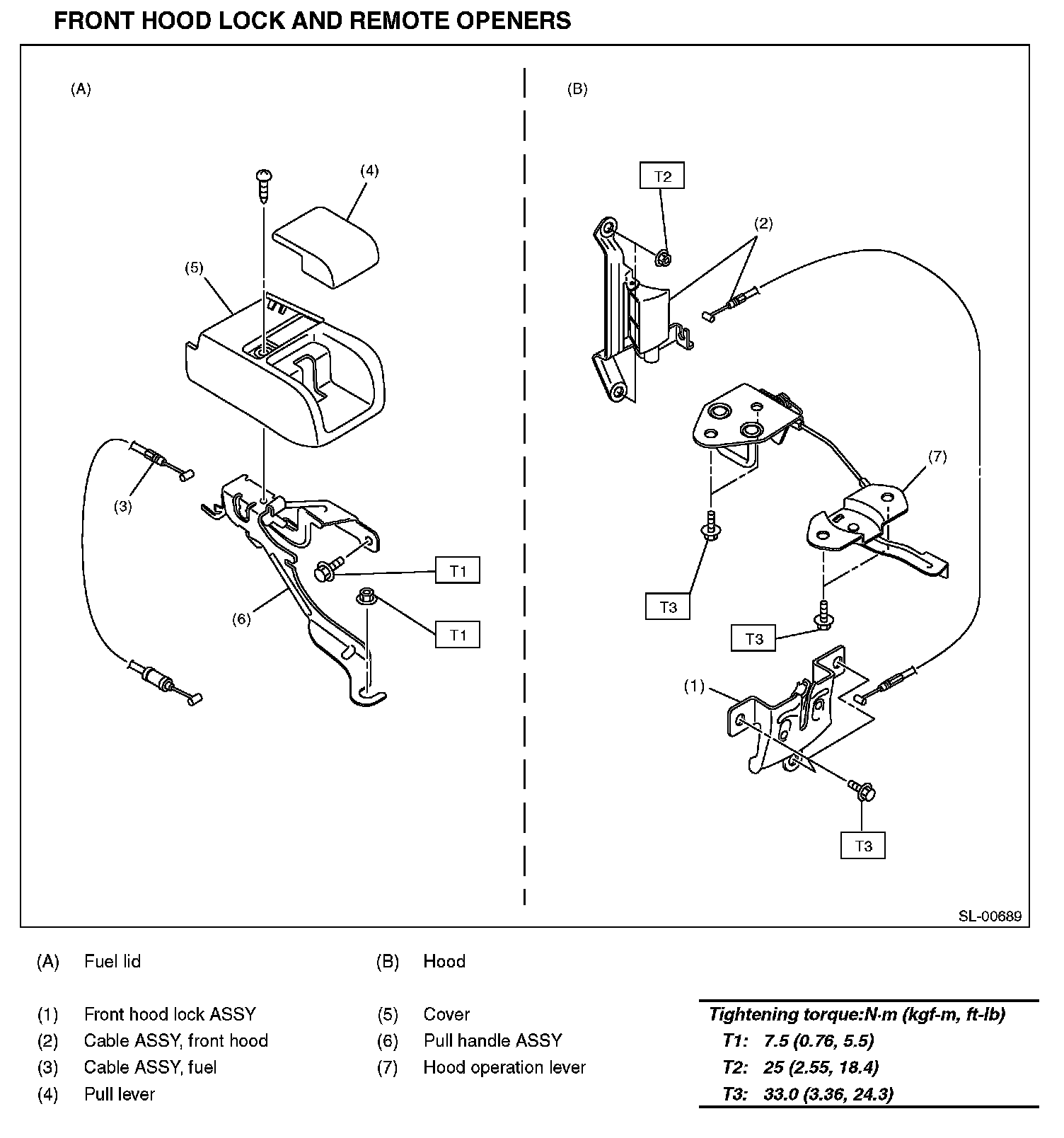

3. FRONT HOOD LOCK AND REMOTE OPENERS

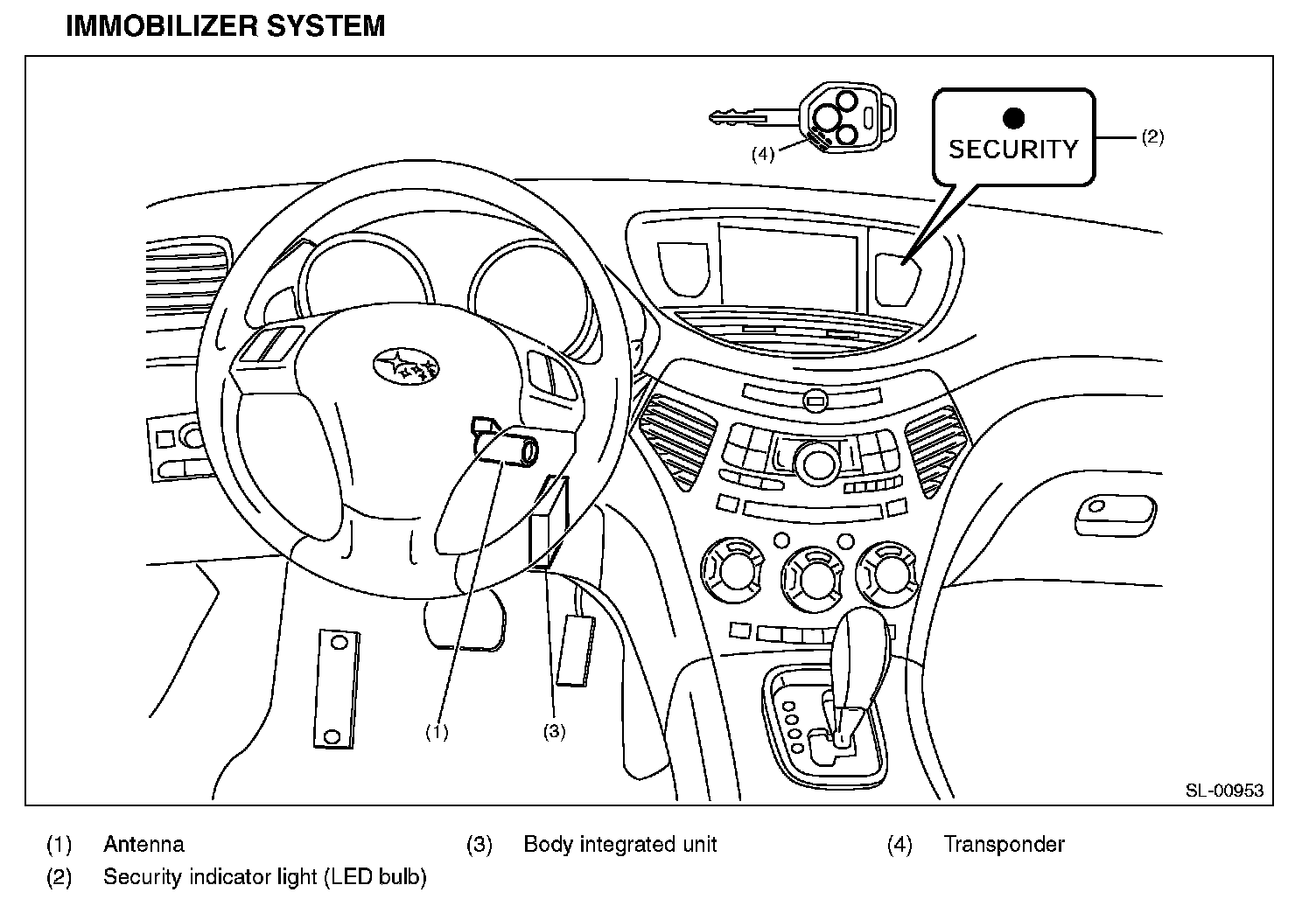

4. IMMOBILIZER SYSTEM






5. KEYLESS ENTRY SYSTEM
