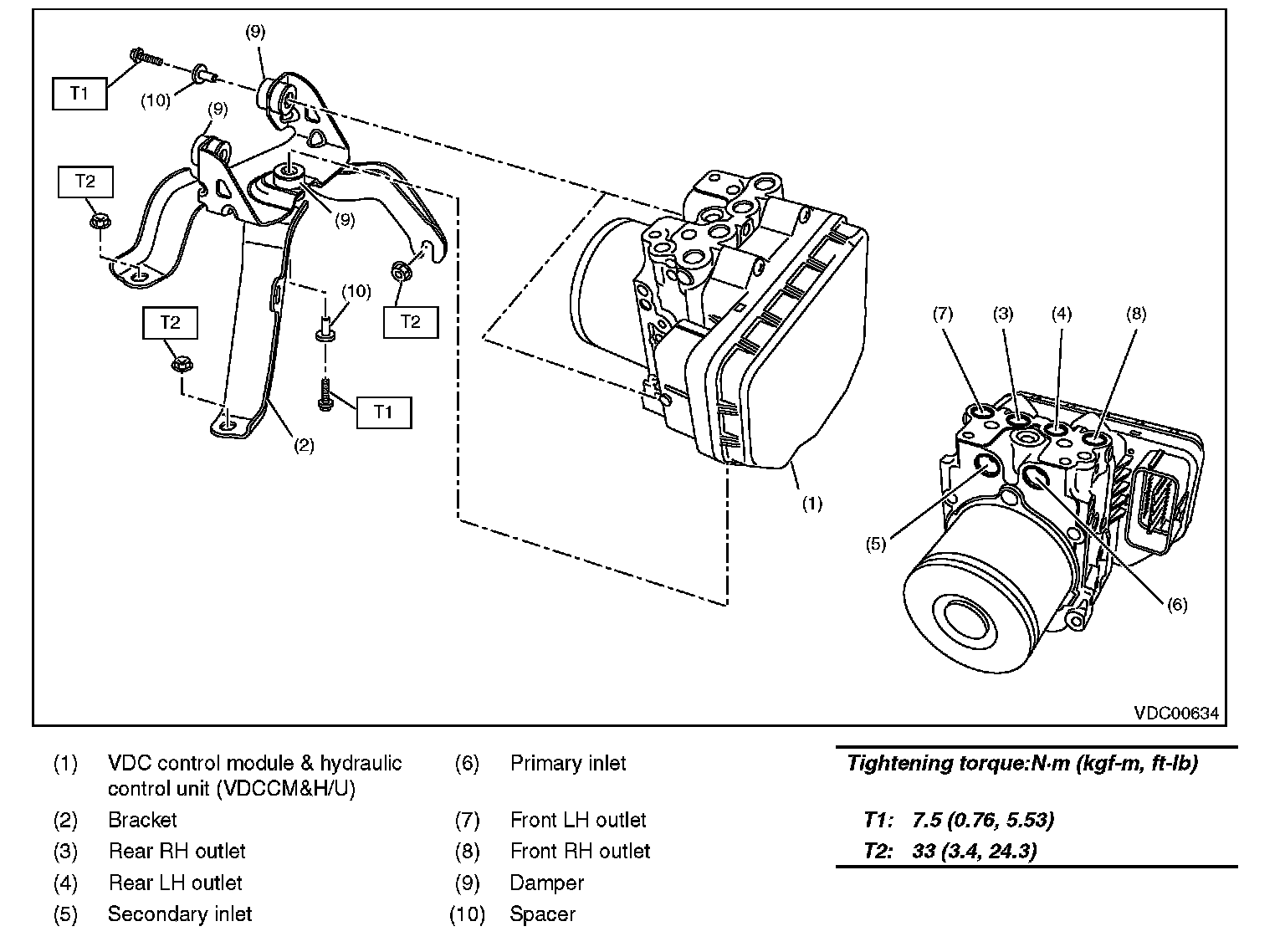

Electronic Brake Control Module

General Description

COMPONENT

VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM&H/U)
