Splash Guard: Service and Repair

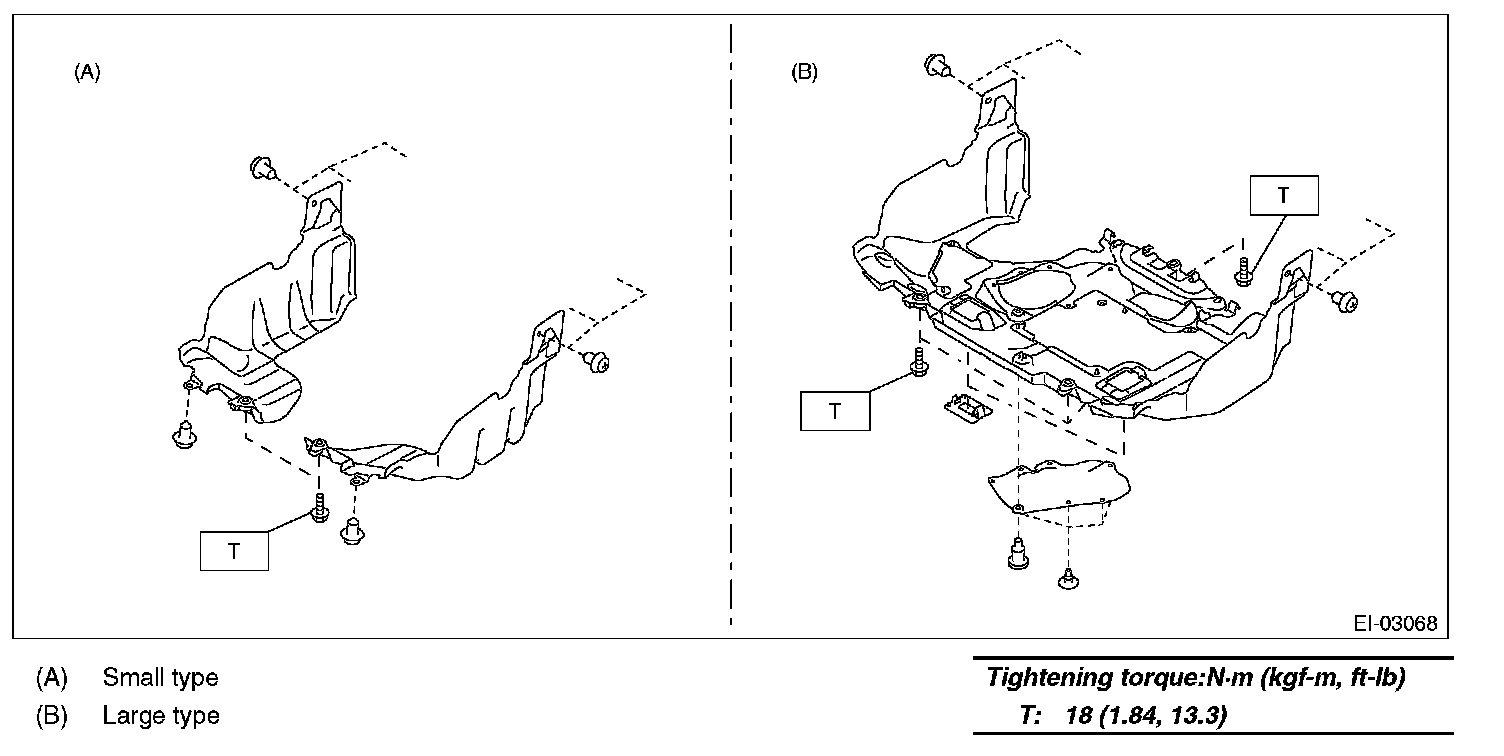

Front Under Cover


Under Cover:






REMOVAL

1. Lift up the vehicle.
2. Remove clips and bolts in front fender, then remove the front under cover.










INSTALLATION
Install each part in the reverse order of removal.

Tightening torque:
18 N.m (1.84 kgf-m, 13.3 ft-lb)
