Exhaust Gas Recirculation
COMPONENT
EGR SYSTEM 1

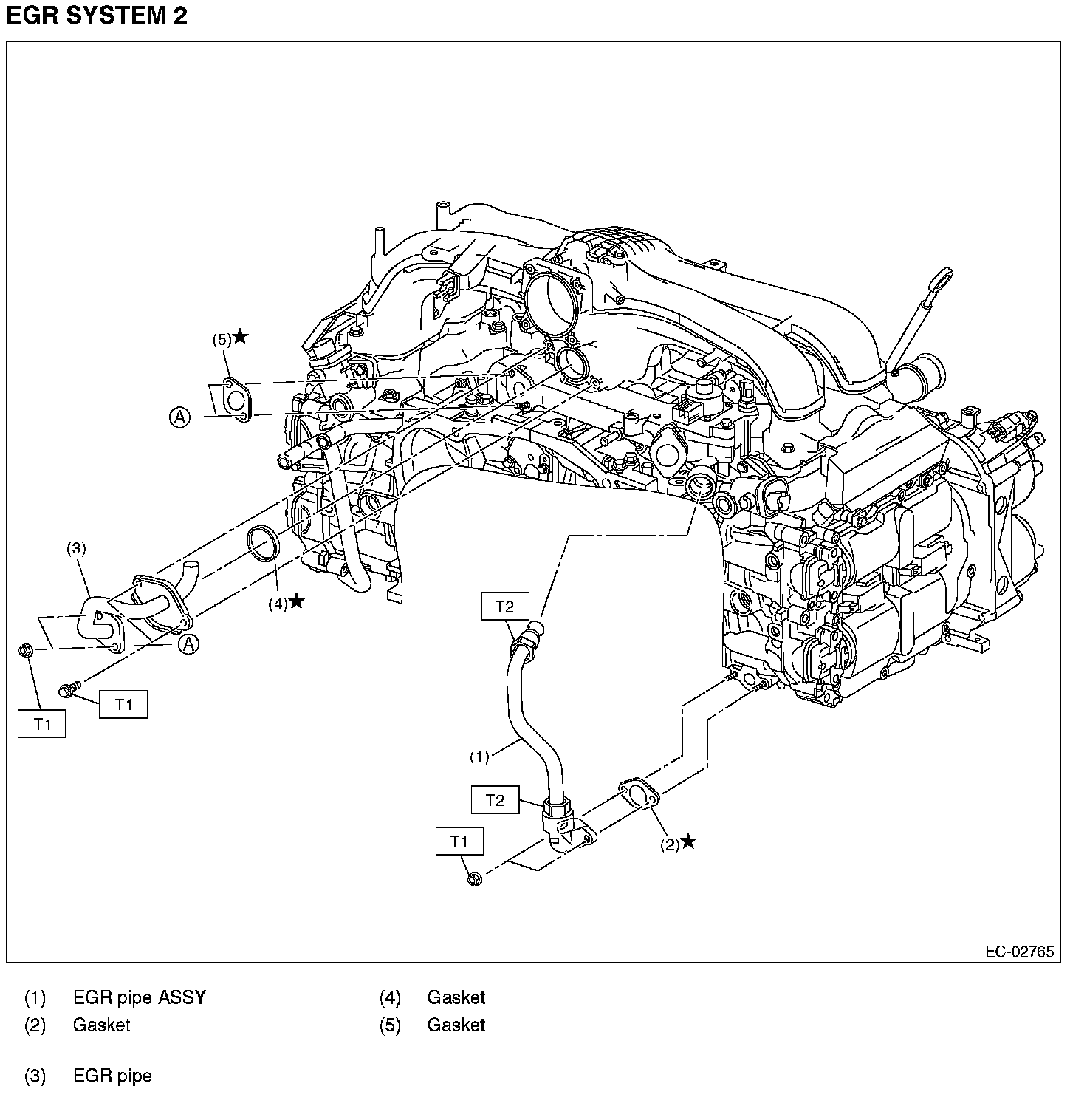

EGR SYSTEM 2
Tightening torque: N.m (kgf.m, ft.lb)
T1: 6.4 (0.7, 4.7)
T2: 8.3 (0.8, 6.1)
