EGR Valve: Service and Repair

EGR Control Valve

REMOVAL

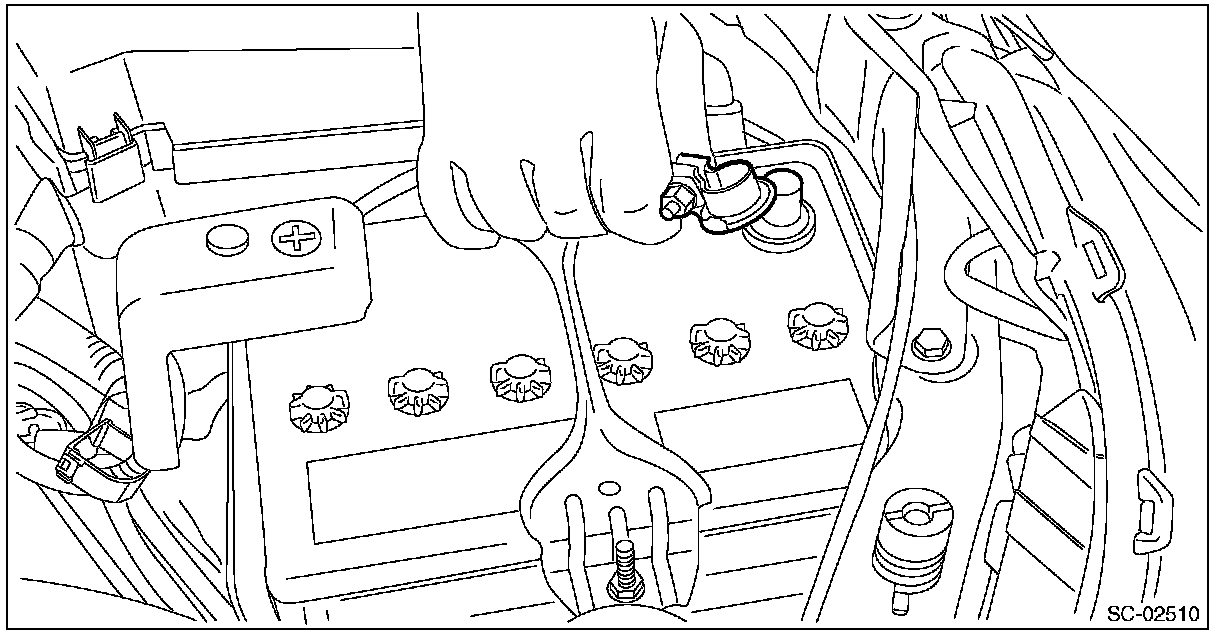

1. Disconnect the ground cable from battery.






2. Remove the air intake boot.

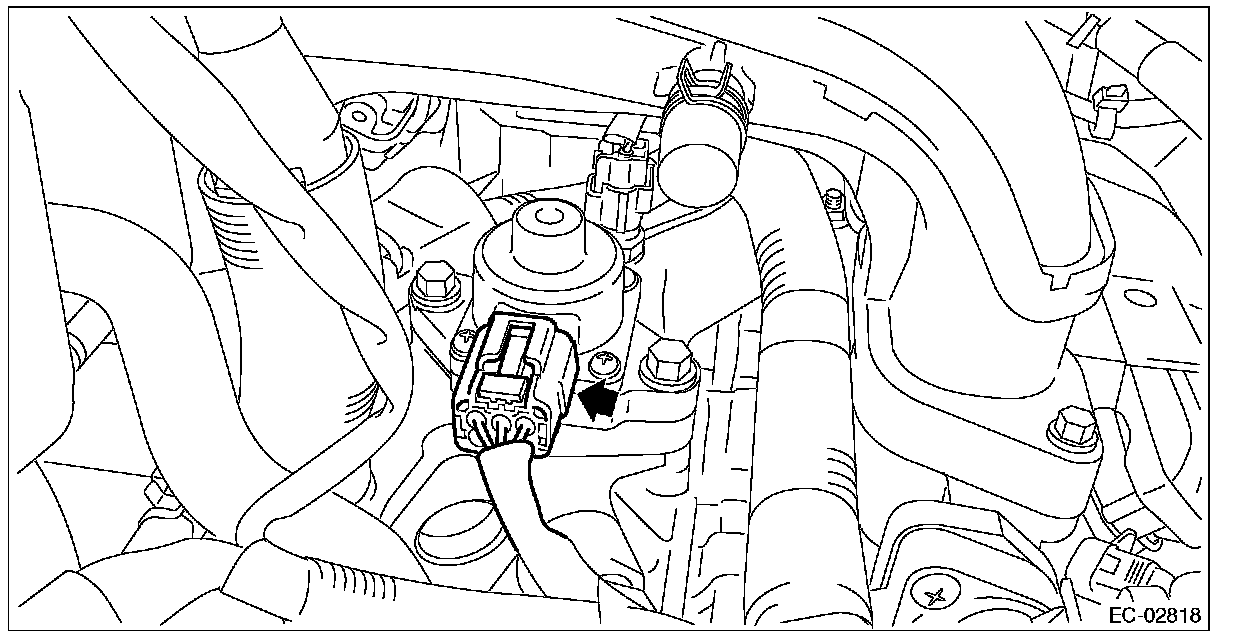

3. Disconnect the connector from the EGR control valve.

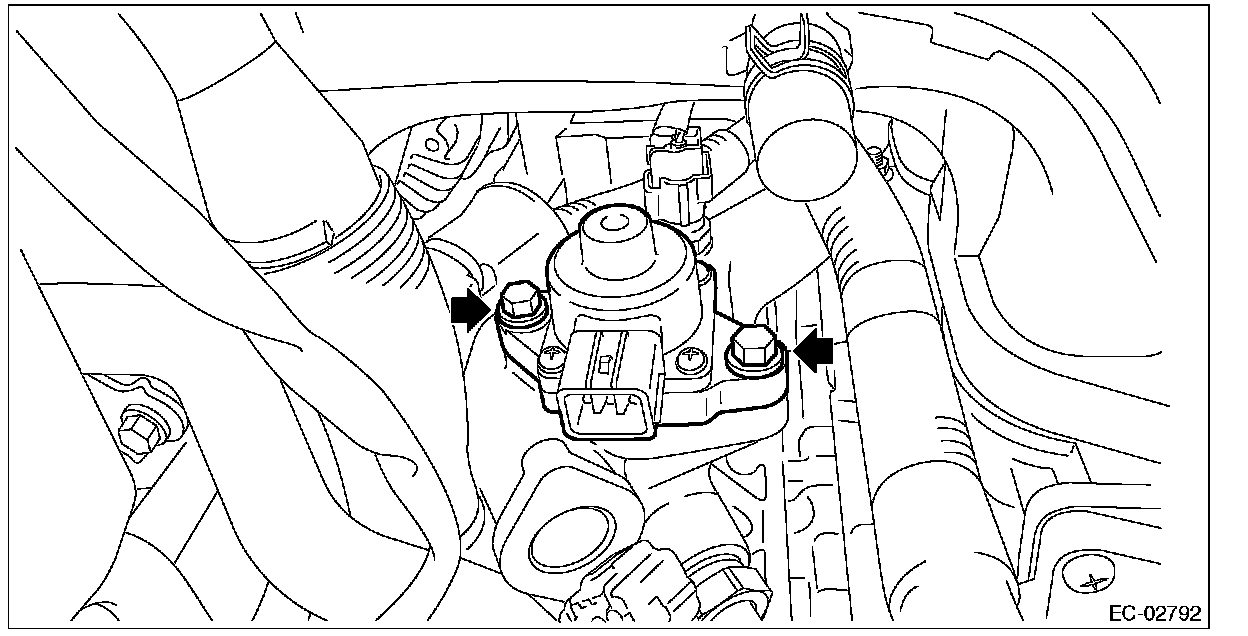

4. Remove the EGR control valve from the water pipe assembly.






INSTALLATION

Install in the reverse order of removal.

NOTE: Use new O-rings and gaskets.

Tightening torque: 22 N.m (2.2 kgf.m, 16.2 ft.lb)
