Windshield Glass A: REMOVAL: Installation

Cut the cartridge nozzle tip as shown in the illustration, and set the adhesive in the sealant gun.

Fig 1: Cartridge Nozzle Tip Dimensions
Courtesy of SUBARU OF AMERICA, INC.
Clean the external circumference of windshield glass with alcohol or white gasoline.
Remove the adhesive layer on the body using cutter knife to obtain smooth face of 2 mm (0.08 in) thick.
CAUTION: Be careful not to damage the body and paint surface.

Fig 2: Clearance Between Dam Rubber And Glass
Courtesy of SUBARU OF AMERICA, INC.
Clean the body with alcohol or white gasoline to eliminate cutting powder, dust and dirt completely from body.
Install the dam rubber.

Fig 3: Dam Rubber Dimensions
Courtesy of SUBARU OF AMERICA, INC.
Attach the molding to the glass.

Fig 4: Attaching Molding To Glass
Courtesy of SUBARU OF AMERICA, INC.
1. Align the molding (A) to the upper ends of the windshield glass (C).
2. Attach the molding from the upper corners towards the center.
3. Attach the molding from the upper corners downward.
4. Firmly apply the double sided tape (B) of the molding evenly to the end face of the glass.
Apply the seal to the molding.

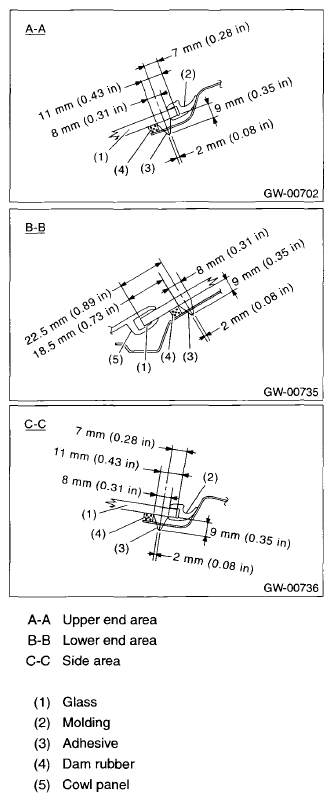

Fig 5: Molding Seal Dimensions
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Apply so that the sticker does not overlap out to the adhesive side (6).
Using a sponge, apply primer to the glass side and body side adhesive surfaces.
Glass primer:

Dow Automotive
- ESSEX U-401, U-402 or equivalent
  Painted surface primer:

  Dow Automotive
- ESSEX U-413 or equivalent
NOTE:
- Primer once attached to the painted surface of the body and internal trim is hard to wipe off. Mask the circumference of such area.
- Let primer dry for about ten minutes before installing the glass.
- Do not touch the surface coated with primer.

  Fig 6: Primer Applying Area
  Courtesy of SUBARU OF AMERICA, INC.
Apply adhesive to the glass end surface as shown in the illustration.
Adhesive:

Dow Automotive
- ESSEX U-400HV or equivalent

  Fig 7: Glass End Surface Adhesive Applying Area
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 8: Glass End Surface Adhesive Applying Dimensions
  Courtesy of SUBARU OF AMERICA, INC.
Using suction rubber cups, fit the locator pins into the body side, and attach the windshield glass.

Fig 9: Fitting Locator Pins Into Body Side Using Suction Rubber Cups
Courtesy of SUBARU OF AMERICA, INC.
Lightly press the windshield glass for tight fit.
Make flush the adhesive surface jutted out using spatula.
After completion of all work, allow the vehicle to stand for about 24 hours.
NOTE:
- When door is opened/closed after glass is bonded, always lower the door glass first, and then open/close it carefully.
- Move the vehicle slowly.
- For minimum drying time and vehicle standing time before driving after bonding, follow instructions from the adhesive manufacturer.
After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.
NOTE: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
Install the cowl panel. < Ref. to INSTALLATION , Cowl Panel. >
Connect the wiper deicer connector. (Models with wiper deicer)
Install the front pillar upper trim. < Ref. to INSTALLATION , Upper Inner Trim. >
