VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Removal

Disconnect the ground cable from battery.
Use compressed air to remove moisture and dust around the VDCCM&H/U.
NOTE: If the terminals become dirty, it may cause improper contact.
Lift the lock lever and Disconnect the VDCCM&H/U connector.
CAUTION: Do not pull on the harness when disconnecting the connector.

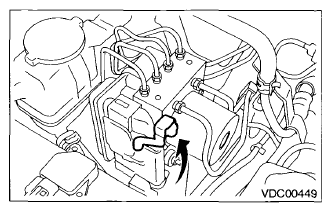

Fig 1: Lifting Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the brake pipes from the VDCCM&H/U.
Wrap the brake pipe with a vinyl bag so as not to spill the brake fluid on the vehicle body.
CAUTION: If brake fluid is spilled on the vehicle body, wash it off immediately with water and wipe clean.
Remove the nuts and remove the VDCCM&H/U.
CAUTION:
- Do not drop or bump the VDCCM&H/U.
- Do not turn the VDCCM&H/U upside down or place it sideways for storage.
- Be careful not to let foreign matter enter the VDCCM&H/U.
- Be careful that no water enters the connectors.

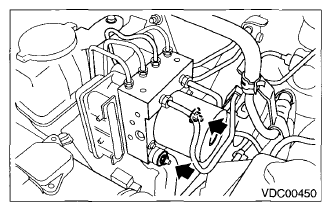

  Fig 2: Locating VDCCM & H/U Nuts
  Courtesy of SUBARU OF AMERICA, INC.
Remove the VDCCM&H/U bracket.
