Electronic Throttle Control Relay: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the electronic throttle control relay from the relay block on the back side of the glove box.

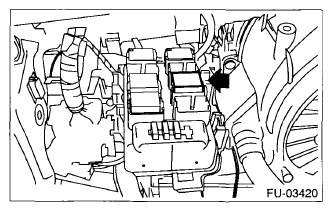

Fig 2: Locating Electronic Throttle Control Relay In Relay Block On Back Side Of Glove Box
Courtesy of SUBARU OF AMERICA, INC.
