Antitheft Antenna: Service and Repair

Immobilizer Antenna

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the steering column cover.

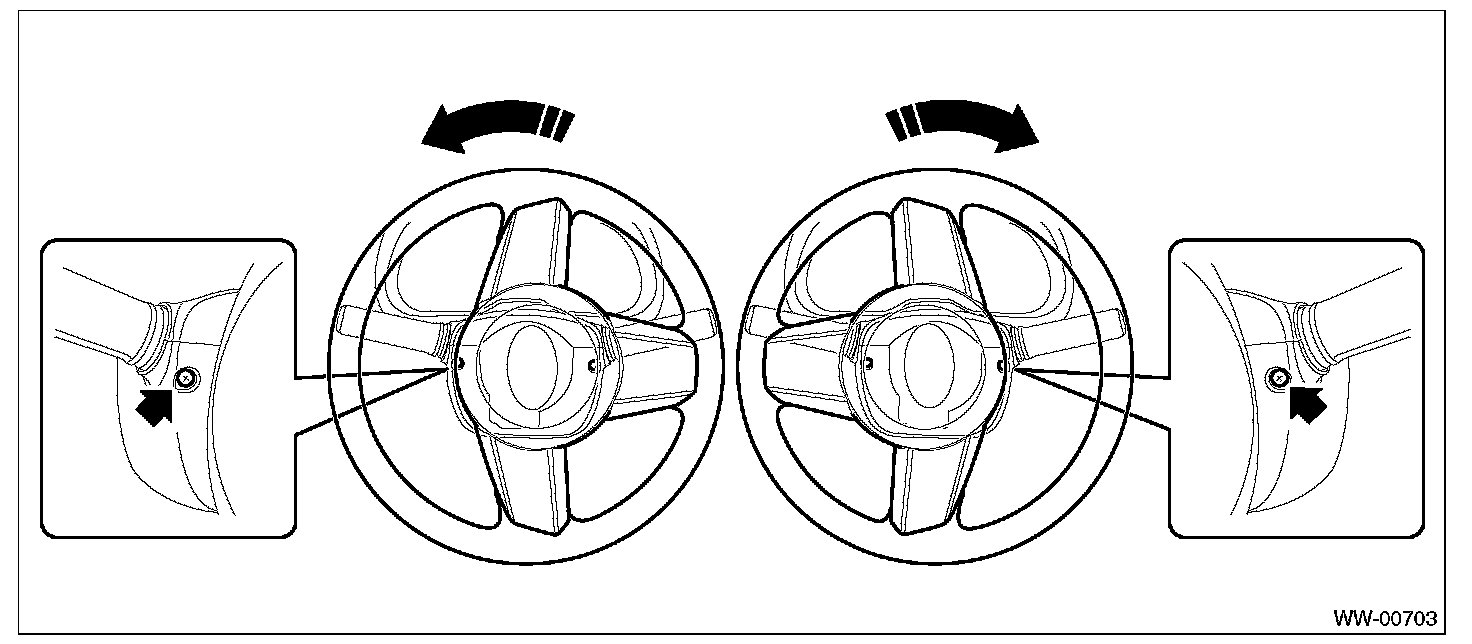

1. Remove the screws by turning the steering wheel to right and left.

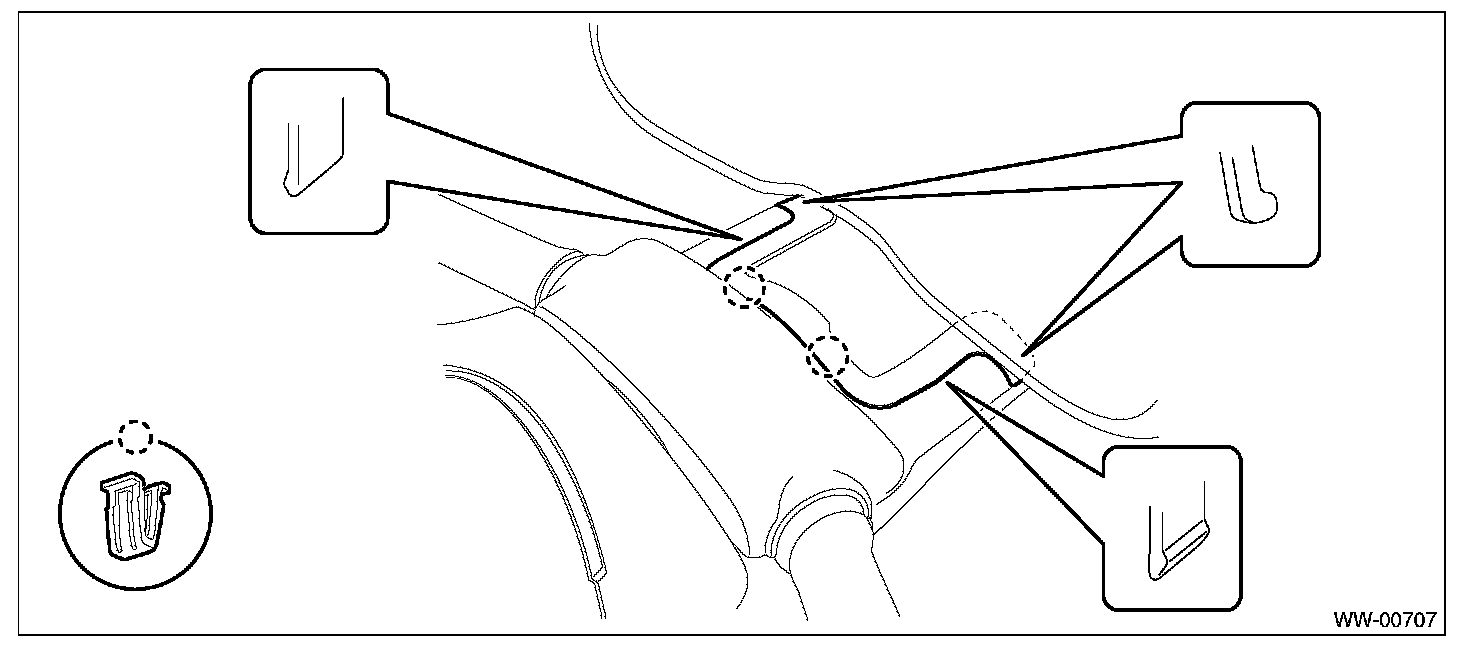

2. Release the claws and remove the steering column lower cover.

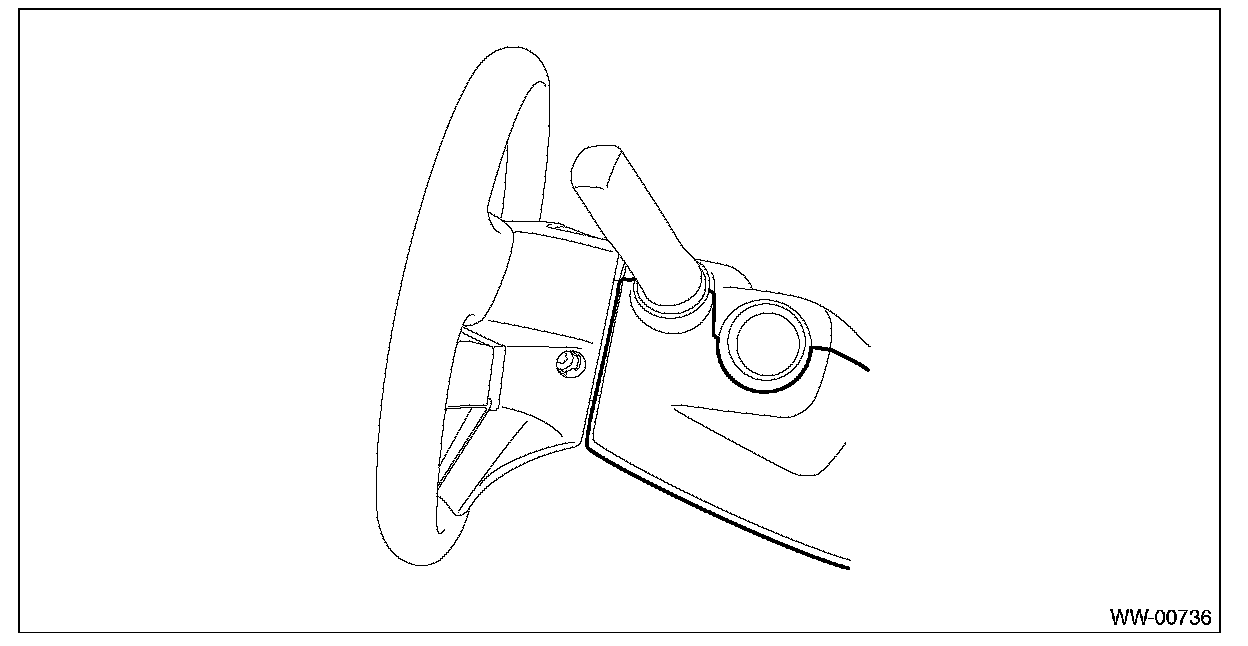

3. Separate the steering column upper cover and steering upper cover, and remove the steering column upper cover.






3. Remove the immobilizer antenna.

CAUTION: Do not apply excessive force to remove the immobilizer antenna and lock. Otherwise they may be broken because those parts are the products made of a plastic.

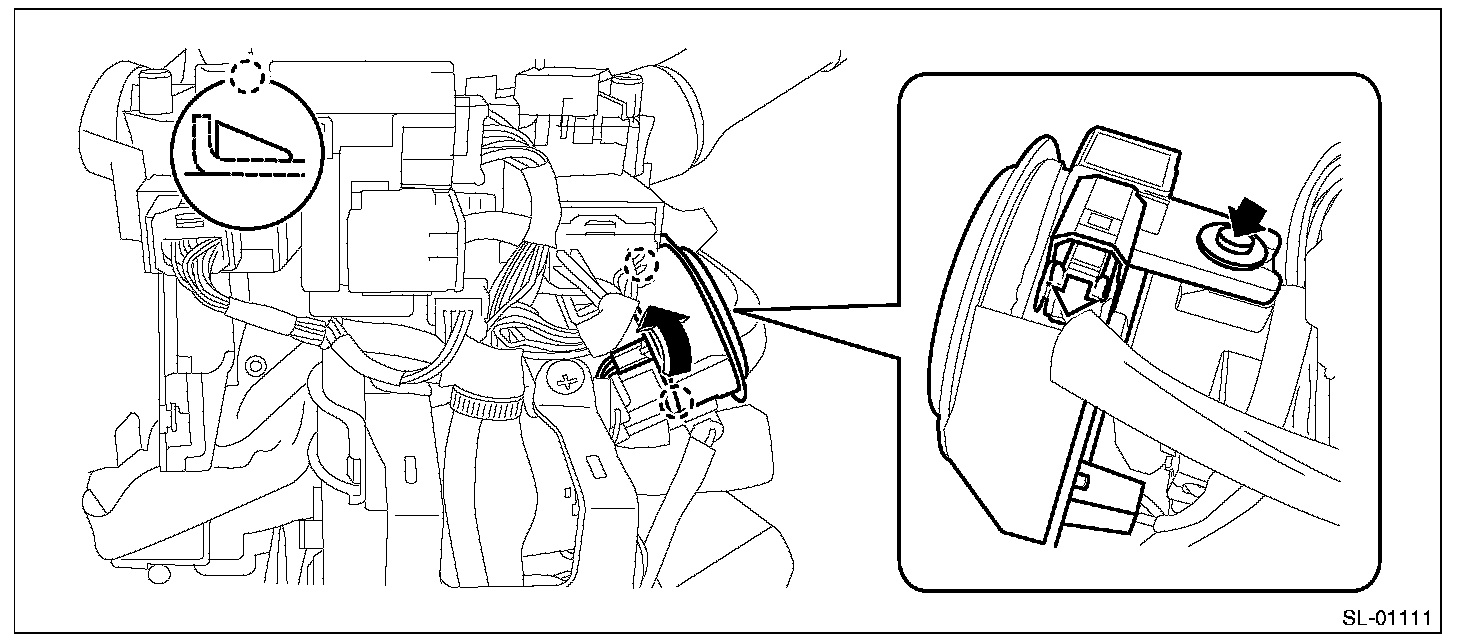

1. Disconnect the connector and remove the screw.
2. Remove the ignition illumination light and release the claws, then detach the immobilizer antenna.






INSTALLATION
Install each part in the reverse order of removal.
