Headlight System

Headlight System

INSPECTION

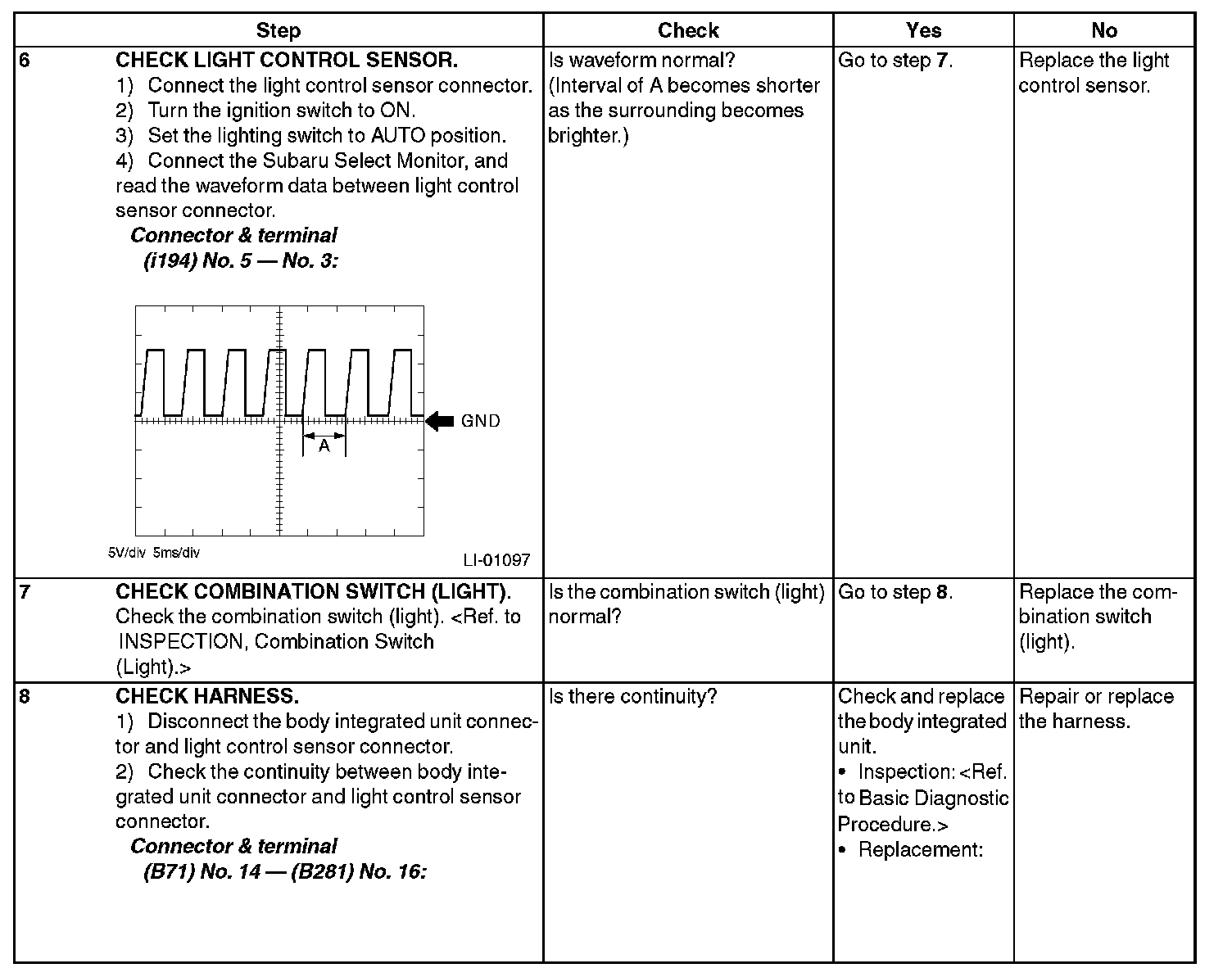

1. AUTO HEADLIGHT SYSTEM CHECK









2. CHECK LIGHTING SWITCH
Measure the resistance between lighting switch terminals. Testing and Inspection

3. CHECK DIMMER & PASSING SWITCH
Measure the resistance between dimmer & passing switch terminals. Testing and Inspection
