Cabin Temperature Sensor / Switch: Testing and Inspection

In-Vehicle Sensor (Auto A/C Model)

INSPECTION
1. Remove the in-vehicle sensor.

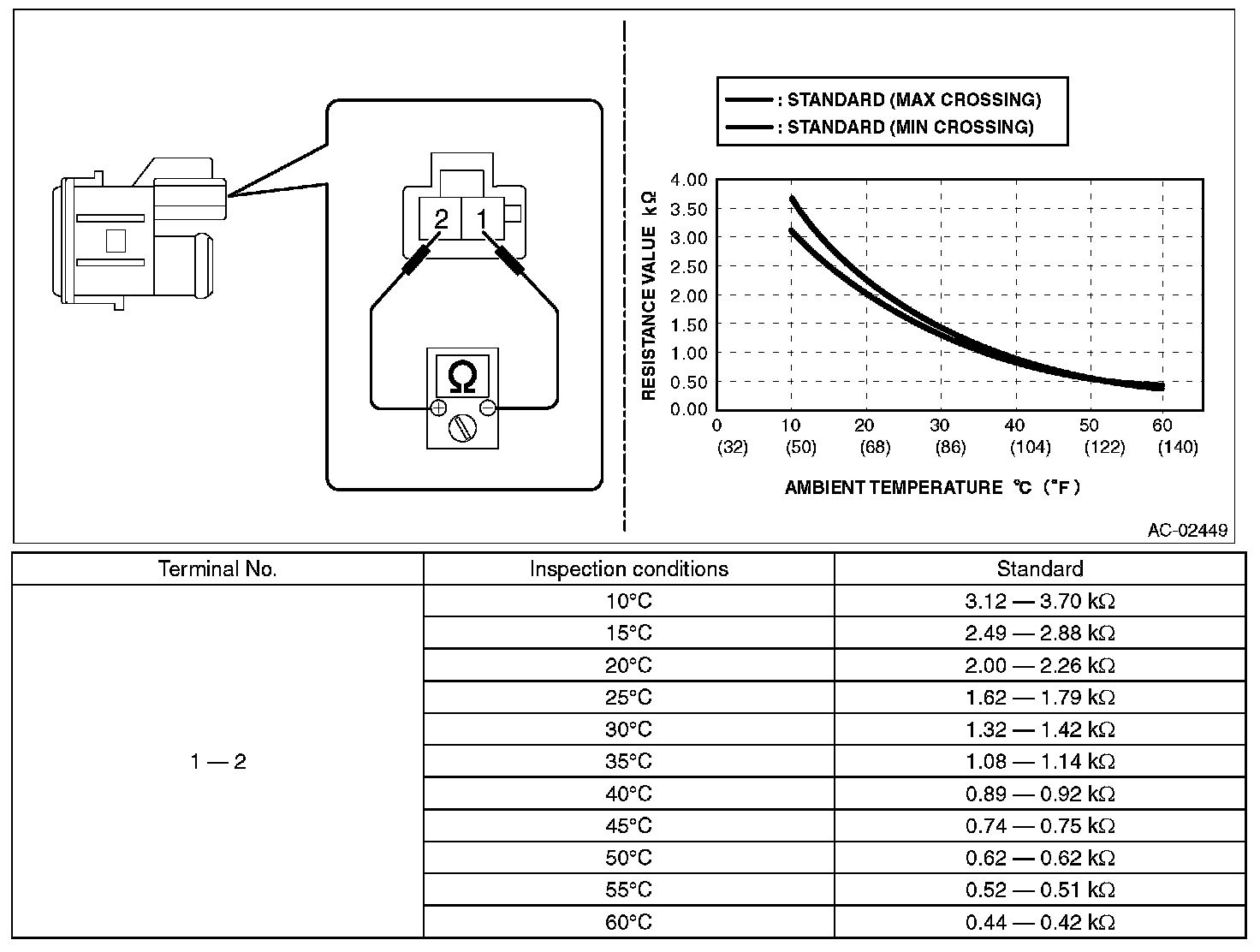

2. Check the resistance between in-vehicle sensor terminals.

CAUTION: During inspection, be careful not to touch the sensor end in order to avoid misjudgment due to body temperature.

Preparation tool: Circuit tester






3. Replace the in-vehicle sensor if the inspection result is not within the standard value.
