Power Transistor HVAC: Service and Repair

POWER TRANSISTOR (AUTO A/C MODEL)

REMOVAL
1. Disconnect the ground cable from battery.

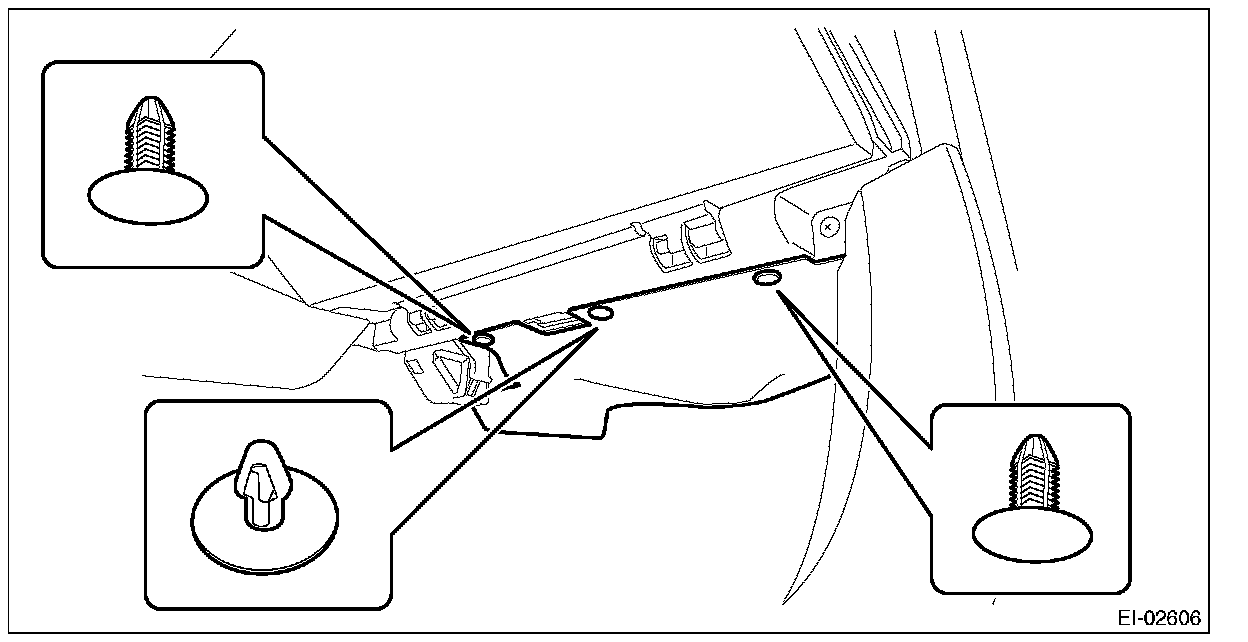

2. Remove the clips, and remove the glove box under cover.

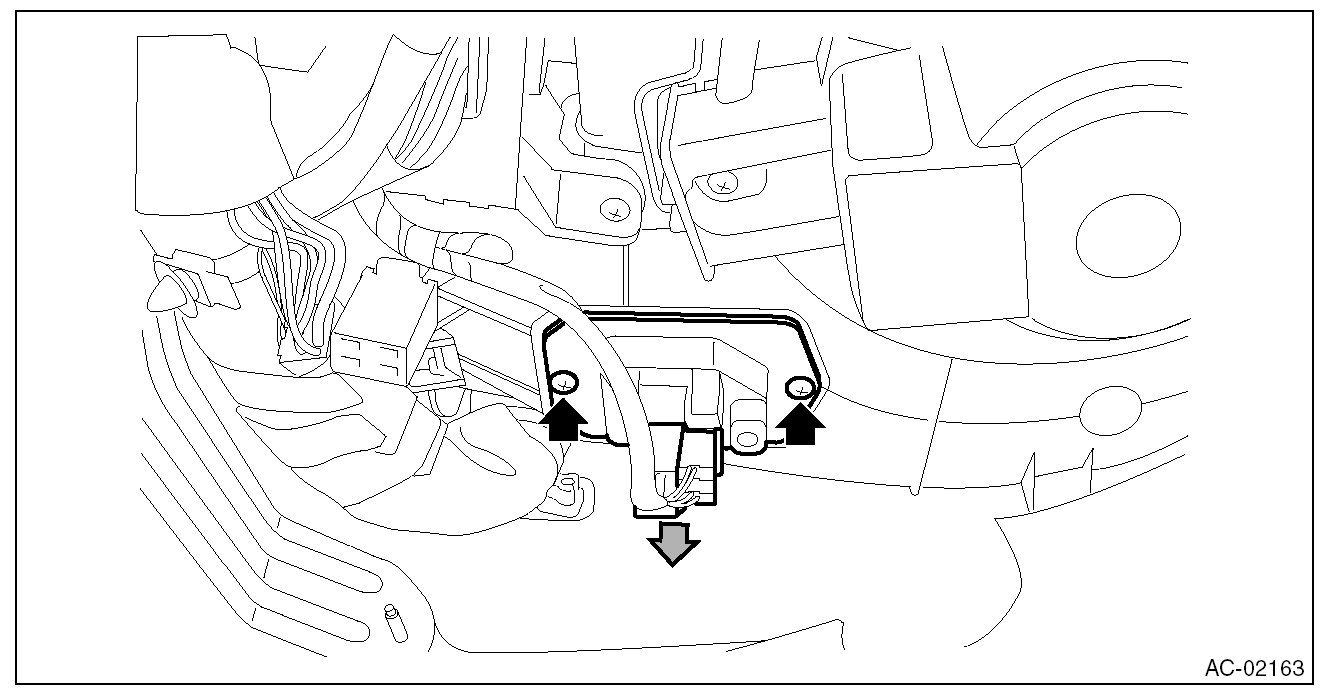

3. Remove the power transistor.
1. Disconnect the connector.
2. Remove the screws and remove the power transistor.






INSTALLATION
Install each part in the reverse order of removal.
