Rear Disc Brake Assembly: Assembly
WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Before installation, check each part. Refer to , INSPECTION , Rear Disc Brake Assembly.
- Clean the inside of the caliper body cylinder using brake fluid.
- Apply a coat of brake fluid to piston seal and install the piston seal to the caliper body cylinder groove.
- Apply a coat of brake fluid to the inner surface of caliper body cylinder and the entire outer surface of the piston.
- Apply grease contained in the piston seal kit to the piston boot, and install it to the groove at the end of the cylinder.
- Insert the piston into caliper body cylinder.CAUTION: Do not force the piston into caliper body cylinder.
- Position the piston boot in the grooves on caliper body cylinder and piston.

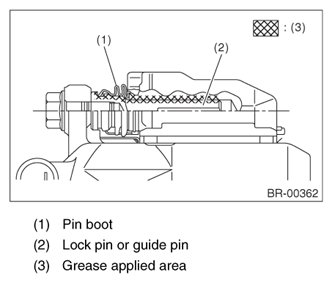

- Apply grease contained in the piston seal kit to the lock pin, guide pin outer surface, support cylinder inner surface, and pin boot grooves.
- Install the pin boot to the lock pin and guide pin, and insert it into the support cylinder.
CAUTION:
Insert the lock pin and guide pin into specified position, and make sure that they slide and seat properly.
