Front Brake Pad: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the front brake pad.
  1. Remove the caliper bolt.
  2. Raise the caliper body and support it.
    NOTE: Do not disconnect the brake hose from the caliper body.

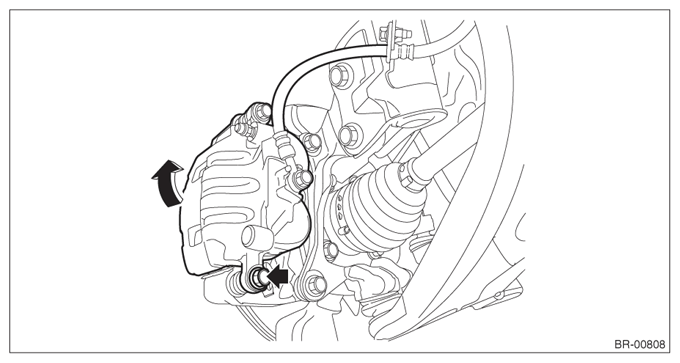

    Fig 1: Locating Front Brake Pad And Caliper Bolt
    G07915602Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the brake pad from support.

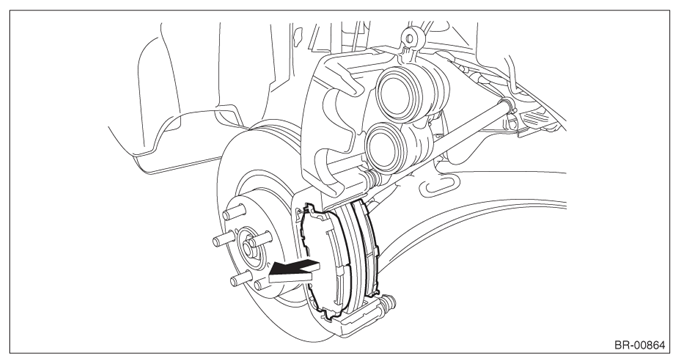

    Fig 2: Removing Brake Pad From Support
    G07915603Courtesy of SUBARU OF AMERICA, INC.
