Ignition System: Testing and Inspection

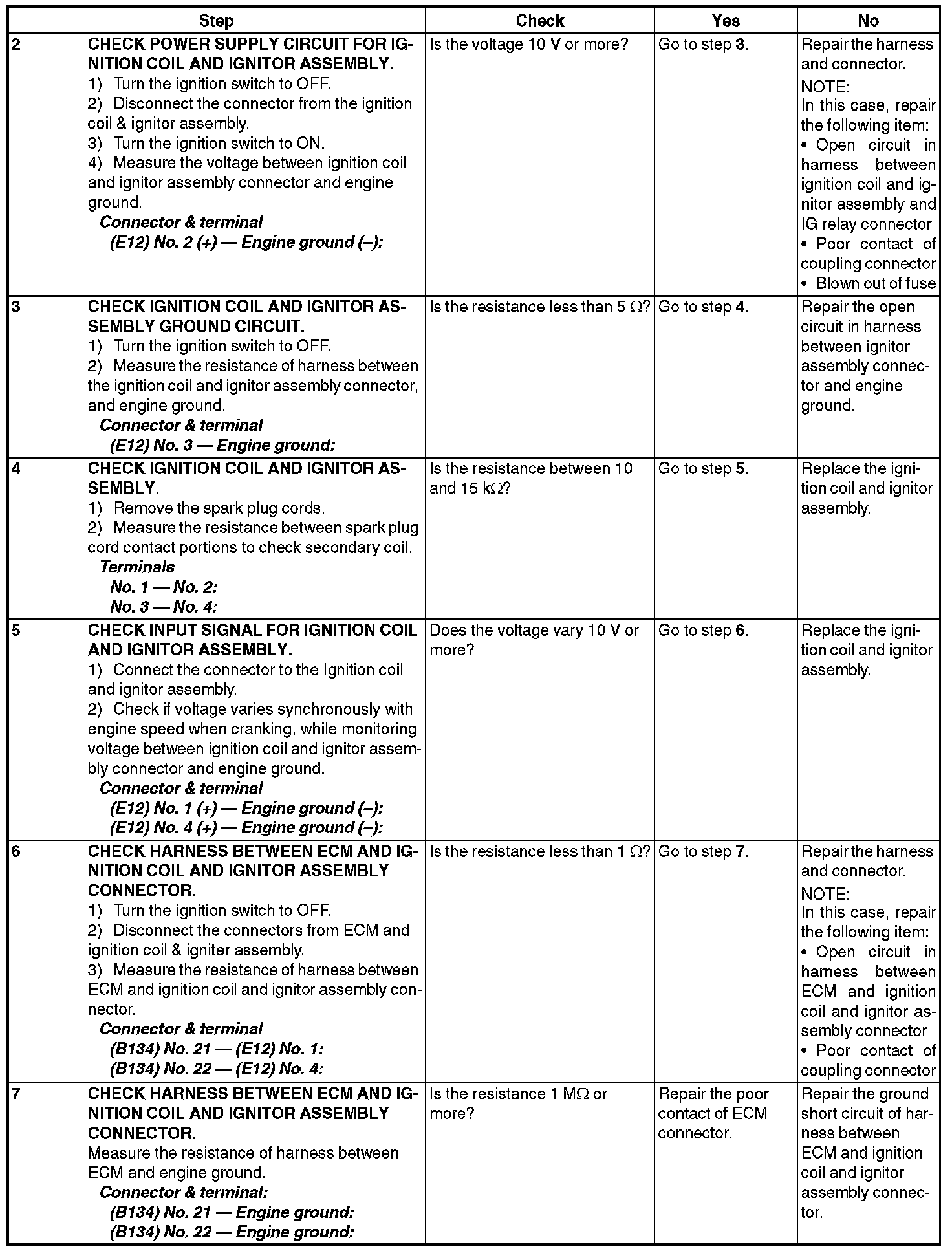

IGNITION CONTROL SYSTEM

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode. and Inspection Mode.

WIRING DIAGRAM:
