Check FWD Switch

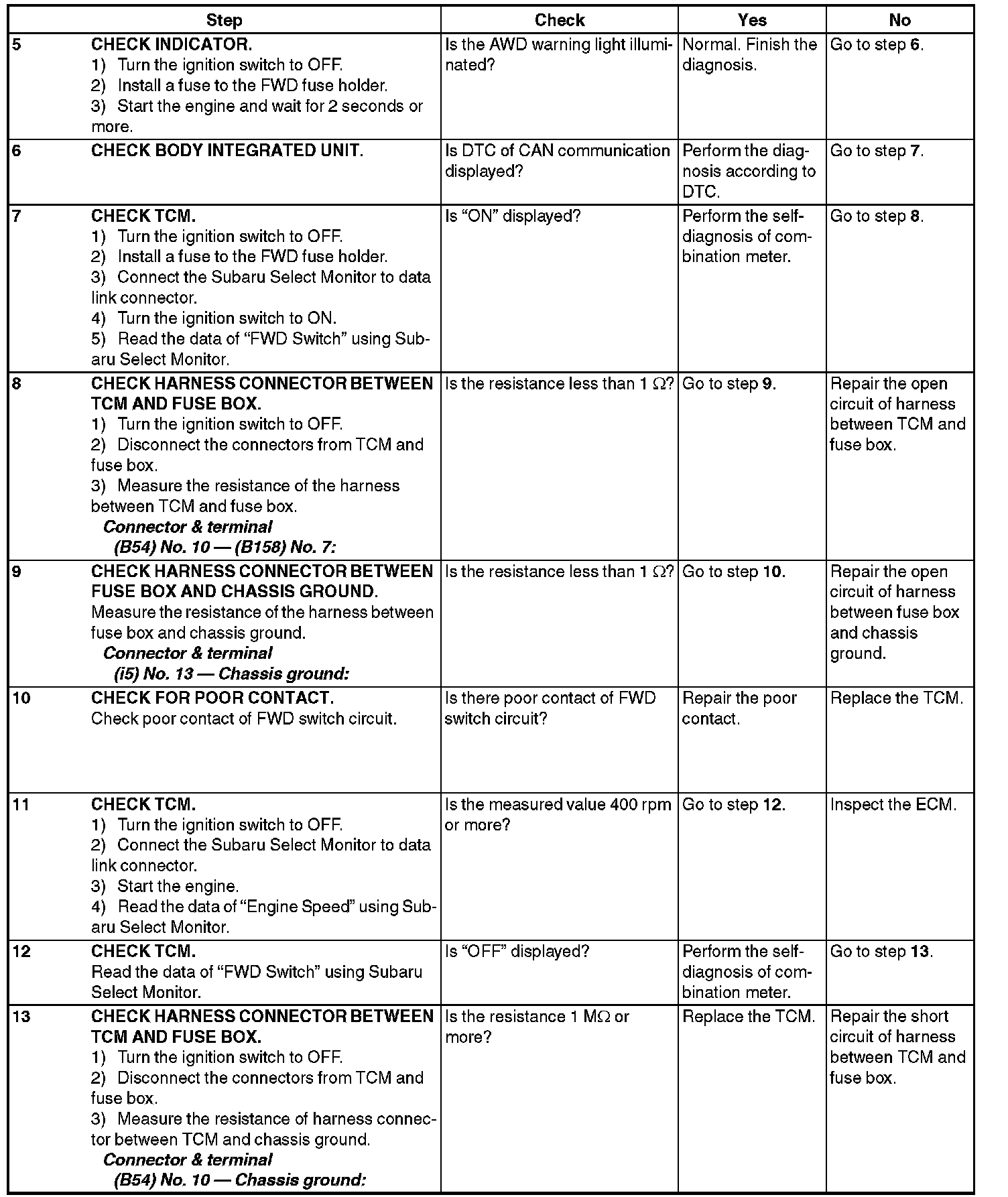

Diagnostic Procedure without Diagnostic Trouble Code (DTC)

CHECK FWD SWITCH

DIAGNOSIS:
FWD signal circuit is open or shorted.

TROUBLE SYMPTOM:
LED does not illuminate even if FWD switch is ON.

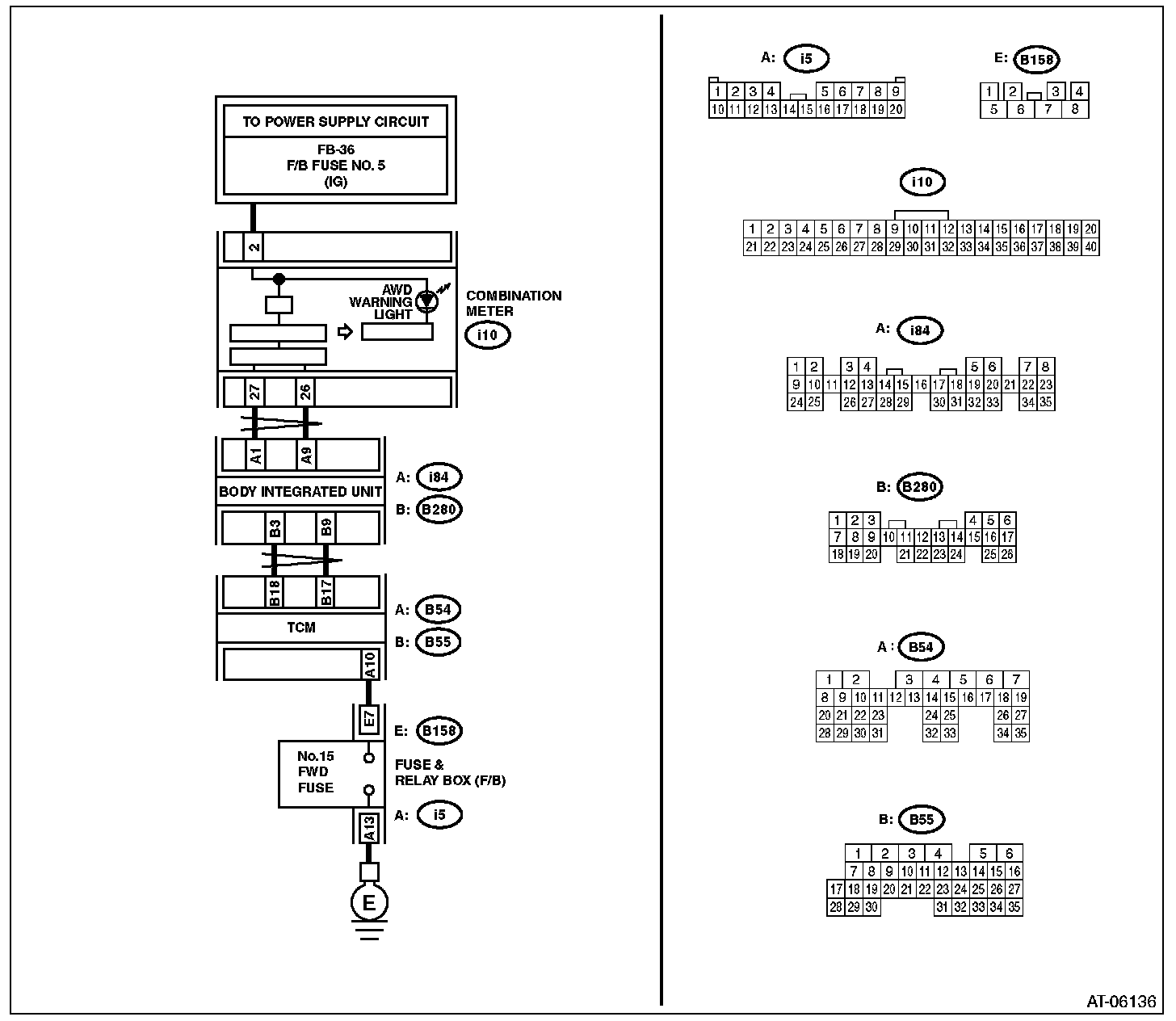

WIRING DIAGRAM:
