Traction Control Switch: Service and Repair

TCS OFF Switch

REMOVAL

1) Remove the instrument panel lower cover.
2) Remove the screws, and then remove the TCS OFF switch.





INSTALLATION

Install in the reverse order of removal.

INSPECTION

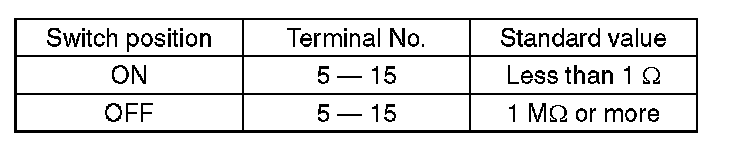

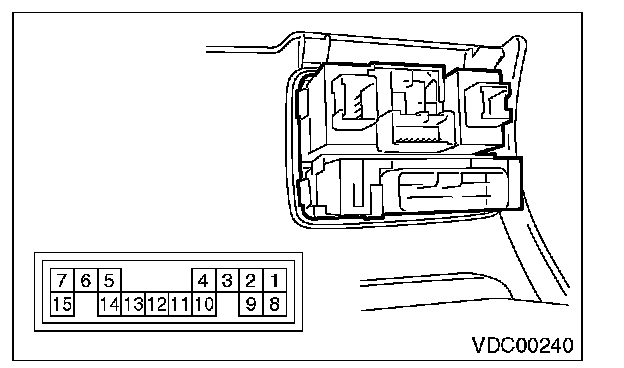

Measure the resistance between the TCS OFF switch terminals.





If NG, replace the TCS OFF switch.
