Seat Belt Systems

General Description

COMPONENT

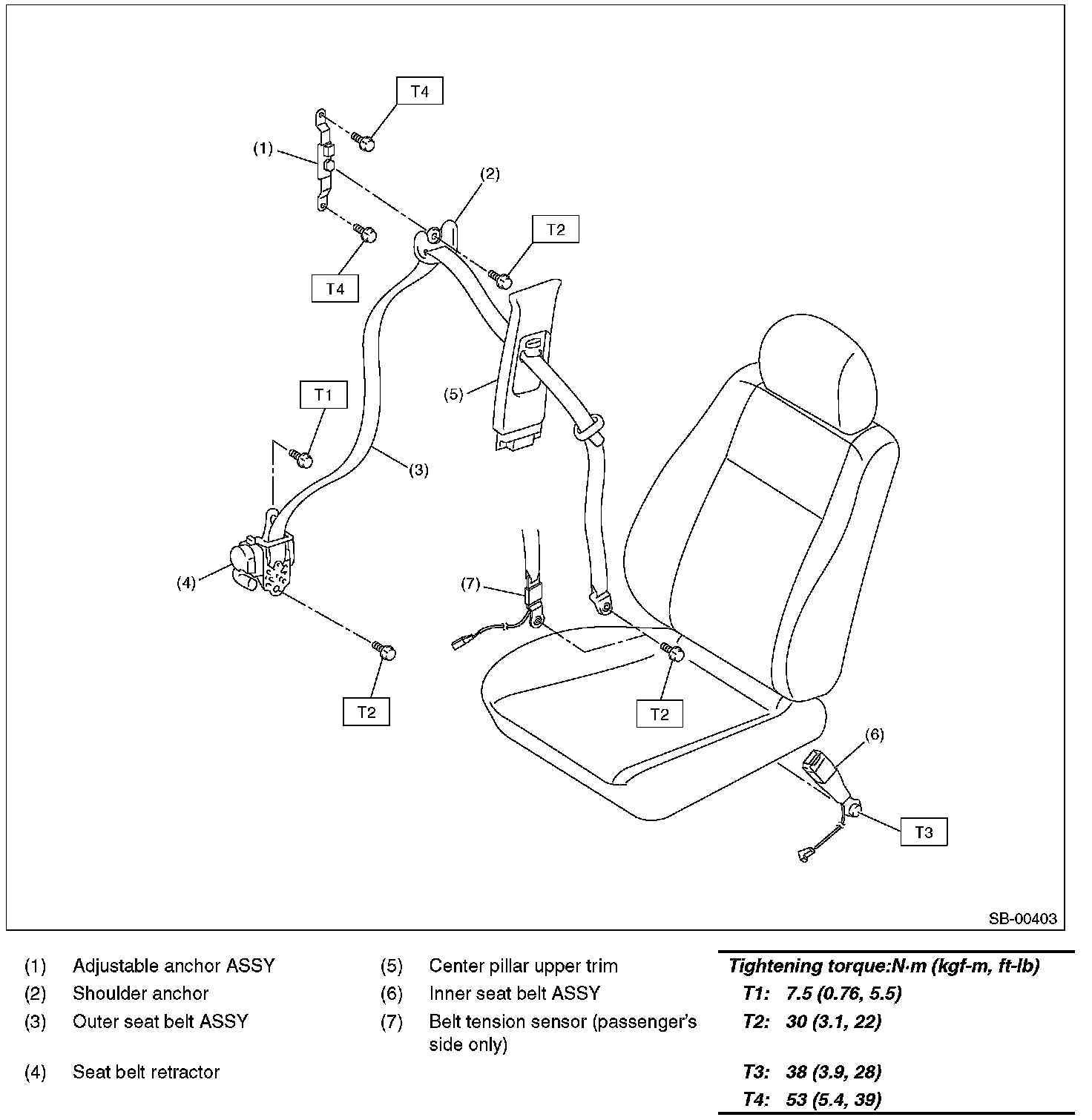

1. FRONT SEAT BELT

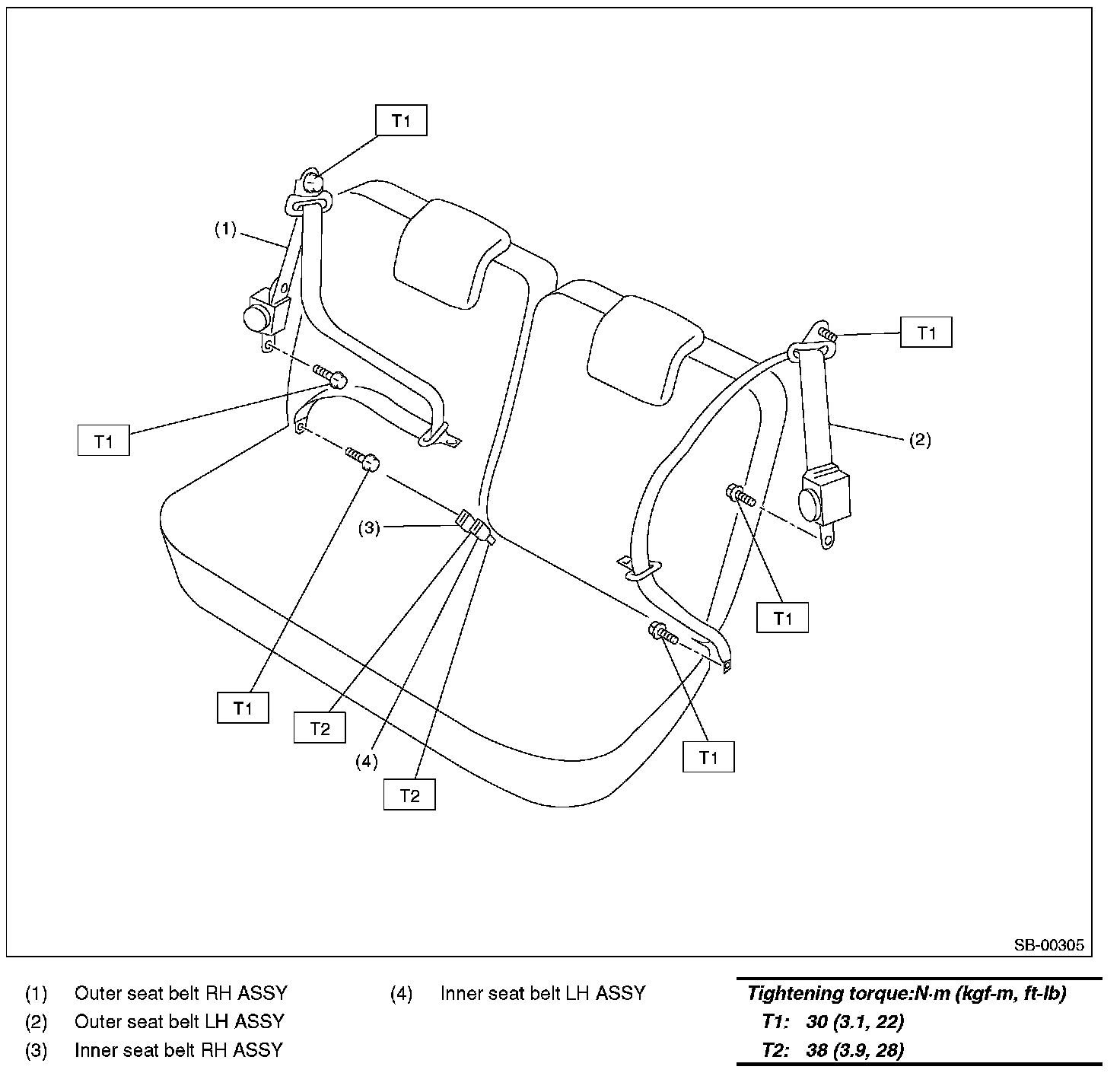

2. SECOND SEAT BELT

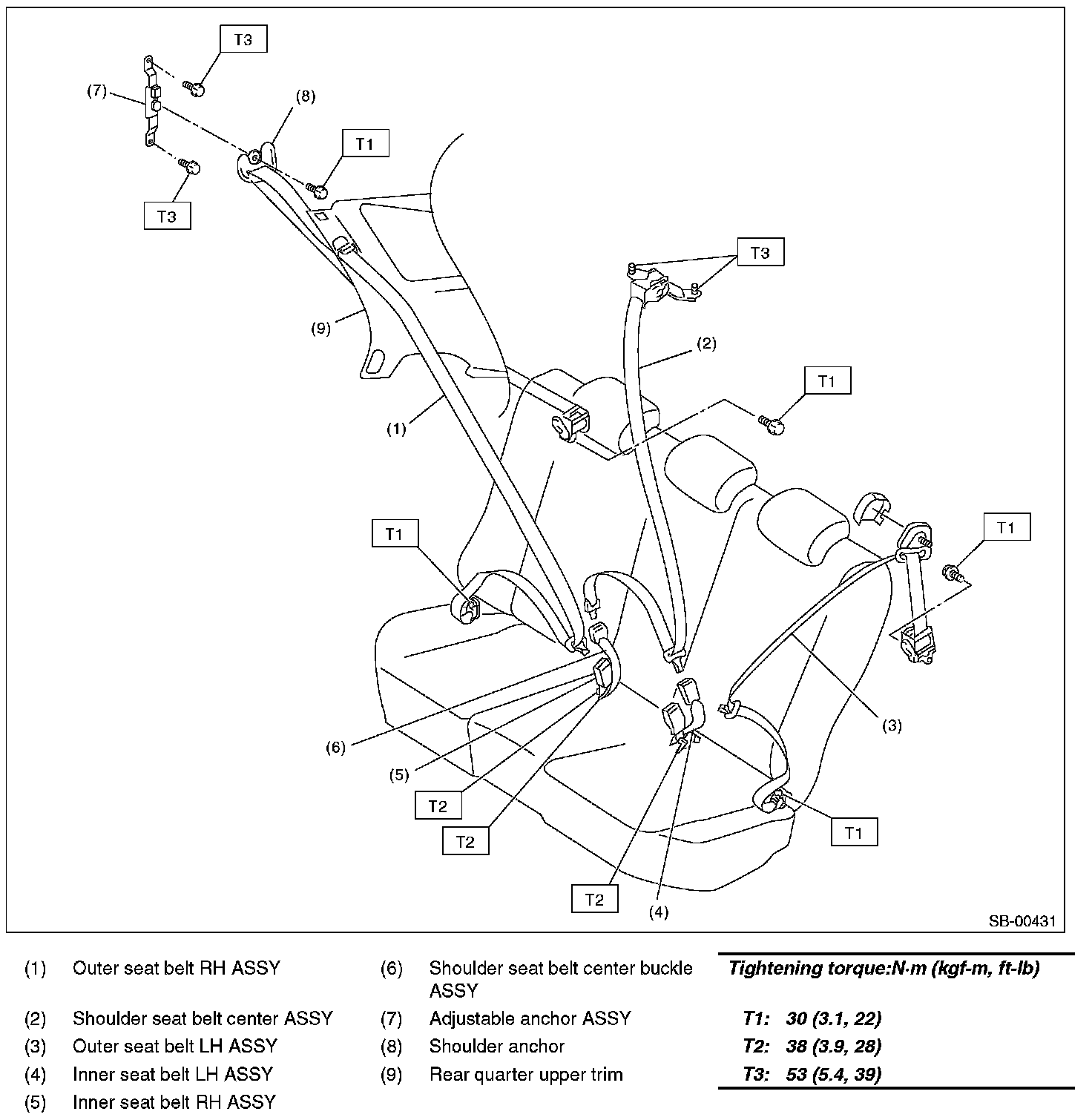

3. THIRD SEAT BELT
