Ignition System: Testing and Inspection

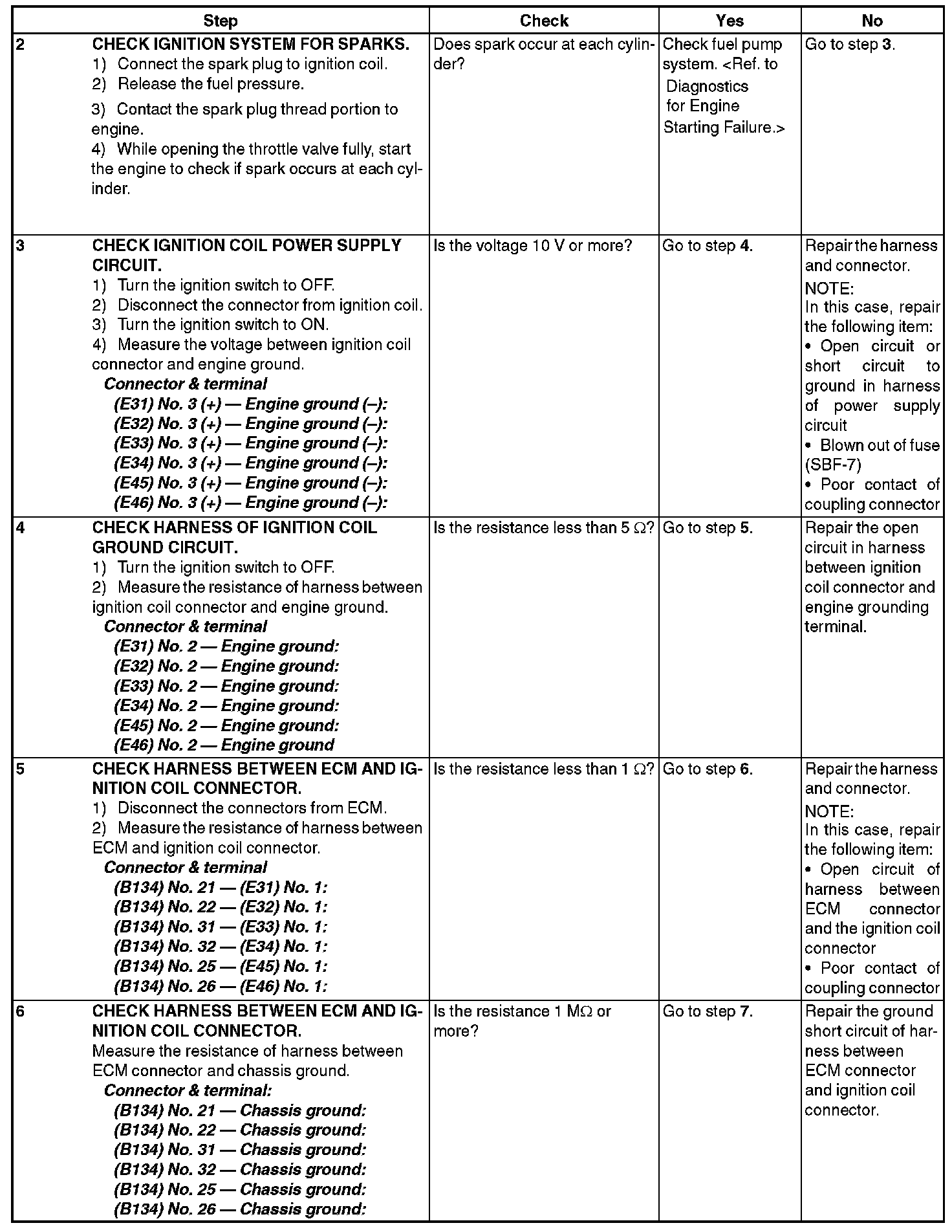

DIAGNOSTICS FOR ENGINE STARTING FAILURE

IGNITION CONTROL SYSTEM

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode With Manufacturer's Scan Tool, and Inspection Mode Preparation For the Inspection Mode.

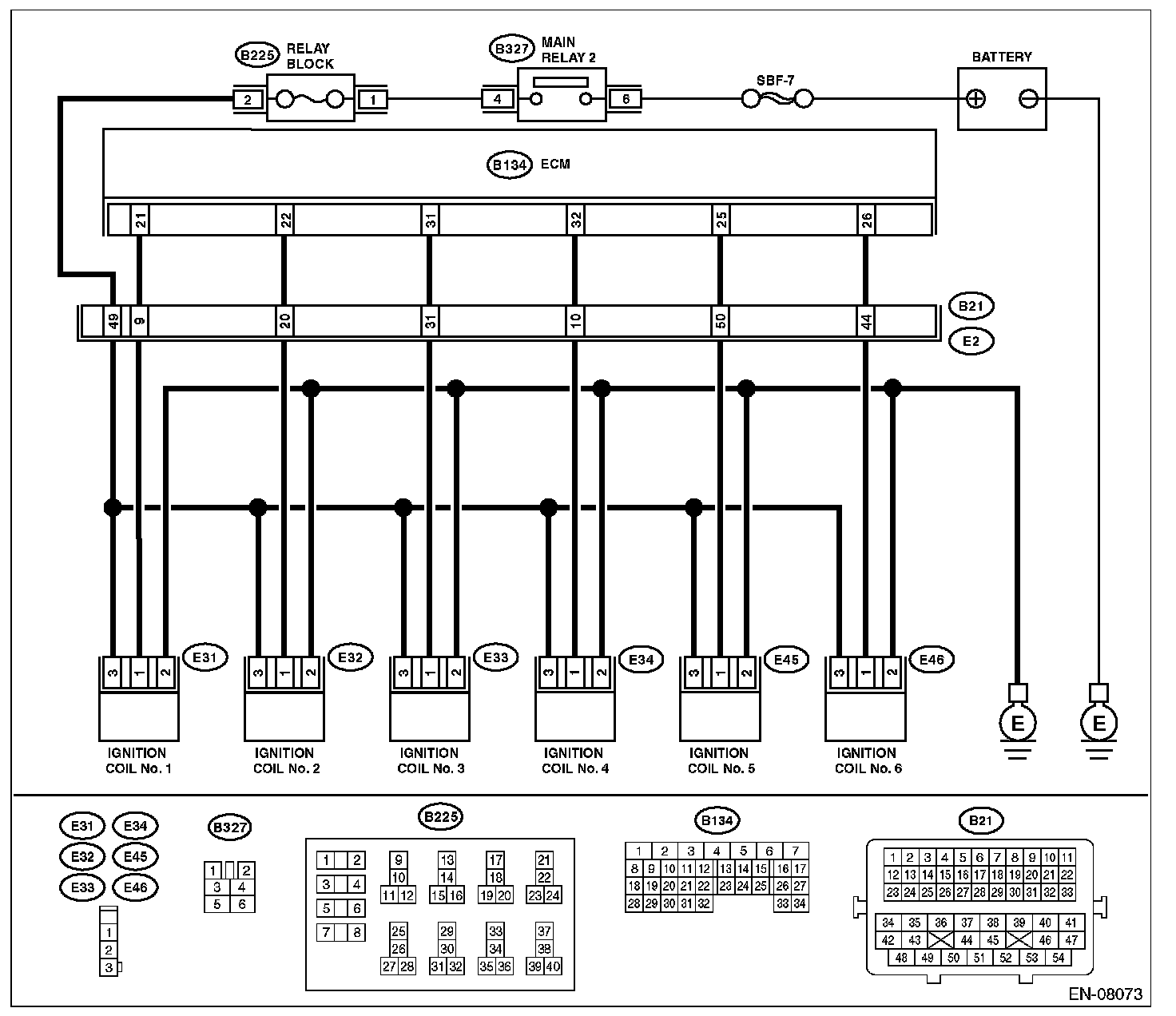

WIRING DIAGRAM:
