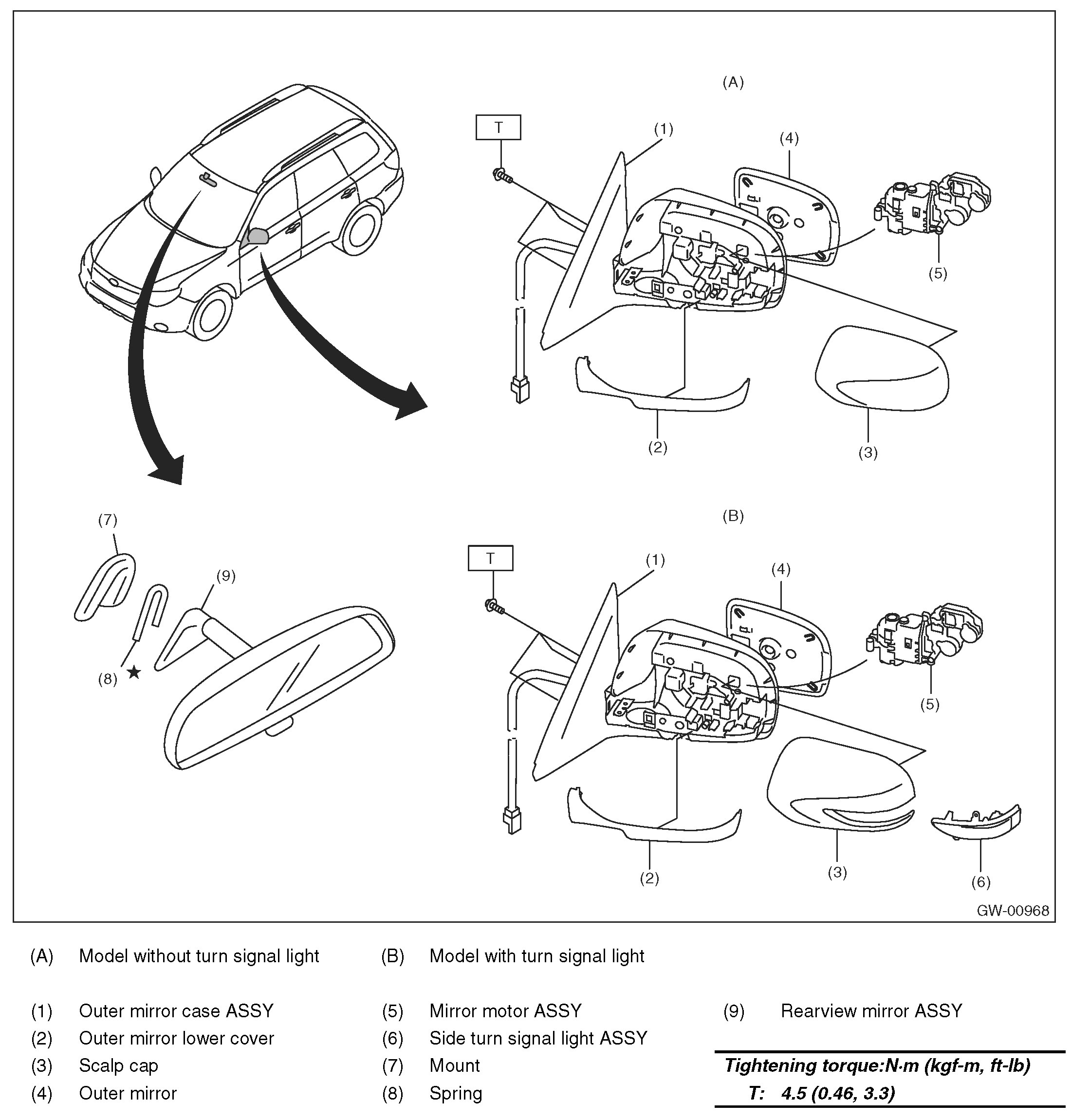

Outer Mirror Assembly

Outer Mirror Assembly







REMOVAL

1. Remove the front door trim.
2. Disconnect the outer mirror connector.
3. Remove the bolts to remove outer mirror assembly.







INSTALLATION

Install each part in the reverse order of removal.

Tightening torque:
4.5 N.m (0.46 kgf-m, 3.3 ft-lb)
