Splash Guard: Service and Repair

Front Under Cover







REMOVAL

1. Lift up the vehicle.

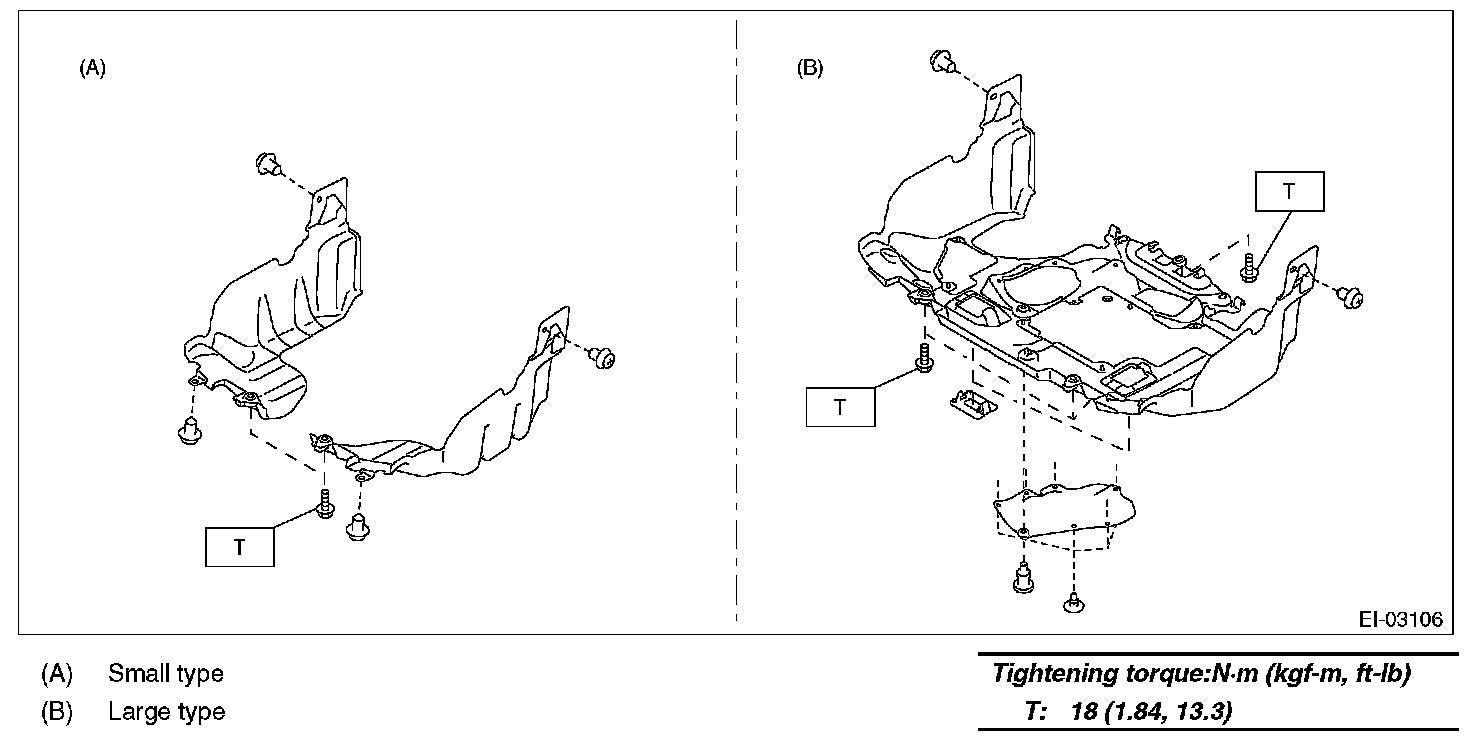

2. Remove clips and bolts in front fender, then remove the front under cover.










INSTALLATION

Install each part in the reverse order of removal.

Tightening torque:
18 N.m (1.84 kgf-m, 13.3 ft-lb)
