Home >> Subaru >> 2012 >> Forester F4-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly >> Rear Axle
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

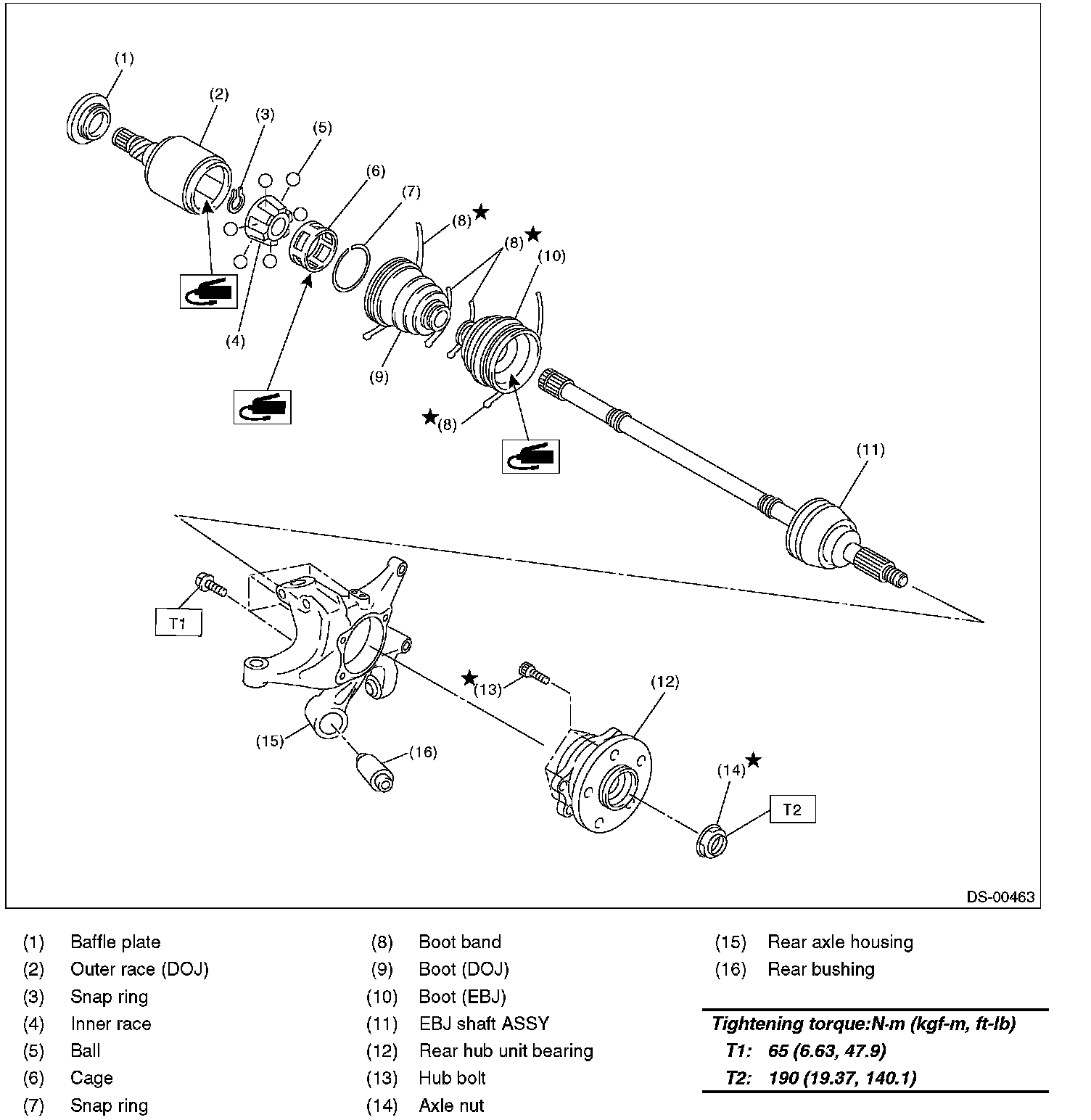

Rear Axle

REAR AXLE
