Refrigerant Pressure Sensor / Switch: Locations

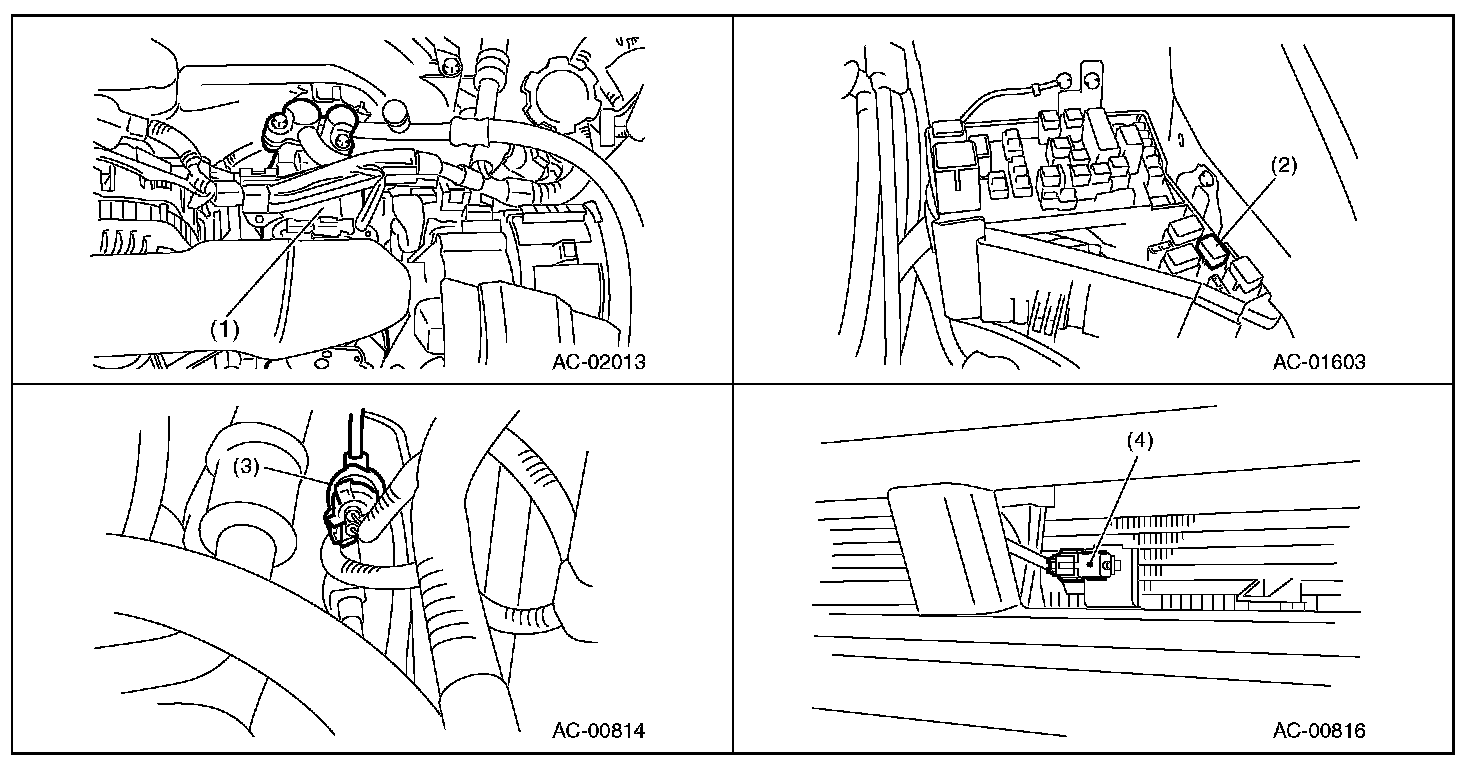

ELECTRICAL COMPONENT LOCATION
LOCATION

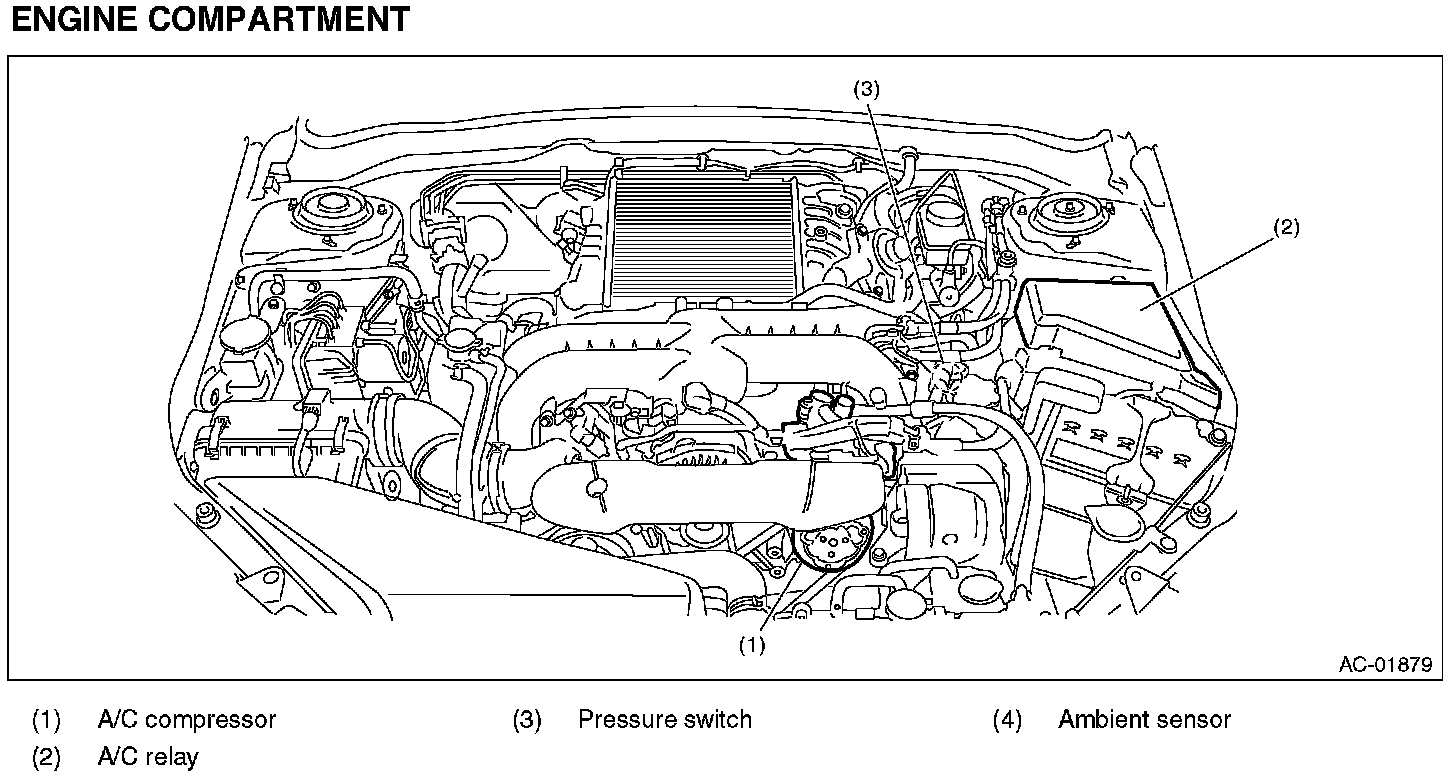

ENGINE COMPARTMENT
