Forester F4-2.5L DOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
R1-R312 & AB17-AB56
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

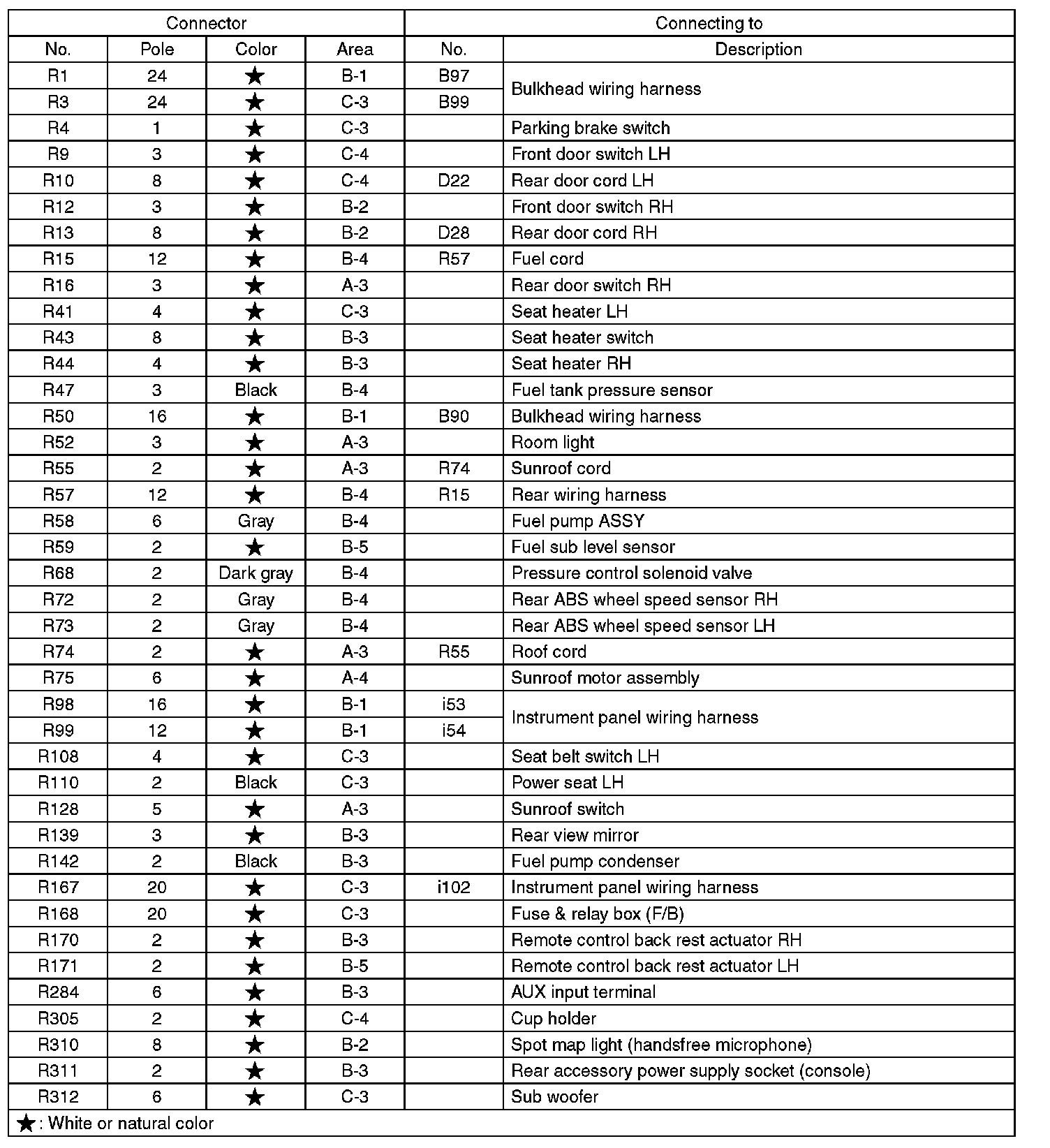

R1-R312 & AB17-AB56

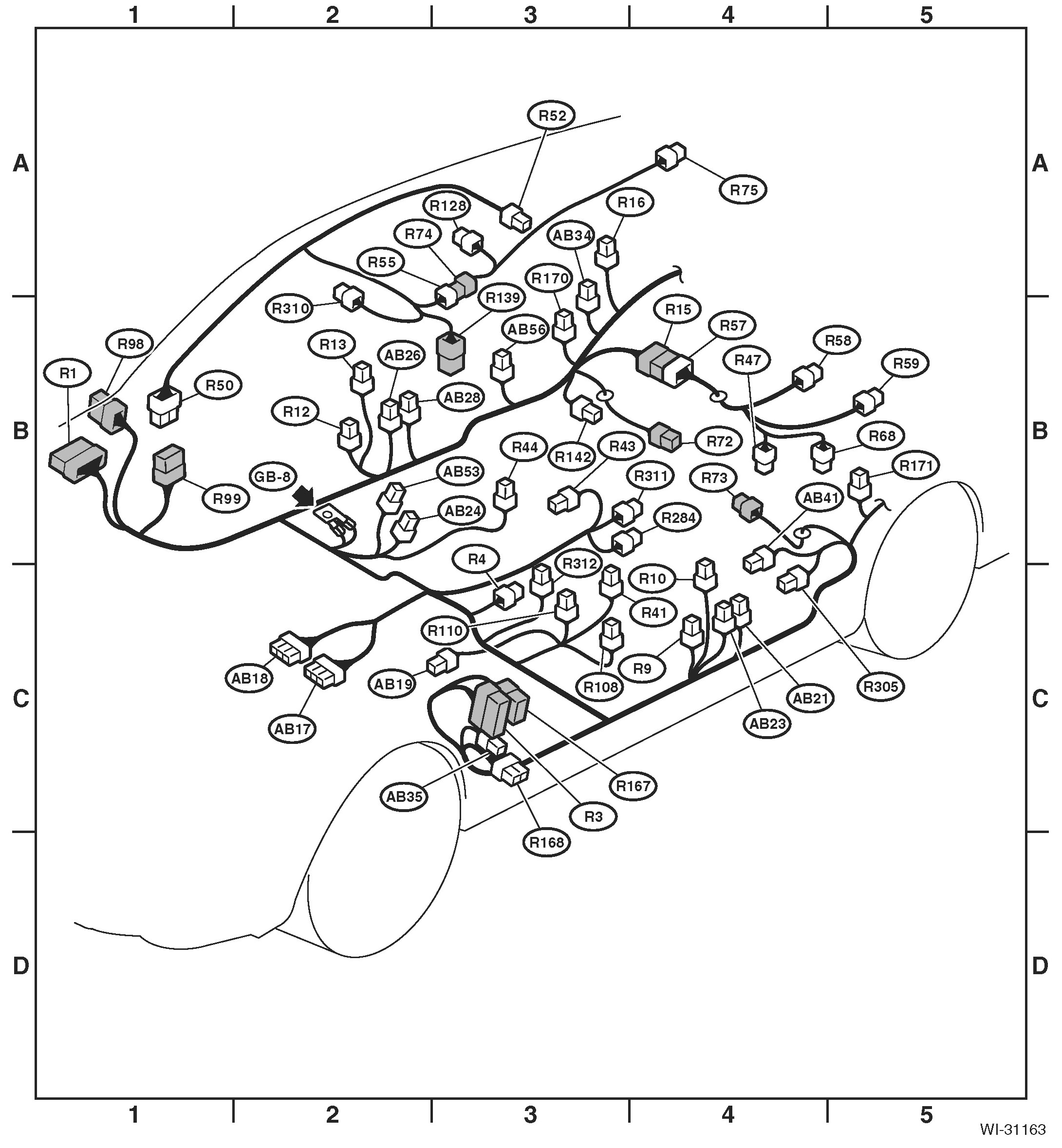

Rear Wiring Harness
