Oil Pipe

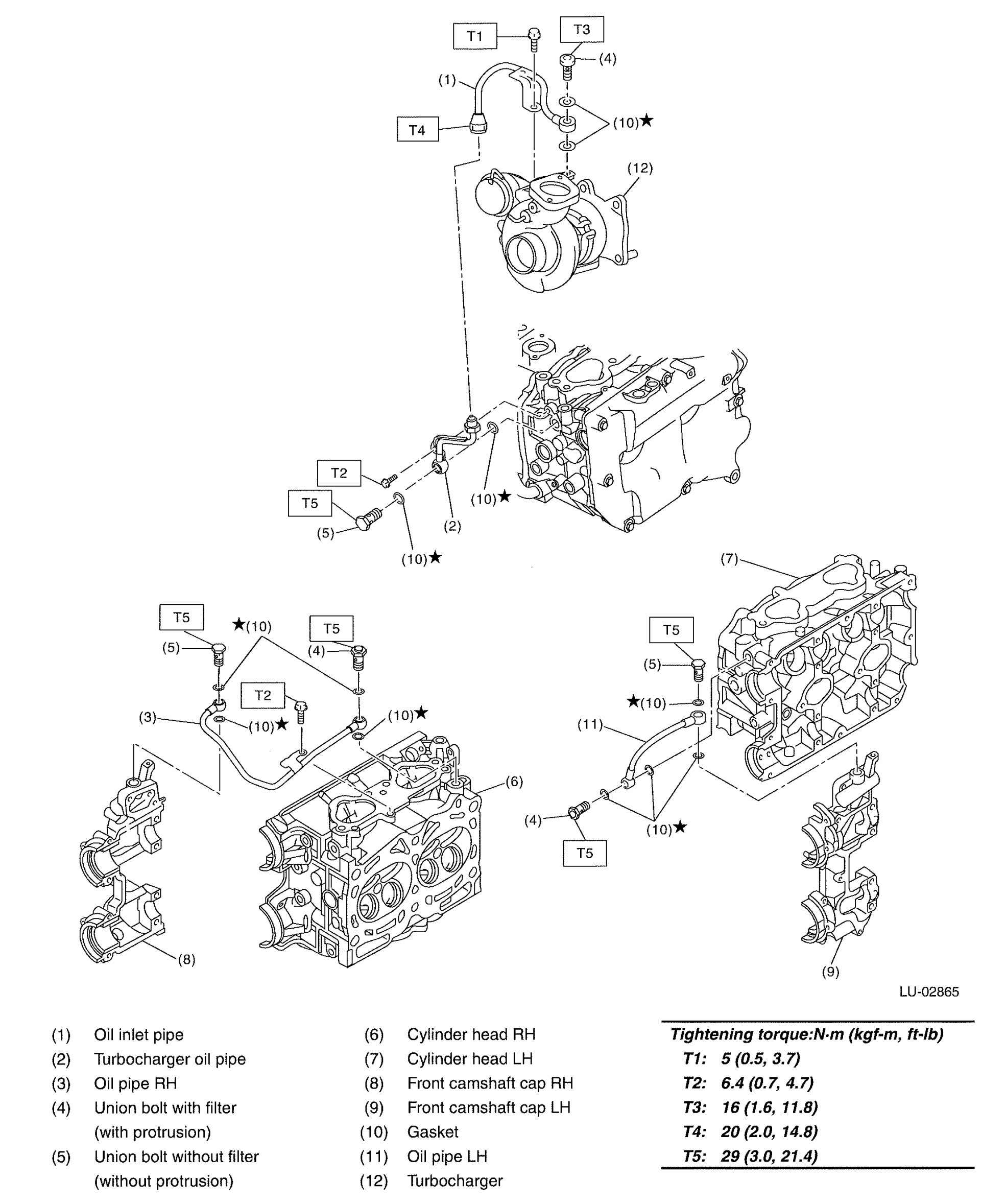

Fig 1: Exploded View Of Oil Pipe Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
