Steering Control Module: Service and Repair

Power Steering Control Module

REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the power steering control module.
(1) Disconnect the connector of the power steering control module.

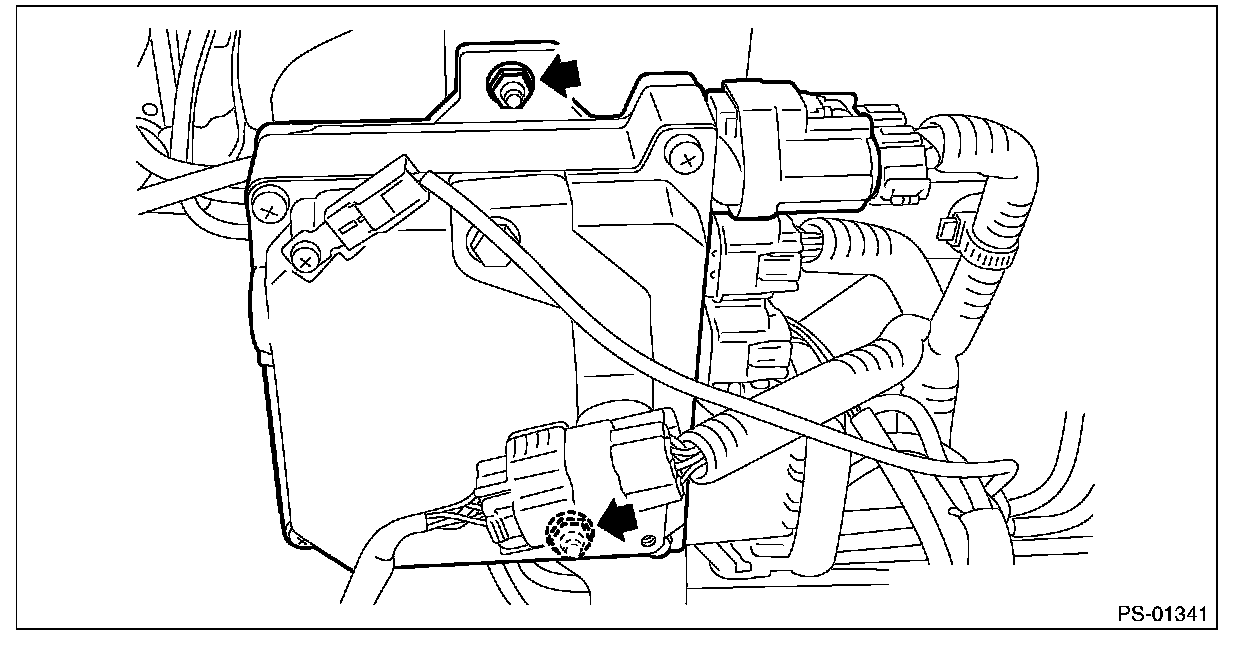

(2) Remove the nuts, and remove the power steering control module.





INSTALLATION

1) Install the power steering control module.

Tightening torque:
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)

2) Connect the harness connector.

CAUTION:
Make sure that the connector is securely locked.

3) Attach the harness bracket.

Tightening torque:
7.5 Nm (0.76 kgf-m, 5.5 ft-lb)
