Home >> Subaru >> 2012 >> Legacy F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Continuously Variable Transmission/Transaxle, CVT >> Transfer and Extension Case
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

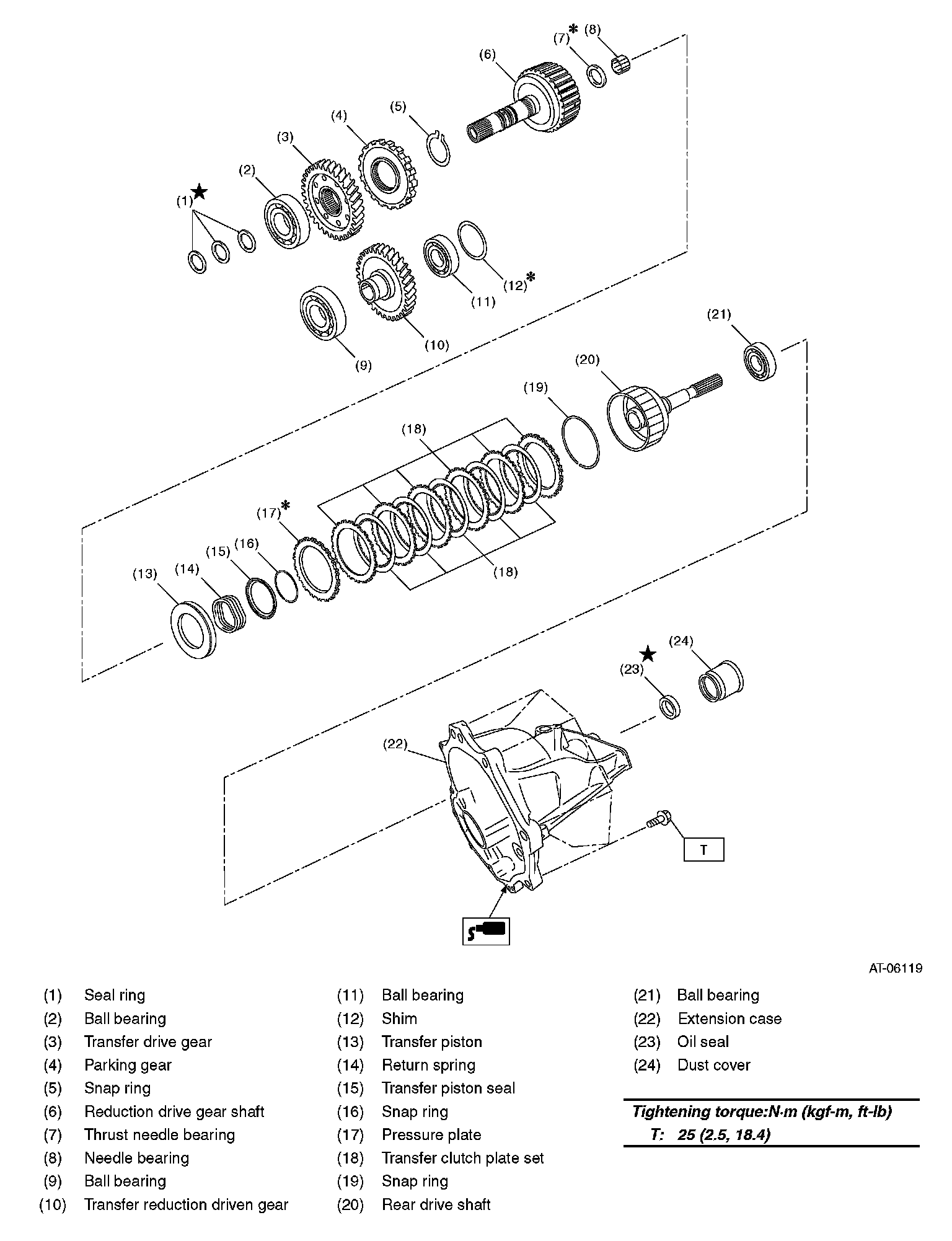

Transfer and Extension Case

TRANSFER AND EXTENSION CASE
