R9-R387 & AB17-AB61

REAR WIRING HARNESS

SEDAN MODEL

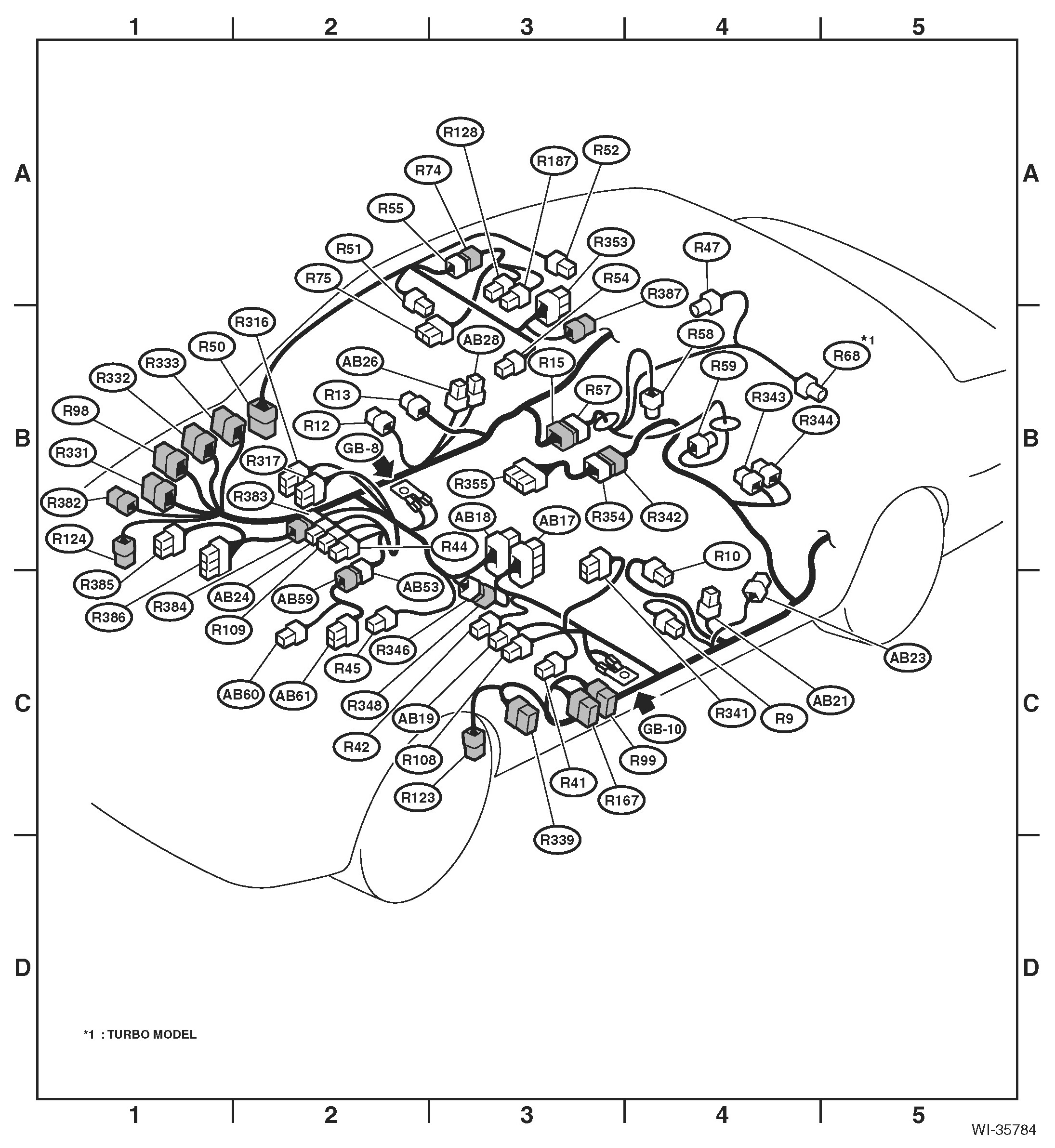

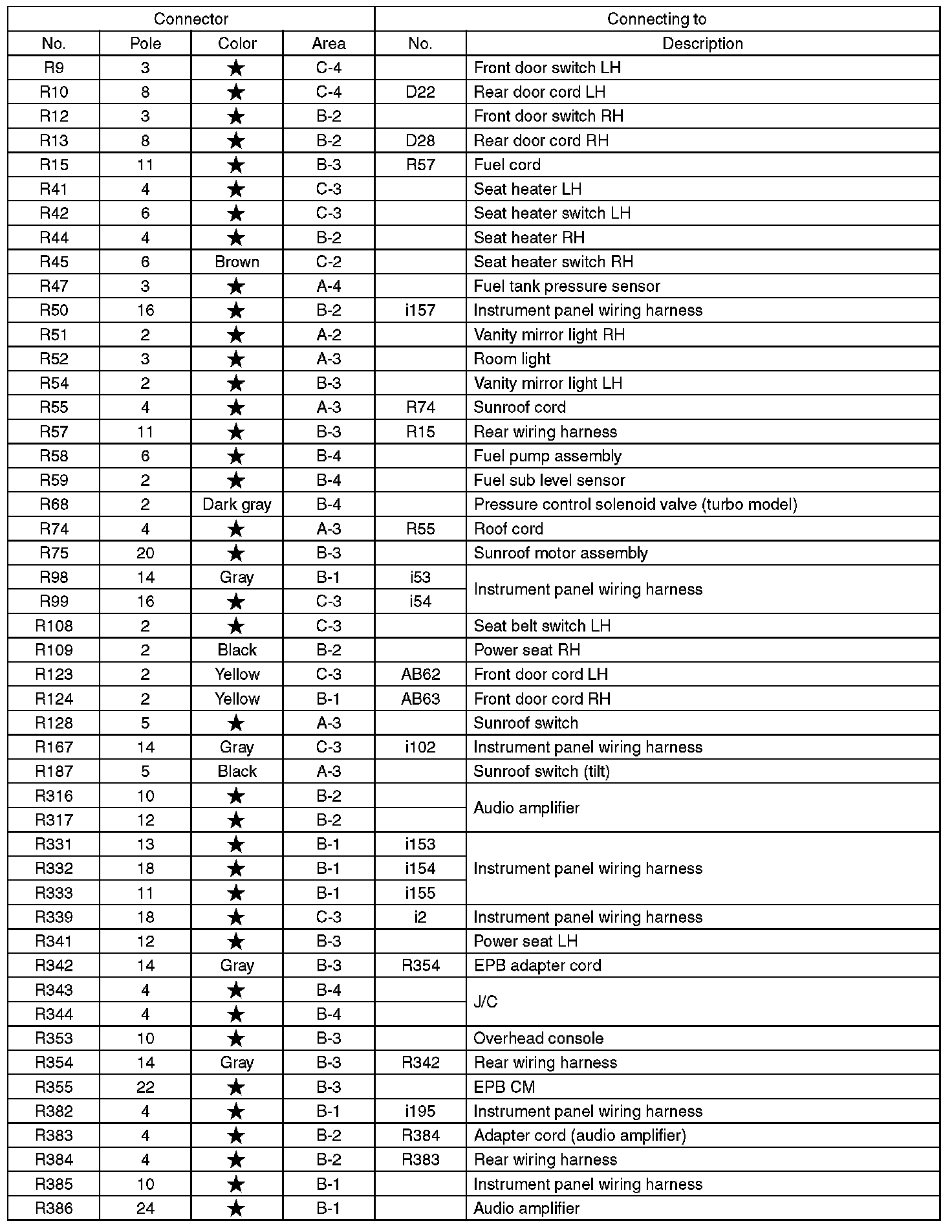

Vehicle identification number: Sedan model 002017 or later

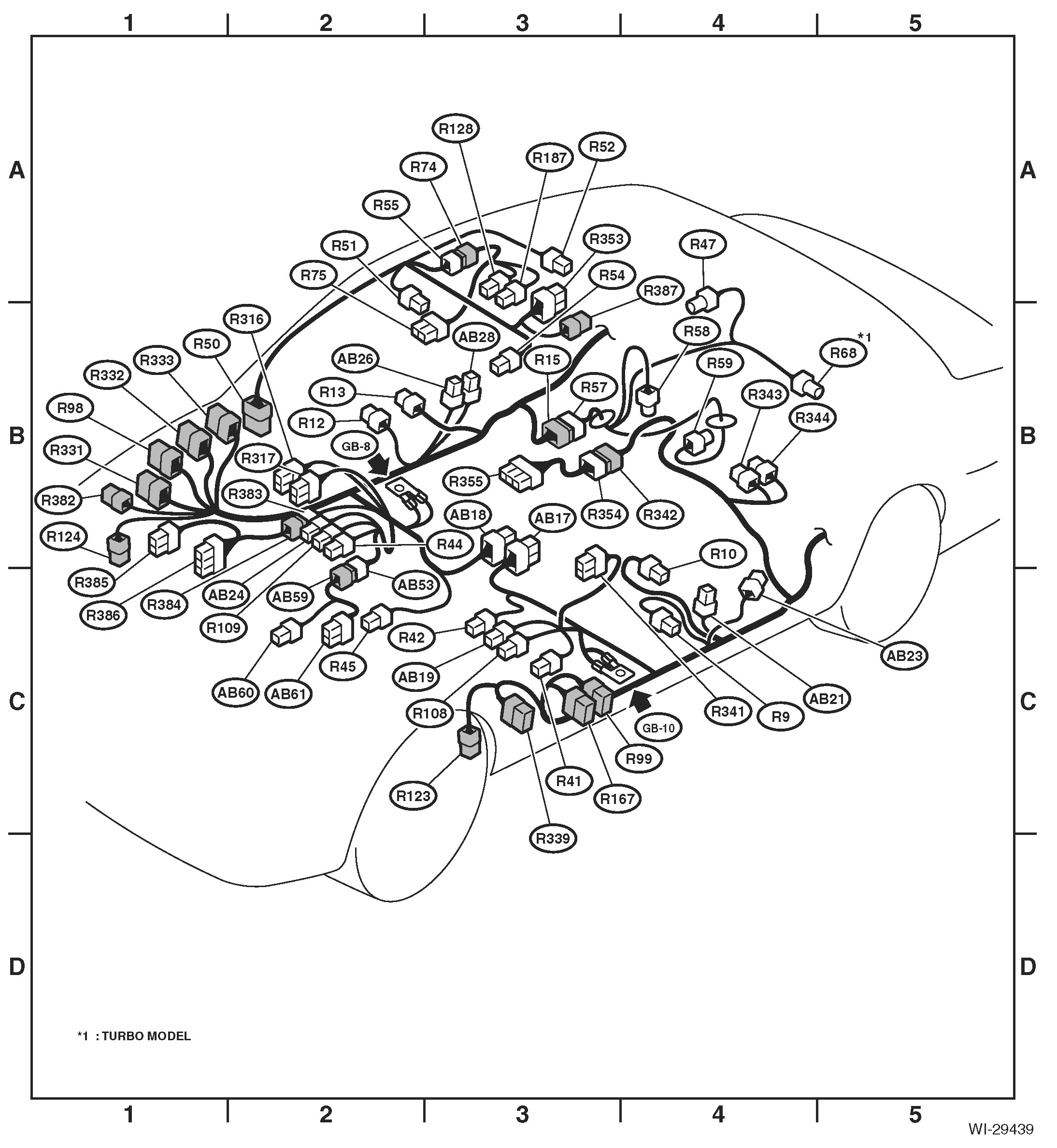

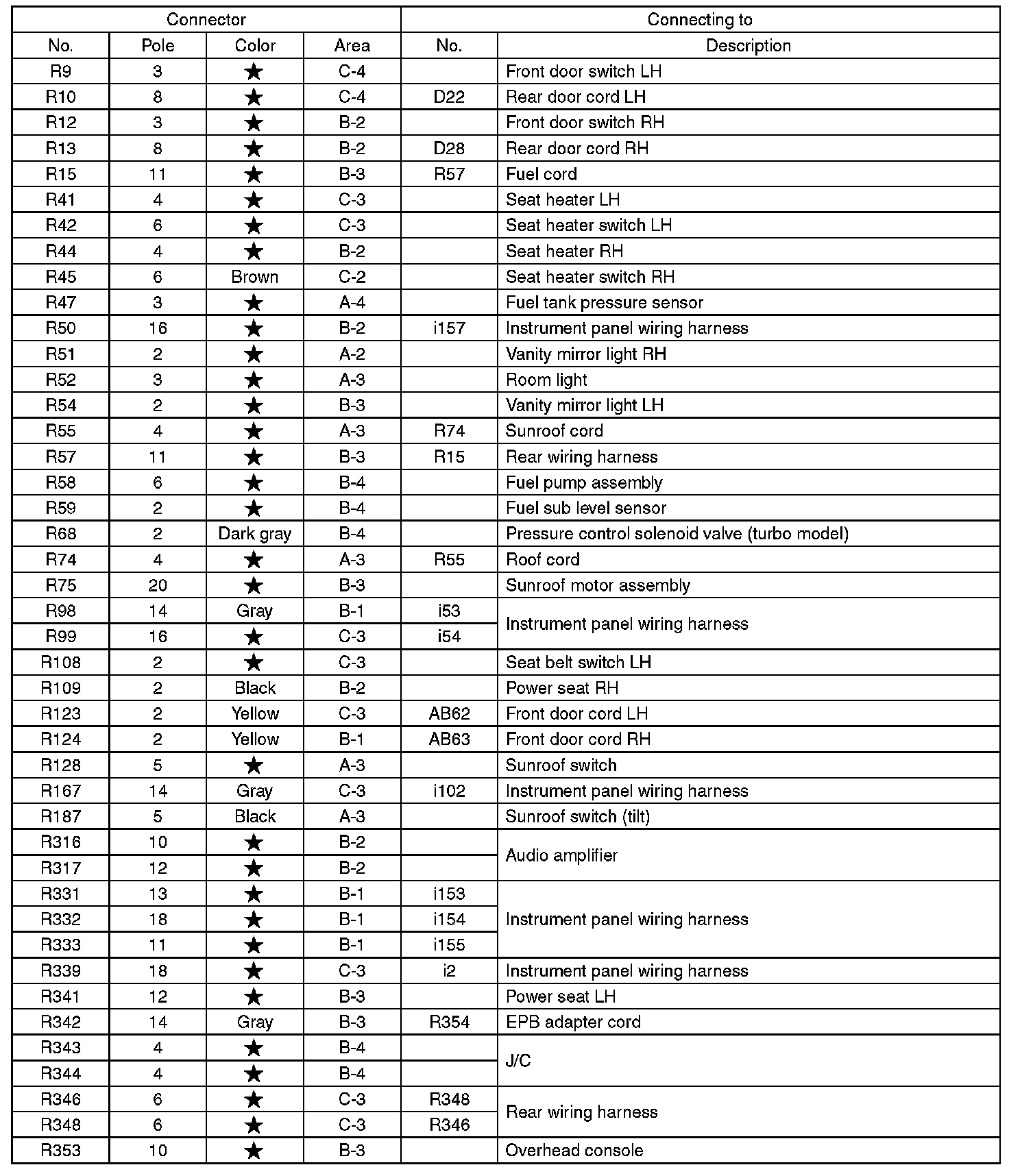

Vehicle identification number: Sedan model 002016 or older
