LH Side

Install in the reverse order of removal.

NOTE: Use new O-rings and seal rings.

Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

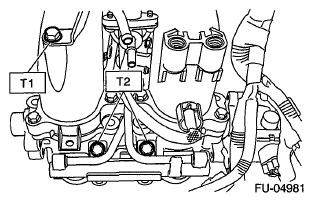

Fig 1: Identifying Fuel Injector Mounting Bolts

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

19 N.m (1.9 kgf-m, 14.0 ft-lb)

Fig 2: Locating Bolts And Intake Manifold Protector LH

Courtesy of SUBARU OF AMERICA, INC.
