Rear Drive Shaft: Assembly

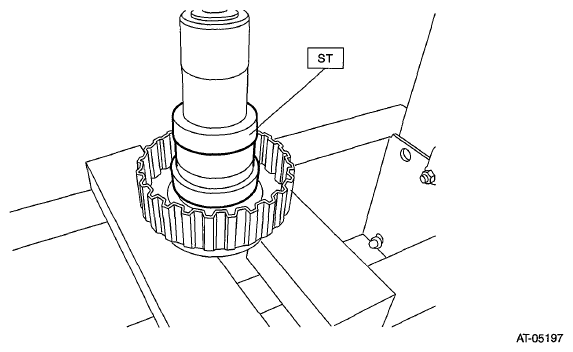

- Using the ST, install the ball bearing.
NOTE:
- Use a new ball bearing.
- Apply CVTF to press-fitting surface of ball bearing.
ST 399513600 INSTALLER
Courtesy of SUBARU OF AMERICA, INC.
