Reduction Driven Gear: Assembly

  1. Using the ST, install the ball bearing to bearing retainer.

    ST 398177700 INSTALLER

    NOTE:
    • Use a new ball bearing.
    • Make sure to install the ball bearing in the right direction.
    • Apply CVTF to the press-fitting area.
      Fig 1: Identifying Ball Bearing On Bearing Retainer
      G06654613Courtesy of SUBARU OF AMERICA, INC.
  2. Using the ST, install the reduction driven gear.

    ST 499277200 INSTALLER

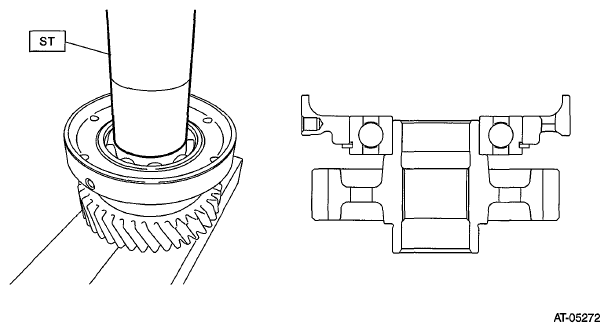

    Fig 2: Identifying Reduction Driven Gear With Installer
    G06654614Courtesy of SUBARU OF AMERICA, INC.
