Relay and Fuse: Location

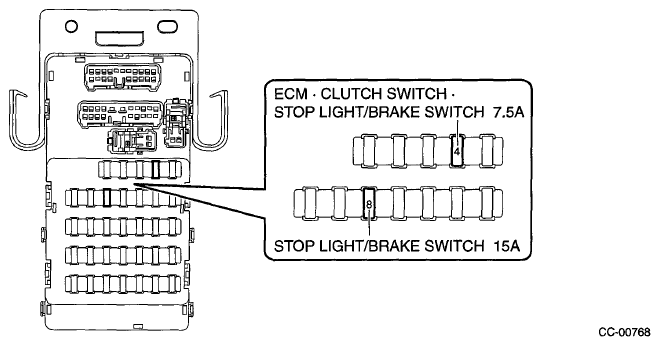

Fig 1: View Of Relay And Fuse Box

Courtesy of SUBARU OF AMERICA, INC.

NOTE: For other related fuses, refer to the wiring diagram. Refer to SYSTEM WIRING DIAGRAMS or SYSTEM WIRING DIAGRAMS .
